1919

“IN THE PAST IT WAS, WE FEAR, the habit of many manufacturers to look upon the British Isles only as their market, and to regard our Overseas Dominions and foreign countries simply in the light of places where some of their surplus stock might find purchasers…The manufacturer should regard the whole world as his market, but chiefly, of course, should he look to the British Empire…Special machines must be designed which are really suitable for the conditions obtaining in the newer and less fully developed countries…The British motor cycle is a very fine mount, entirely suitable for use in this and many other countries, but when the needs of those who live at ‘the back of beyond’, as it were, come to be considered, it will be found that the British machine—excellent as, it is for those purposes for which it was designed—will fall short of perfection, even when provided’ with heavier rims and spokes, larger tyres, and slightly

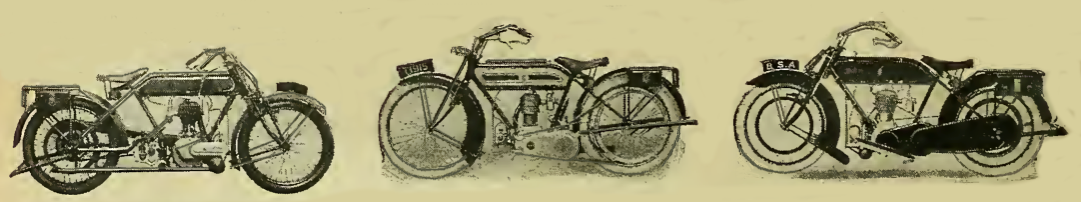

1919 OSEAS SINGLES
“Representative British ‘singles’ which are popular Overseas: The 4hp Norton, 4hp Triumph, and 4¼hp BSA.”

more ground clearance, which items represent the usual alterations in the standard machine to convert it into an Overseas model…During the war the American manufacturers made very great headway not only in foreign countries but in our own Colonies. This was, of course, only to be expected in view of the abnormal conditions which prevailed, and the fact that America did not come into the war for so long a time after the commencement of hostilities. The British manufacturer, therefore, has much ground to recover; and we fear that he will never recover it till he has improved his methods out of all recognition. Let him study the American methods and improve upon them. At present the American is able to offer to British colonists better terms, better service in the vital matter of spares, and a machine which in many respects is more suited to his requirements than the British article…There are hundreds, nay thousands, of men in our Overseas Dominions who from a patriotic feeling alone would buy the British article in preference to any other, provided that they were assured the maker would continue to take a real interest in their machines, and that they could purchase spares without having to send to England and waiting many months for their delivery.”

1919 OSEAS 9TWINS
“Nine British twins suitable for Overseas work: 8hp Sunbeam, 8hp New Imperial, 8hp Matchless, 5-6hp AJS, 5-6hp James, 8hp Enfield, 5-6hp Rover, 6hp New Hudson, 8hp Royal Ruby.”

“THAT OVERSEAS TRADE must be more seriously considered has long been acknowledged by the thinking men in the trade but, in many cases, not only new methods are needed, but new models also. Too long has the British manufacturer done business with a ‘Take it or leave it’ attitude. The popularity of the American machines in the Colonies is proof positive that either our methods or our models—perhaps both—have been inadequate. It seems strange that after the makers had been deaf to the demands of the Overseas markets on such points of ground clearance, it required a buying commission from Russia (which country probably knows less about motor cycles than any other) to induce the makers to adapt their machines to ‘foreign’ requirements. However, quite a number of ‘Russian’ models now exist, which are more suitable for the Overseas trade generally than most machines which were produced before the war…The British maker has a chance now to meet his competitors in the Overseas markets.

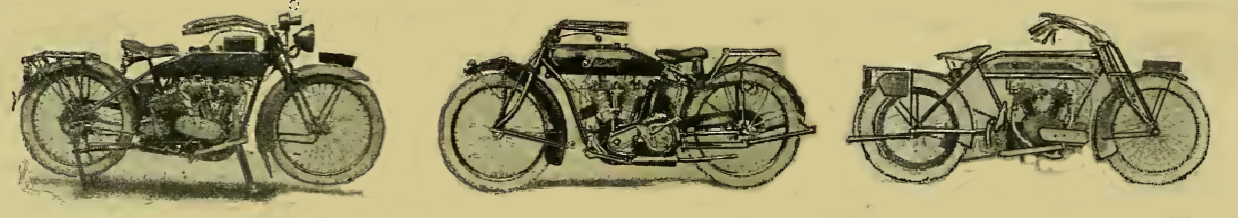

1919 OSEAS 3TWINS
The two main contenders for Britain’s Overseas trade: 7-9hp Harley Davidson and 7-9hp Indian. And “The 6-7hp Overseas, made by a firm specialising in Overseas business.”

BLACKBURNE EXPANDED ITS RANGE to four proprietary engines: two singles (2¾hp 348cc and 4hp 499cc); and two twins (8hp 998cc and 10hp 1,100cc). They all featured detachable heads and outside flywheels; the twin were available with air or water cooling. Three complete bikes were also offered: 2¾hp with two speeds and chain/belt drive; 4hp with three speeds and all-chain drive; and 8hp with three speeds, all-chain drive and QD wheels. They all came with Brampton Biflex forks.

1919 BLACKBURNE
Blackburne works manager JH Holroyd came up with what would come to be known as a concept vehicle based on the firm’s 8hp twin. It was intended for sidecar use.
1919 BLACKBURNE 4HP
“The 4hp 499cc Blackburne: From its solid construction, its excellent finish, and sound design, the 1919 Blackburne should find favour with a large coterie of solo riders at home and abroad.”

THOUSANDS OF MOTOR CYCLISTS responded to a plebiscite in The Motor Cycle designed to establish once and for all the ideal specification for the motor cycle so many veterans had been dreaming of. There were two classes: solo and sidecar. It came as no surprise that the ideal solo was was a 3½hp short-stroke 500cc four-stroke. The flat twin led the field with 40% of the vote, pipping the one-lunger (36%). Third in line was the V-twin (13%) followed by the four-pot (5%) with ‘less conventional types’ such as vertical twins, 90° twins a triples favoured by 6%. The classic 500 was first choice (32.7%), followed by a 550 (21.5%) and 600 (9.8%). The 350 and 650 options both scored 5%; 3.8% voted for a 300 and a hardy few opted for big-twin solos up to 1,100cc. The spec also included a four-speed gearbox, multi-plate cork-insert clutch, all-chain drive, sprung frame, Druid forks, V-rim front brake, drum rear brake and dynamo/battery lights. The ideal sidecar hauler was an 8hp long-stroke 1,000cc four-stroke V-twin with a three-speed gearbox, single dry plsate cork-insert clutch, all-chain drive, sprung frame, Druid forks, contracting front brake, drum rear brake and dynamo/battery lights. A lot of riders wanted 500-600cc dual-purpose bikes suitable for solo or sidecar work. The 1,000cc twin was an easy winner in the sidecar stakes with a 31% vote. Runner up was the 750 (19.85), 600 (7.2%) and 550 (6.8%). Only a few sidecarrists called for engines from 1,000-1,500cc, but 16% favoured the 800-950cc class and 5% were happy with a traditional 3½hp 500. V-twins headed the wish list of sidecar outfit engines at 35%, ahead of flat twins (28%), fours (20%), singles (16%) and ‘other’ (1%). Two-stroke engines weren’t popular: 94% of solo riders and 96% of sidecarrists wanted their strokes to come in fours.  A few forward-thinking types were interested in unit construction and hydraulic or magnetic transmission.

1919 IDEAL SOLO
The ‘ideal’ solo machine—a 3½hp 500cc, four-speed, four-stroke flat twin with all-chain drive.

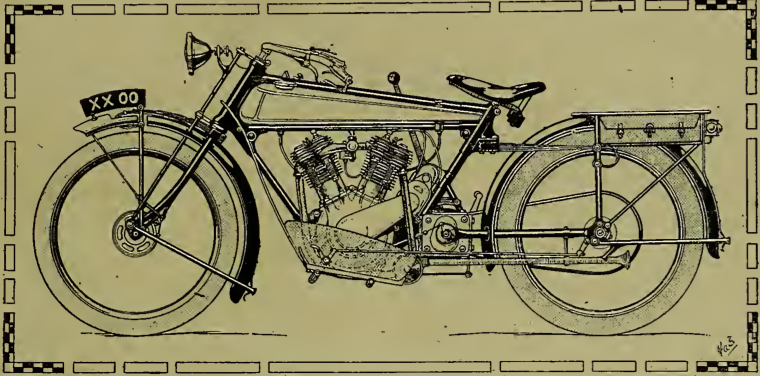

1919 IDEAL SIDECAR
The ‘ideal’ sidecar machine—an 8hp 1,000cc, three-speed vee-twin with all-chain drive.

“ALL SORTS OF CHANGES have been predicted withregard to the motor cycle of the future, but, viewing the outlook both from the points of view of riders and manufacturers, there is no particular reason to think that the old order, as regards the variety of machines produced, will be in any way restricted…stimulated, perhaps, by keener competition…we shall arrive at greater extremes than in the past. We shall have the Rolls-Royce among motor cycles and the Ford—the first-narned being a machine produced for the ‘select few’, and the latter, rendered not only possible but certain by the many changes that have taken place in the manufacturing world, the necessity for increasing output and finding adequate employment for our huge factories, etc, produced for the multitude…Recently I have conversed with manufacturers who are enthusiastic upon concentrating on this model the luxury solo mount…His idea is to produce a really hot stuff flat twin, which is to possess every possible refinement in the way of modern equipment, etc—mechanical lubrication, electric lighting, and a standard of finish which will place it in a class to itself. No expense is to be spared in order to obtain the zenith of comfort, tractability, speed, and durability, and the price of the finished article will most assuredly debar it from anything but a very select market. This price, however, is to include a first-rate system of service and a very generous guarantee—though the latter will automatically become void should the owner attach a sidecar! You buy the machine, if in difficulties you wire for a mechanic—indeed, the Rolls-Royce system is to be followed throughout within reasonable limits—but if you attach a sidecar you become an outlaw, beyond the pale of sympathy and support! It is difficult to prophesy as to what form the Ford of motor cycles will take…whatever cc may be chosen, the Ford motor cycle, like the Ford car, must have something more than cheapness to recommend it. It must be handy, reliable, and foolproof, these features being infinitely more necessary here than in the more costly type, because scores of fools will buy it. Like the Ford car, it must be capable of enduring neglect and hard usage—suitable for commercial requirements and all-weather riding. There is an immense demand for an ultra-cheap lightweight, capable of going anywhere at its own speed, and, above all things, cheap to run.”

1919 ROLLSFORD
“A quantity-produced model of the Ford type and a super de luxe model on Rolls-Royce lines. The cheap proposition  is a single-cylinder, two-stroke, shaft drive, two-speed, flywheel magneto, and the simplest frame construction. There are no limits to the scope for elaborate finish on the aristocratic type, but it is difficult to get beyond the best accepted constructional details.”

“THE SECRETARY OF THE ACU informs us that he greatly regrets the delay which has recently occurred in his office in dealing with queries relating to petrol licences. This has been unavoidable, owing to the fact that the Petrol Controller’s Department has temporarily run out of the correct forms upon which application must be made.”

THE FRENCH MOTOR CYCLE MAGAZINE L’AUTO appealed to French manufacturers to “wake up and turn out machines of the same type as those used by our English and American Allies…If ten people in France buy uncomfortable motor bicycles without change speed gears, to start which they must be acrobats and run 100 yards, there will be 1,000 buyers who will interest themselves in the reliable complete motor cycle constructed for the practical purchaser.”

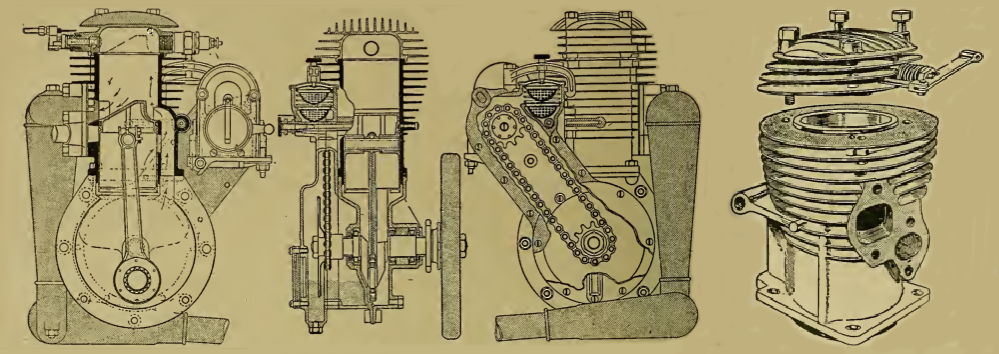

“THE NEW PRECISION ENGINE will be a 350cc two-stroke single-cylinder engine which will develop approximately the same hp as a pre-war 500cc four-stroke. All revolving parts will have roller bearings, the lubrication will be automatic and continuous, and will not require a subsidiary tank for oil storage.”

“ONE OF THE SEVERAL ITALIAN MAKES of motor cycles which has been used extensively by the Italian Army during the war is the Delia Ferrera…We are informed by our Milan correspondent that these machines will be made for the public this year, and that the Italian motor cycle trade—a rapidly growing industry—will make a great effort to capture the greater part of their home trade. This fact, coupled with the probable early arrival in Italy of the new American models, will make it increasingly difficult for the British manufacturer to pick up his pre-war trade, which was very flourishing. Several new firms have amiounced their intention of entering the motor cycle trade and many interesting machines, including at least two flat twin and a two-stroke, are under consideration.”

1919 DELLA FERRERAS
The Della Ferrera 1,006cc twin and 636cc single both used US-made Dixie magnetos, four-speed countershaft gearboxes with two pairs of fully enclosed primary and secondary chains, dry plate clutches, kick-starters, rear drum brakes and rear-hub rubber transmission shock absorbers.

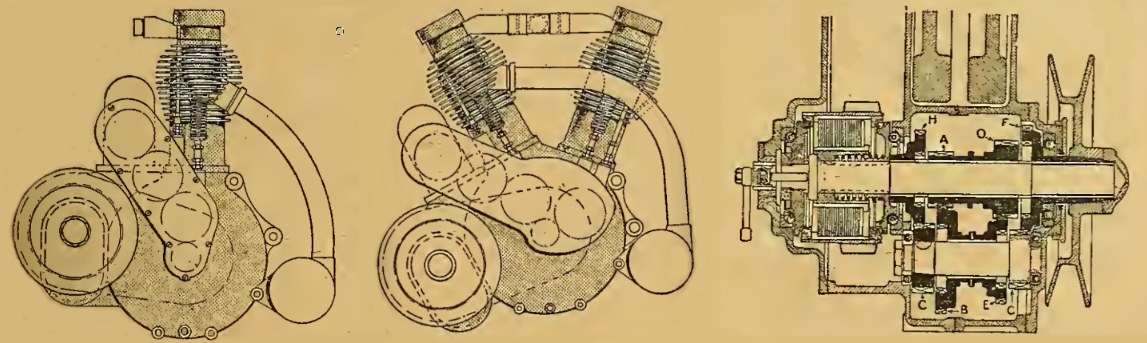

“THE UNIT SYSTEM: The Integral Engine—Gear Box and Belt Drive. In any design of any machine there appear to be three periods. (1) The simple idea developed on crude lines. (2) The fitment of various devices which experience demands as essential, but which are frequently added in a disconnected sort of way. (3) The ‘clean sweep’ of the existing details, a unification of all the essential features, and the embodiment of them in such a way as to make a design thoroughly sound. The motor cycle at present appears to be in stage 2, particuterly in regard to the transmission problem, on which depends perhaps the success of the machine. The need of the change-speed gear has given rise to a remarkably diverse development, but there has been no genuine attempt to establish a modern, unit system applicable to all sizes of machines. The unit system is a step to secure the true alignment of gears, under all conditions, of the change speed gear system. The combination of the unit system with a properly designed belt drive would result in a much lighter machine per hp, especially in the larger machines, and this is a very desirable aim to keep in view.”

IN JANUARY THE MOTOR CYCLE PUBLISHED its first peacetime buyers’ guide, included predicted delivery dates as factories completed government contracts and shifted back to peacetime production. These ranged from a rather smug “Delivery commenced” (Triumph, Excelsior, Douglas) and “January” (Allon, Ariel, LMC), via an optimistic “shortly” (Humber, New Imperial, Norton, Sunbeam) and “in a few weeks” (Velocette), to “Orders carried out on rotation as far as possible” (BSA), and a blunt “May” (ABC). “So far, the AJS has the distinction of being the highest-priced motor cycle,” said the Blue ‘Un, “while the Norton Big 4 leads the singles.” The contenders were: ABC, AJS, Allon, Ariel, Blackburne, British Excelsior, BSA, Douglas, Enfield, Humber, Levis, LMC, Matchless, Metro-Tyler, New Imperial, Norton, P&M, Radco, Royal Ruby, Sparkbrook, Sunbeam, Triumph and Velocette. Within a few weeks they were joined by Abingdon, Bradbury, Calthorpe, Connaught, Coventry Eagle, Diamond, Dot, Ivy, Ixion, James, Rover, Sun-Vitesse and Wooler. The first post-war debutante. Coulson, with a posh address address in Piccadilly London W1, opted for a 2¾hp 341cc four-stroke Blackburne engine. “This will be a mediumweight machine of medium horse-power, and one capable of going anywhere. It has been generally found that a horse-power of 2¾ is the most practical power the motorcyclist can desire. It will not give him excessive speed, but will enable a good average to be kept up and any hill to be climbed…This engine is a small replica of the well-known 3½hp Blackburne engine…combined belt and chain transmission will be fitted, while the gear box will be a two-speed Jardine…the rear portion of the machine will be provided with leaf springing, while the front of the machine is suspended on Druid Mark II forks…the top tube of the frame is of the sloping variety, and the machine has a distinctly racy appearance…the stand is fitted just behind the bottom bracket on which the countershaft Albion two-speed gear box is suspended. It is being brought out by Mr FA Coulson, formerly managing director of the Wooler Engineering Co, and it is expected that between 750 and 1,000 machines will be made during 1919. Already, half this number is booked up.”

1919 COULSON
The Coulson lightweight had a Blackburne engine and what came to be called a centre stand.

BY THE START OF 1919 PETROL was back on the civilian market. Licences were still required for the purchase of ‘motor spirit’ but these were now readily available to all. Rationing had not yet disappeared; the allowance was six gallons a month for solos and 10 gallons for combos, or up to 16 gallons for business purposes. The Petrol Pool Board, which had co-ordinated fuel supplies, was closed down at the end of January but the Board of Trade retained its price control over petrol and petrol products.

“THE PUBLIC SCHOOLS MOTOR CYCLING CLUB: Applications for membership are still reaching the temporary hon sec Lt HP Browning, RUA, AA Gun Station, Virginia Water, Surrey. Col Lindsay Lloyd has consented to be president of the club, and in a few months’ time it is hoped that a sufficient number of applications will have been received to enable Mr Browning to call a general meeting and restart the club. Mr Browning will be glad to hear from members of the leading Public Schools who would care to join the club, and it is hoped by the Easter holidays to have the club completely re-established and a programme formed.”

“A MOTOR CYCLE CLUB FOR EALING AND DISTRICT: It is proposed to form a motor cycling club for Ealing and District. It is the intention of the promoters to maintain a vigorous and novel programme, including an entirely new form of inter-club team competition, which, it is hoped, will greatly stimulate club activity. The social side will be well catered for, the club having had the offer of the use of a large club room gratis. In this connection, club runs.will be eagerly looked forward to after the enforced idleness of the past four years. These runs will be combined with a social event, and will give members an object in riding. Lady riders are invited to join, for it is felt that the lady members will be well represented by ex-RAF motor cyclists and others. The club will be affiliated to the Auto Cycle Union, whereby members will become entitled to the privileges conferred by that body. Every rider who is interested should write to Mr S. PL Brown, 25, Ormiston Road, Shepherd’s Bush, W12.”

1919 OWLER BAR MEET
“A meet of motor cyclists on a recent Sunday at Owler Bar. This rendezvous was a popular one for Sheffield riders before the war.”

BELGIAN BICYCLE AND MOTOR CYCLE manufacturers formed a society for their protection and to further the manufacture and export of Belgian machines.”

“SIR,—MR HARRY WALKER, A WELL-KNOWN representative of British interests in the motor trade in Barcelona, is now on his way over to this country. Mr Walker is particularly anxious that British manufacturers should make a prominent exhibition of their productions at the motor car and motor cycle show to be held at Barcelona next March, to which you referred on December 25th last, in face of the certain and intense competition of manufacturers in enemy countries. Spain is truly neutral in the matter of commerce, and the manufacturer who shows most enterprise—be he British, Austrian, or German—has an equally favourable opportunity of securing the business of the country.
THE SPHINX MANUFACTURING CO”

“SIR,—I AM SENDING A FEW SUGGESTIONS made by a few knuts round the fire one evening during a discussion on ‘Which type?’ I have tried to picture the sort of type it would be if some of them were adopted. Unfortunately, I have had to leave more than half of these comforts out, but I have tried to show the principal ones. You will notice that the big single seems to be a favourite, with its long exhaust pipe, which has a joint in it to allow of easy cornering; also there is a small wheel on the handle-bars for the same purpose. The periscope would be useful, as well as necessary. A good searchlight must be fitted; this one takes 12 amps 60 volts, similar to those we use in France. The generator is fitted at the rear of engine, under the oil tank. The machine is geared 1-4, not 4-1, so as to be able to get a good burst of speed. The back tyre should also lend itself to this end, and also to ensure good hill-climbing. Overhead valves are fitted, also overhead carburetter. The question of petrol and oil capacity seems difficult, but this is a detail. It is a free engine, and there is possibly a kick starter on the other side. You must excuse us getting like this, but we have not had a crash for two and a half years, and we are beginning to dream dreams. Still, we are thankful for small mercies, as the ‘Blue ‘Un’ turns up week by week, so we have our rides on paper.
(CPL) R CHILDS, RE.”

1919 KNUTBIKE
After four years of war the boys had a clear idea of what they wanted.

RIDER TROWARD & CO OF HAMPSTEAD High Street, London N3 boasted in an advert: “Remember our three terms of dealing, of which not one has yet been emulated by any other firm: (a) Three days’ free trial. Your money back at the end if not satisfied. (b) Three weeks’ option of exchange. Your machine taken back, and full price allowed, if wished, in exchange for anything else. (c) Three months’ guarantee—the same guarantee that the makers give.”

“PRICES OF MOTOR CYCLES GENERALLY ARE 25% in advance of those of 1914, and there is a tendency among motor cyclists to consider them too high. Without any desire to make a plea of justification, we are, nevertheless, constrained to consider the present position in no way inconsistent with the times. As much as we wish to see motor cycles offered at pre-war prices, we are afraid it is more than can be expected…we know material and labour are up at least 100%…everything considered it does not appear that a 25% increase over pre-war prices is at all exorbitant, especially when it is remembered that in purchasing everything today the British public is called upon to pay advances in price considerably more than 25%.”

“IT MAY BE PERFECTLY TRUE,” IXION remarked, “that an up-to-date engine of 350cc or so with a suitable gear box will do its mile a minute and climb any hill, but until human nature is regenerated some of us will ask for more than this. An ex-RAF pilot, accustomed to 150mph, will not be thrilled by slamming open his throttle with about 3½hp loaded up to about 4cwt. There will always be a small but select market for a sheer ‘hogbus’, capable of climbing at terrific speed and of furious acceleration on the flat. We have yet to see an ideal mount of this character. In theory it should add its special hallmarks to the usual desiderata of light weight, comfort, and reliability. In practice such speedirons are generally very uncomfortable and absurdly heavy. They are not unreliable in the ordinary sense of the word; but like most high-bred animals they are flighty and capricious. The 60 or 70mph which may represent their best gait is not always on tap. I am not sure that owners want it to be. In this class at any rate the rider rather enjoys chasing round in search of a lost 100rpm or so. Beyond question the single-cylinder types of ‘hogbus’ have been worked up to a higher pitch than their twin-cylinder rivals. The TT Triumph, Rudge, and Norton may challenge comparison with any invaders in this class. But where is the standardised 7hp British twin hogiron? I know some very fascinating ohv big JAPs have been put out by various makers, but I think the market would stand a little pushing in such machines if they were developed on the lines indicated. Several American machines, especially the short-wheelbase Henderson, were attracting many of our riders in 1914. I admit there are distinct objections to the unrestricted sale of very fast machines, but if they are going to be sold let them be British.”

“HUNDREDS OF WAR-WORN AND DISCARDED MOTOR CYCLES, fit and unfit, are lying on Kempton Park Racecourse more or less exposed to the weather, illustrating the terrible wastage of material, labour, and money which war inevitably forces upon a people…lorries packed with damaged motor cycles are still arriving…two-thirds of the number are usually fit for repair, and of these many—mostly of non-standard makes—are placed in the motor cycle sales park. Non-standard makes are those which are neither Douglases, Triumphs, P&Ms, nor Clynos, but some such types as Sunbeams, AJSs, Rudges, Rovers, and other motor cycles made by well-known manufacturers which have been on home service…New motor cycles in crates, ready for distribution, are placed under cover in open-sided sheds, and are not too well protected from the weather, as it can be seen that the outside machines are exposed to driving rain or snow, and, even though grease is liberally applied to the bright parts, some evidences of rust are apparent. Machines which have been repaired in the army workshops are placed in crates and covered with tarpaulins. Motor cycles awaiting repair are in an open field, and as many as possible are placed under tarpaulins, but a vast number of unfits are without any protection whatever. It is the sight of this huge number of motor bicycles left day and night, winter and summer, exposed to all the vagaries of an Enghsh climate, that has led to so much criticism—in defence of this it is argued that most of them have been

1919 DUGGIE RESTORED
“As they reach the depot and as they emerge: A Douglas as it is clumped at a salvage repair shop in the West ot England, and one of the repaired machines—rebuilt, enamelled, equipped, and tested for the road.”

rescued from the battlefields of Flanders and elsewhere, where they have been exposed to rains other than and besides those of heaven. They have often been literally buried in the ground,and so a month or two’s extra exposure will do them no further harm. Unfit motor cycles, as they are called, are those which have suffered severe accidents, have been run over and ditched, or have been hit and severely damaged by shell or machine-gun fire…The disposal of army motor cycles is in the hands of the Surplus Government Property Disposal Board, 6, St James’s Square, London, SW1…machines in the sales park include 24 fit Rudges, 86 fit Zeniths, and numerous unfit machines, of which we may mention 17 Sunbeams 96 Scott sc combinations, 36 Scott solo machines, 99 Zeniths, 23 Premiers, and 33 Rovers.” The question is—when will the Government move? The market is excellent now; second-hand prices are higher than they ever will be again, and, despite arguments to the contrary, the goods are depreciating. A few months hence, when new motor cycles will be available, second-hand prices may drop, so no useful purpose can be served by further delay…the motor cycles are bought from funds supplied by the taxpayer, and he rightly demands that they should be disposed of in the most advantageous manner. The Disposal Board is alive to what is required, but can get no answer from the Ministry of Supply, and so it seems that this body is really to blame.

1919 SCRAP WD BIKES
Left: “Unfit Army motor cycles, the majority of which will require a great amount of work before they are fit for the road. The machines were left in the state shown, the tarpaulins inadequate to protect them from wind and weather.” Right: “A shell-battered motor cycle which might well form one of the exhibits in the projected National War Museum.”

“THE PRESSED STEEL MOTOR CYCLE FRAME has long been regarded as an ultimate development, but until recently there has been no particular tendency in that direction, in spite of the many advantages which, theoretically, it presents. We have, however, foreseen that the war-time experience of several of our motor cycle manufacturers with engine plates for aeroplanes would influence motor cycle frame design. Therefore it is of especial interest to find the makers of the Diamond motor cycles, DFM Engineering Co, Ltd, of Wolverhampton, well advanced in the production of the first models of a genuine tubeless frame constructed entirely of steel pressings…the engine unit also is unique. The frame consists of two side plates carried right through from the head, downwards, to form part of the engine carrier, and, upwards, over the back wheel, to form strengthening valances on the back mudguard. The two plates are connected behind the head by (1) a segmental plate covering the petrol tank, (2) by the tank itself when in position, (3) by a removable plate over the engine, and again (4) by the back mudguard. The whole is completely stiffened by the engine unit baseplate, which is bolted in from the under side. The engine unit is complete in itself so complete, in fact, that when the chain and petrol pipe are disconnected and the baseplate unbolted, it can be entirely removed from the frame, carrying with it the two-speed gear box, magneto, silencer, and carburetter. The engine is of the four-stroke type and of 427cc capacity, and is placed horizontally with side-by-side valves on top of the cylinder. The machine will be suitable for riders of either sex without alteration, and will be an undoubted advance on the point of cleanliness. The engine is completely shielded from the rider, and an ample dashboard and leg shields can easily be fitted, rendering the machine as nearly weatherproof as possible.”

1919 PRESSED DIAMOND
“The frame design of the new Diamond motor cycle. Pressed steel is entirely to supersede steel tubing in its construction.”  [The Diamond bears an uncanny resemblance to the LE Velocette that was in production from 1948-70 and was the archetypal ‘Everyman’ motor cycle].
“MR FW BARNES, WHOSE NAME IS FAMILIAR to all who follow the sport and pastime, seems to have gone beyond the ‘idea’ stage, and has succeeded in designing a frame which, while being entirely unorthodox so far as method of construction is concerned, is by no means unsightly. The main or body portion of the frame is formed of two metal stampings welded on their adjacent edges. This portion is shaped at the front and rear ends to provide seatings for the two diagonal members of the frame, at the lower end of which the engine is intended to be fixed. The fore bracket is formed of a metal plate bent to form the steering head. The rear bracket is bent around the rear end of the tank or body portion in a similar way. The front fork, too, is intended to be of pressed steel con- struction, while the rear stays may follow the same principles.”

1919 PRESSED STEEL
Freddy Barnes of Zenith, who already had the radical Bicar and Gradua transmission under his belt, patented a pressed-steel frame.

“MR PA FISKER, OF COPENHAGEN, Has undoubtedly gone a long way towards achieving the embodiment of the ideas of super-refinement enthusiasts in his patented motor cycle design. The principal features of the construction are the duplex pressed steel members carrying file engine and connecting the steering head and the rear wheel stays. The saddle is supported by the steel tank, which is attached to the steering head at one end, and the main frame plates at the otlier. The springing is of a decidedly novel type, comprising long lever arms and helical springs. The extra saddle, which is fitted in place of the more usnal carrier, is also sprung. A great deal of attention has also been paid to mudguarding. The pressed members are stiffened laterally by wide footplates extending the whole length of the engine The engine rests on another plate, which forms an undershield, so that it is practically enclosed in a mudproof cradle. A four-cylinder engine is shown fitted with a simple type of totally-enclosed shaft and bevel drive.”

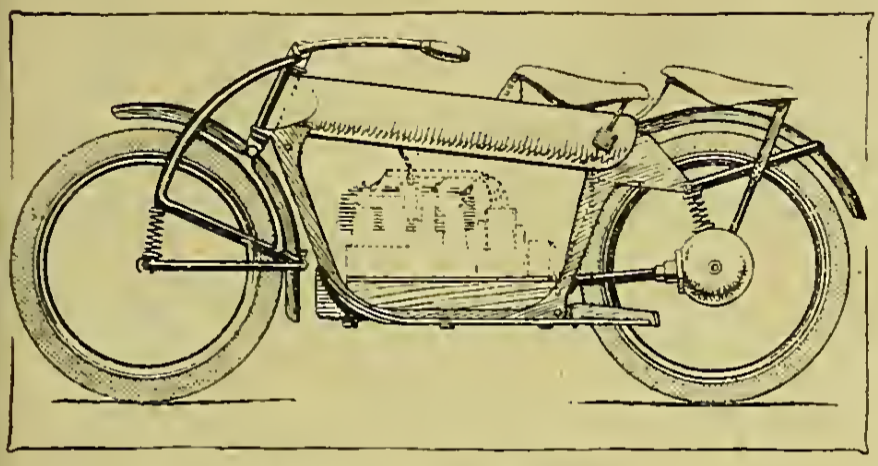

1919 DANISH PRESSED
“A unique Continental design…the principle has much to recommend it.”
1919 PRESSED STEEL LETTER
Just to put the record straight and enthusiast named Sarginson wrote in to remind the editor that in 1906 he and his chum Pilkington had won second prize in The Motor Cycle’s Improvement Competition with this design for a pressed-steel frame.
1919 SMITH PRESSED
Private RM Smith was awaiting demob in France when he sent The Motor Cycle his idea of “an ideal pressed steel frame…The only drawback is that the rider’s feet are inside the body, but this might be overcome by fitting a stand worked by a lever, so as to keep the machine upright when it stops.”
1919 BLACKPRINCE
Pressed steel was to be used to good effect in the Black Prince, designed by EW Cameron of Doncaster. The frame comprised side panels connected by a sub-frame; the fuel tank was to be a structural member. Even the rear suspenion used pressed steel in the form of conical volute springs. The engine design was radical: a two-stroke 345cc flat twin with a shared combustion chamber and a single sparking plug; it was said to rev to 4,000rpm.

“ACCORDING TO OIL NEWS, a petrol substitute has been discovered in Washington which, it is claimed, has greater thermal efficiency than the best petrol, and can be produced at less than half the present price…It is claimed that the new fuel is odourless, tasteless, and non-corrosive, leaves less carbon deposit than petrol, requires less air for combustion, and develops greater horse-power. The ingredients are cheap, and can be readily obtained, while the process of manufacture is simple.”

“NEW REX MODELS: Two new models will shortly be placed on the market by the old-established Rex Co. These will be a 4hp single with three-speed gear and chain-cum-belt transmission, and an 8hp twin sidecar with all-chain drive. Both models will embody several new features.”

“WE HAVE RECEIVED ADVANCE particulars of the Bradbury Peace models. These will include a 2¾hp 350cc lightweight four-stroke single, with two-speed countershaft gear and clutch with chain-cum-belt transmission. The 4hp single and 6hp twin are similar to the pre-war models.”

“KEMPTON PARK IS NOT THE ONLY PLACE where disused Army motor cycles are awaiting disposal. A correspondent states that there are many at Grove Park, near Bromley, but here, unlike those at Kempton, the majority are under cover.”

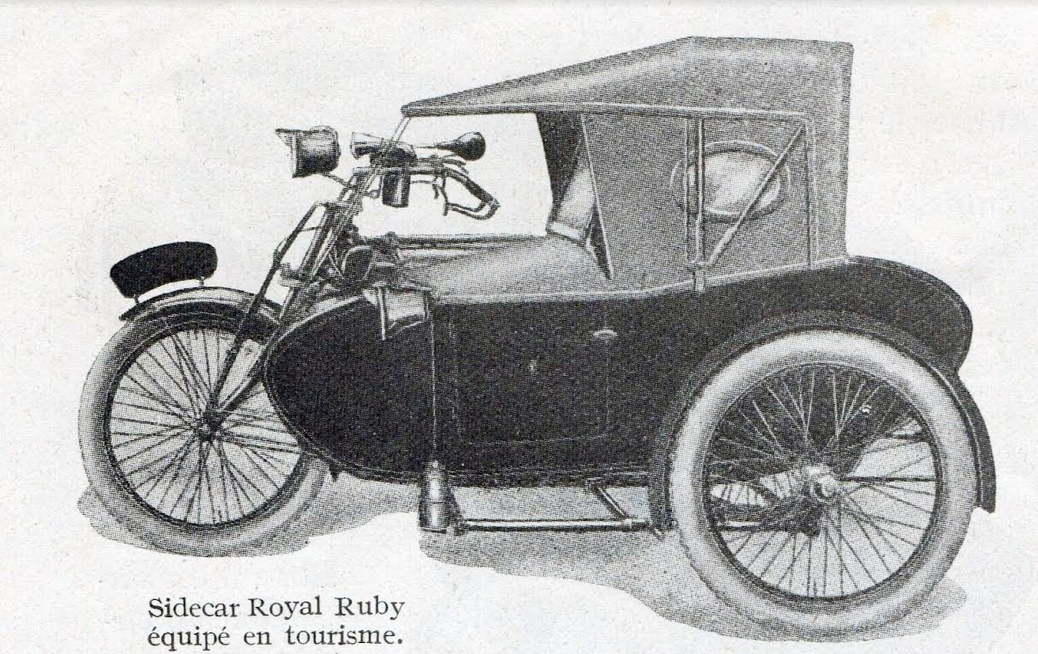

1919 ROYAL RUBY
Royal Ruby lost no time in getting back to full-time motor cycle production with its well-established two-stroke tiddler and an 8hp sidecar model based on the warhorse it produced for the Russians. The olive drab finish was replaced with a striking black red and gold-striped livery. Ample mudguards combined with large belly plates to keep the rider cleanish; the chains were fully enclosed and the stand could be locked down to deter thievery.

“NOT LONG AGO,” IXION RECALLED, I saw an aero engine, on which a very simple provision against air leaks at induction joints was employed. The pipes bolted to each inlet valve port were ‘stubs’, cut off short; and they were connected to the main carburetter manifold by rubber insertions, tightened round the pipe-ends by strong band clips. This flexible joint is cheap to make and overrules all small errors of alignment. I think it is worth adoption on certain multi-cylinder motor cycles, which have, bad reputations in this respect.”

“NOT A HINT: IXION wishes to convey his best thanks to ‘An Old Reader’ who sent him a box of cigarettes anonymously.”

“BETTER EQUIPMENT: THERE IS A decided tendency among manufacturers to include better equipment in the specifications of their new models, and the policy of building down to a price appears to be entirely disappearing. Larger tyres and better saddles are almost general on machines which before the war were regarded as cheap lightweights.”

1919 MAGMOUNTS
Magneto mounting positions and drives—chains, gears or shafts. Top row from left: Orbit, Diamond, Rover, Puch, “American single”, Quadrant, Pope. Middle row: Bat, Star, Grandex, Velocette, Triumph, Evans, Rudge. Bottom row: “American flat twin”, Rex, American Excelsior, New Hudson, “An eccentric (!) drive suggested by a reader”, Humber. “It would seem that the magneto has now reached a degree of weatherproofness that, from a mechanical standpoint, it is no longer necessary to consider its position.”

“WE ARE ASKED TO NAME THE INVENTOR of the exhaust valve lifter. This was Mr AJ Wilson, who, as a motor journalist, is known as ‘Faed’, Incidentally, Mr Wilson was author of the first edition of Motor Cycles and How to Manage Them, published from these offices.”

“MR DR O’DONOVAN, THE WELL-KNOWN speed specialist, is again in charge of the Norton Motors testing department, and he will be personally responsible for the riding in the firm’s engine speed tests on the Brooklands track. The certificate of the Brooklands Auto Racing Club will be given with each of the special engines for TT and BRS models, guaranteeing that the engine has exceeded 75mph for a distance of one kilometre. We are assured that there is just sufficient of the track left with a rideable surface to enable this testing to be carried out.”

“PRECISION ENGINES FOR 1919 are now announced. Two models are being introduced. These are an 8hp twin following the general lines of the 1915 model, but with improved and silent valve gear, new exhaust valve lifter mechanism, and roller big ends; and a 3½hp single- cylinder two-stroke of 350cc, with many unique features, including roller big end and main bearings, and automatic lubrication. We hope to describe both models shortly.”

1919 POST RIDER
“In spite of The thrills and excitement aviation offers, Lt Owen Edmunds, who made the first official mail flight between London and Paris, still retains his affection for the motor cycle. His mount is a 5-6hp overhead valve NUT-JAP, with three-speed hub gear. Lt Edmunds has made over 200 Channel flights.”

1919 CLUB NEWS AWAT THE END OF JANUARY The Motor Cycle relaunched the Club News section that had been suspended ‘for the duration’. The last club news had concerned the proportion of members from various clubs who had flocked to the colours. With the survivors coming home committees were reforming and plans were being laid. Heading the list, quite rightly, was The Motor Cycling Club: “This year’s programme will include a despatch riders’ trial, the opening run, and the annual London-Edinburgh run, but further news of the club’s activities will be given later.” Chester &DMCC: “This club has not yet been reorganised, as most of its members are still away on military duty, including the secretary, Mr R Dutton, who is in East Africa.” Birmingham MCC: “The Birmingham MC Club’s 1919 programme promises to be a very attractive one. It is proposed that the local clubs may reopen motor cycling competitions by having an inter-club trial.” Mansfield &DMCC: “Energetic motor cyclists in the Mansfield district should get together to revive the local club. The late secretary, Mr C Evinson, of the Portland Motor Co, advises us that he will not have time to devote to it.” Dublin &DMCC: “Mr WH Freeman is again holding office as hon sec, and four road events for 1919 have already been decided upon. A reliability trial for the Dunlop cup will be held on Easter Monday, another trial on Whit-Monday, a twenty-fours trial at the end of June, and a two days’ trial on the Saturday and Monday of August Bank Holiday”. Liverpool MC Redivivus: “We are pleased to note that the trustees of the Liverpool Motor Club have decided to resume activities by holding a public meeting at 7.30pm on February 5th at St. George’s Restaurant, Redcross Street, Liverpool. Other local clubs would do well to follow their example, as there are so many problems of vital importance to the motoring community at the present time that can be better dealt with collectively.” Bolton &DMC: “The Bolton and District Motor Club, which, in common with other motor clubs throughout the country, was compelled to suspend its activities in the early days of the war, is to be reorganised almost immediately. The first general meeting for the new season is arranged to be held at headquarters, the Swan Hotel, Bolton, on Thursday, February 13th, at 8pm prompt. Other intending members would greatly assist the secretary by paying their subscriptions to him at 215, St George’s Road, previous to the general meeting.” Woolwich, Plumstead, &DMCC: ”There is a strong feeling amongst the members of the Woolwich Club that active operations should start as early as possible, and a ‘victory’ competition is among the events being planned.” Plymouth &DMCC: “Secretary TDA Chapman advises us that at present the majority of the Plymouth Club members are scattered all over the world in His Majesty’s Forces. The revival of this club is not likely to be so soon as its ex-members would desire.” National Motor Cyclists’ Fuel Union: “On Tuesday evening, January 21st, a very successful and well attended meeting of the Portsmouth Branch was held at headquarters, Blue Anchor Hotel, Kingston Cross. The newly elected chairman, Mr Cheyne, spoke of the future business and social prospects of the club, the evening terminating with a smoking concert. Sheffield & District: “We hear that the Sheffield NMCFU intends providing co-operative garages in different parts of the town for its members, built on similar principles to those described in our Reconstruction Number of January 2nd. Despatch Riders’ Club: “A club has been formed to perpetuate the comradeship of motor cyclists who have been RE despatch riders. Such riders are invited to communicate with the temporary hon sec, Signal Service Despatch Riders’ Club, RE Depot, Wellingborough. Auto Cycle Union: “The annual general meeting of the ACU will be held at Birmingham on Saturday afternoon, March 22nd, and will be followed by a conference of members of affiliated clubs and local motor cyclists.” Federation of Belgian Motor Cyclists: A preliminary meeting will be held shortly, and every effort will be made to revive motor cycling. One of the evils the Federation is out to combat is the carrying of two enormous number plates, which Belgian motor cyclists find a great inconvenience, and every effort is being made to adopt the British system of numbering.” Ladies’ Club in Coventry: “It is thought that there are sufficient lady motor cyclists in the Coventry district to form the nucleus of a ladies’ Club, and several keen riders of the gentler sex are desirous of forming such a club. Those interested are invited to communicate with Mrs H Williams, 76, Sir Thomas White’s Road, Coventry. Cork &DMCC: “A general meeting for the election, of officers for the coming season is fixed for February 5th. It is anticipated that a full programme of events will be possible during 1919. Two members of tlie club have recently appeared in the Gaztttt— Capt JW Payne, of the Connaughts, has been awarded the Military Cross, and Capt WJ Morrogh, MC, of the Northumberland Fusiliers, the Croix de Guerre. Capt LD Humphreys, the first Cork motor cyclist to join up, was taken prisoner in the first months of the war, and has now arrived home.” The bulletin also included news from the Essex MC, Bristol Wheelers Cycling Club, Nottingham &DMCC, The British’ Motor Cycle Racing Club, Hull &DMCC, Wath &DMCC, Eastern Counties MC, NMC Fuel Union, The Cyclecar Club, York &DMCC and Middlesbrough &DMCC.

“IT IS A PSYCHOLOGICAL FACT that the individual motor cyclist is almost always most apathetic concerning that which affects motor cyclists as a whole, yet when several are banded together to form a club, there is none more ready to stand up for his rights. He forms definite opinions on matters of the moment, and he is not slow to proclaim them. He is all for the common good. In a club the trend of popular feeling can always be gauged. The reserved man finds a mouthpiece in the club secretary, and thus the technical press can translate his wants and pass them on to the legislator and the manufacturer. The present time is the one fraught with the greatest possibilities and consequences to the motoring community as a whole, and it is only the intensely united action of the individuals and the big associations which represent them that will secure them a hearing in the settlement of affairs which concern them so closely. Here, then, is the opportunity of the clubs. What is to prevent them getting into action at once, picking up the broken threads of 1914? We know only too well how many gallant fellows, the mainstay of their clubs, have laid down their lives in the great cause. Some clubs are almost extinct. Yet the aggregate number of motor cycle enthusiasts is surely greater than in the days before the war. What is wanted is a little recruiting among the newly-fledged devotees of the pastime, more publicity and more enthusiasm among the older club members. There should be no need to await the return of all the aforetime members—there is plenty of material to hand, and there is much to be done in which the clubs can be a vital power if they will. But they must act at once. The most vital question before the motoring world is at present the fuel question. It is most undesirable that the great petrol companies should obtain the control of the home-produced fuel, benzole, which owing to their organisation and means of distribution is a possibility to be considered and resisted by all motorists.”

1919 FRENCH TAX DISC
French motor cycles were required to display rather stylish tax discs. The Motor Cycle explained: “This plate is the official receipt for the annual tax, and there is therefore no doubt, about it having been paid. A plateless machine is an advertisement of non-payment.” France also imposed a 70% tax on British vehicles; French manufacturers said they would need this protection for at least another year.

“IN FUTURE THE MANUFACTURE OF BSA motor cycles and bicycles will be run by a company separate from the Birmingham Small Arms Co, which will be known as BSA Cycles, Ltd. Mr A Hyde, the manager of the cycle and motor cycle departments of the parent concern, will be managing director. Now that the Government contracts are about to terminate, the whole of the enormous surplus factory space and plant will be adapted to the construction of cycles and motor cycles on a scale hitherto unprecedented.”

“WD SURPLUS STOCK UNDER THE HAMMER: The first sale of Government motor cycles took place at Aldridges on the afternoon of the 22nd inst. Altogether nineteen machines were sold, consisting of Rudge-Whitworths, Zeniths, Rovers, and Scotts. There was a large number of bidders, consisting chiefly of dealers, but a number of young officers in khaki were conspicuous in the crowd…Among the surplus machines at Kempton Park are a number of the following makes: Lea-Francis, AJS, Enfield 3 and 6hp, NUT-JAP, Singer, Premier, Matchless, Bat, Rex, Regal, Motosacoche, Levis, P&M, Sunbeam, and Bradbury. A large number were privately owned machines which were taken over by the Government in 1914.”

1919 AUCTION SCOTTS
The auction included ex-Army Scotts, “which were not in particularly good condition”.

A REPORT ON THE TREATMENT of worn out warhorses must have dissuaded many potential buyers from attending future sales: “The motor cycles are despatched from the port of arrival in open trucks, packed cheek by jowl, fifteen to twenty at a time, and, as a result of this, the jolting of the journey and shunting, etc, they present an almost inextricable mass to the men whose duty it is to transfer them on to the familiar 3-ton lorry this process is not usually effected without sundry ruthless and sudden removals of such projections as handle-bars, oil pump handles, foot-rests, and carriers; indeed, it is remarkable how efficaciously ‘stream-lining’ may be carried out by means of a viciously applied ‘ammunition’ boot! The machines are next dumped (literally!) in an ‘unfit vehicles’ park by a receiving staff, who examine and classify the machines, and also remove the valuable ‘portable property’ such as magnetos, carburetters, and saddles. It may be that familiarity breeds contempt, or maybe sheer discomfort in handling rusty, jagged, broken- backed crocks (often under the bitterest atmospheric conditions), which is the cause of much damage, for if at all refractory or awkward it is no uncommon thing for machines to be flung bodily from the lorries to the ground. Undoubtedly much of the abuse and man-handling is due to the inefficiency of the arrangements for dealing with motor cycles in quantities, and the men who have no better lifting or transporting tackle than their hands are scarcely to be blamed. The damage done to machines between the actual moment of becoming unserviceable until the time of entry into the repair shops is not to be conceived by those who have not actually seen and dealt with a consignment of two or three thousand crocks, and it is safe to say that the ordinary amateur with a penchant for tinkering who buys a damaged army machine will find his purchase dear at any price.”

1919 DR SKETCH
“A page from a DR’s sketch book. A scene familiar to many motor cyclists who have served in France.”

“WHEN COMPELLED TO TRAVEL on a public conveyance in London, eschew tubes and taxis, and mount a ‘bus,” Ixion advised, “selecting an off-side seat on the top. When seated, do not immerse yourself in John Bull, but use your eyes. I had a good pennyworth of smiles by this cheap method the other day—as good as any Chaplin film. It was pitch dark, and the grease was of the greasiest. As we drew abreast of Selfridge’s, I heard a terrific squawking from a mechorn, and bending over perceived the ghastliest expression of abject terror I have ever seen on a human countenance. An RAF sidecar was towing a subaltern on a disabled motor bicycle through the thick traffic by a rope about ten yards long. Nearing Marble Arch a vortex of blasphemy steamed up into a shocked sky from the intersecting point of all the traffic lines. There squatted a very frightened officer in a very small car. The bulbs of his side lamps emitted pink pin points of radiance of a cp equal to the expiring wartime match. The police were deciding what he ought to do: the rest of Ihe traffic was piously declaring where he ought to be. A good penn’orth!”

“THE FAMOUS LIBERTY AERO ENGINE has no magnetos,” Ixion wrote, “but is equipped with coil and accumulator ignition of a very interesting type, which is practically as reliable in use as a magneto. Its special features consist of duplicate main contact breakers and a generator which perpetually renews the youth of the accumulator. As the contact breakersi are in duplicate, troubles and adjustments are infrequent. No sane motor cyclist desires a better ignition than the magneto, save only in respect of starting where it compares most unfavourably with the coil and accumulator; the latter gives its best spark at minimum speed, whereas the magneto gives its worst. But if we are going to plump for electric lighting, as seems certain, the situation is perceptibly altered. One and the same battery-cum-generator outfit may at some future date cater for both ignition and light? When the electrical trade offers us such an outfit, plus its special starting facilities, plus the reliability for which the magneto is famous, we can only make one reply.”

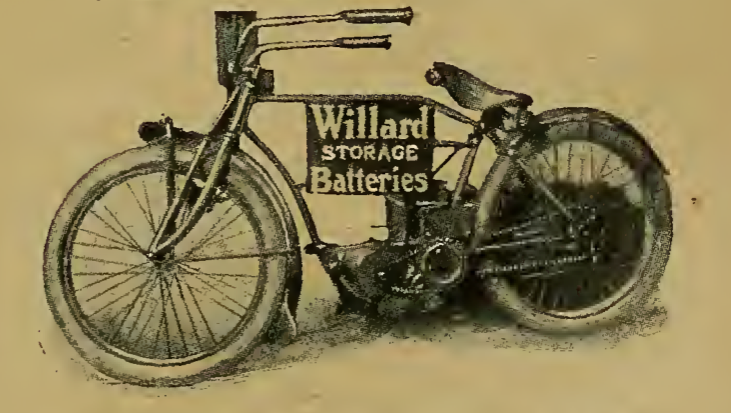

1919 ELECTRIC COMBO
“An electric bicycle used with a delivery sidecar by the Wiilard Storage Battery Service in Pendleton, Ore, USA. An old motor cycle, sans engine, and a ‘starter’ from an automobile, with a storage battery, form this interesting combination.”

SIR,—SINCE JULY, 1914, I HAVE OWNED the following: Quadrant, Triumph, Warne cycle car, 1914 6hp Royal Enfield, Douglas, 1915 6 hp Enfield, and, again, a 2¾hp Douglas (my present mount). I have been a rider continuously since 1903, and on looking back over four years of war one wonders how we have kept on the road at all. My official duties have given me many rough journeys, and, like many others, I have had to do most of my own repairs. Coming home to Brighton on a very dark and rainy night, with both bottom fork links broken, carbon brush broken, and a belt link 1in instead of ¾in, is no joke on a Douglas, although I had a stout strap to hold the front forks to the rest of the machine. My Quadrant, which had a hub gear, I sold, and subsequently obtained a Warne cycle car, as I wanted protection from the elements. May I be forgiven for deserting a motor cycle. I have distinct recollections of overheating, breaking valves, and tremendous petrol consumption whenever I tried to keep the ‘bus covering thirty miles in the hour.

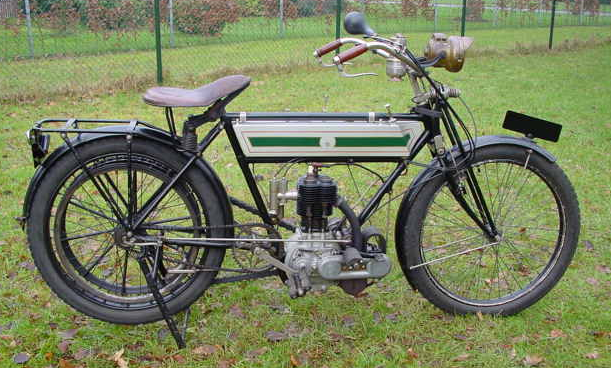

1910 TRIUMPH
1910 Triumph: “Without doing anything except putting on the belt again, the old ‘bus fired, and was never any further trouble.”

This was a useless proposition to me, because the whole thing wanted thoroughly overhauling, and in war-time no one could be found to do the job. To carry on, I bought a single-speed 1910 Triumph, and as I prided myself on always having an up-to-date ‘iron’, this was nearly the limit. We went together for many, many miles all over Sussex, but did I not have to pedal up some of the hills? I called on some friends one day, and left it against a tree. When I came out of the farm I could not get it to fire, although I tried for one and a half hours. I was stranded seven miles from the nearest station, so the Triumph was left there until the Sunday, when we were both ignominiously towed home by another Triumph. The joke of the whole thing is that immediately I got home, and, without doing anything except putting on the belt again, the old ‘bus fired, and was never any further trouble. Many little things, such as using small wire nails for chain rivets, Chinese lanterns when carbide gave out and none could be bought, getting paraffin from country cottages before the engine cooled, going without a decent meal for seven and eight hours at a stretch because country places gave up making meals owing to the rationing scheme, were all in the day’s run…For some time I had the loan of a 1915 3½hp Sunbeam combination, and never was a sweeter 3½hp made. My wife and I went

1915 SUNBEAM
1915 3½hp Sunbeam: “My wife and I went from Brighton to Manchester, and took five days to get back…Never a misfire from the engine all the way.”

from Brighton to Manchester, and took five days to get back: held up in Birmingham for two days, dug out of 15ft snowdrifts in the Vale of Evesham, wet through (and, owing to snow penetrating the bag, no change of clothes) at Oxford, but nothing except kindness shown everywhere. Never a misfire from the engine all the way; and when I say I had to take off the footboards and front mudguard, frictioned a back tyre through, and knocked oft the silencer, it will be noticed it was ‘some’ ride. In 1916 I did the run from Brighton to Manchester in one day on a 6hp Enfield which had been hammered for over two years, and except for a puncture I had no trouble whatever, and got to a theatre in the evening. My many changes of machines have been necessary because big repairs could not be done under a long period, although I could get a Class A priority certificate. I could only sell out and buy another machine. I found that to pay a good price for a reliable second-hand macliine was the only way out, and I think this is a method that will pay others in the near future. I practise what I preach when I state that a fortnight ago I gave £45 for my present 1914 2¾hp Douglas, but its condition is practically perfect. I have fifteen years’ experience of motor cycling, but, like many others, I will give it up and take to a bath chair with auto-wheel attached before I will give £150 for a motor cycle and sidecar which to-day, as in 1905, covers me with mud and road filth, and requires six hours’ solid work to clean it after 150 miles round Sussex on a bad day. We are a cheery lot, but there are limits even to our expenditure for our pet hobby.
WM WILSON.”

1914 DOUGLAS
“I gave £45 for my present 1914 2¾hp Douglas, but its condition is practically perfect.“

AS THE MOTOR CYCLE TRADE MATURED dealer networks were springing up. Godfrey’s, based in Great Portland Street, London W1 (a hub for motor cycle importers and dealers) took on sole rights to ABC in the South of England, and advertised for “agents desirous of representing the ABC Motor Cycle in their district’. In North London Rider Troward & Co had sole south-of England rights to NUT and Metro-Tyler; they too advertised for “suitable sub-agents”. They also opened “extensive showrooms in Great Portland Street for the exclusive handling of these two machines”.

“BELGIUM’S FIRST POST-WAR PRODUCTION: Belgian motor cycle manufacturers are making rapid recovery, despite the troublous circumstances which are still extant, and that they are not behindhand in following the trend of modern design is evident from the production of a four-cylinder machine at Liege, the town whose name conjures up gallant memories of the early days of the war, and which, in pre-war days, was the home of another well-known Belgian motor cycle, the FN. The designer and manufacturer, who has got so quickly to work, is M Henri Gonthier, well-known in motor circles in Liege.” The Gonthier’s 748cc IOE four was of unit construction with a wet plate clutch and a seven, yes, seven-speed gearbox: “It is said to be just as simple to operate as a three-speed gear, and yet it provides a fairly gradual progression from low to high, and rice, versa. At the same time, it is possible to overstep the intermediary gears and change directly from low to top or otherwise, as desired. The designer describes the gear quaintly as a three-speed gear with two intermediary gears between first and second, and two more between second and third.” The wheels were QD and imnterchangeable; when the company’s sidecar was fitted a spare could be carried. Gonthier also planned to resume production of its pre-war 3½hp 50° twin. The Blue ‘Un concluded: “As far as we are able to judge, this machine gives great promise, and, provided that production is not interfered with by the aftermath of war, it should form a sturdy competitor in the four-cylinder market.”

1919 GONTHIER
The Gonthier was Liege’s second four. Also available was “a gracefully designed business sidecarrier supported on a chassis of original design, the longitudinal framework being of pressed steel”.

“TWO OF THE PRINCIPAL BELGIAN MOTOR CYCLE firms, FN and Sarolea, are in a bad way, as the Huns have carried away most of the tools and material from the factories. FN has suffered particularly severely in this respect. Not only have the machine tools been taken away, but the foundations on which they were built have been absolutely demolished. Many private motor cyclists had their machines requisitioned by the enemy, consequently there is a good demand for motor cycles, though Belgian agents for English machines are not in a position to supply, owing to their being unable to secure delivery.”

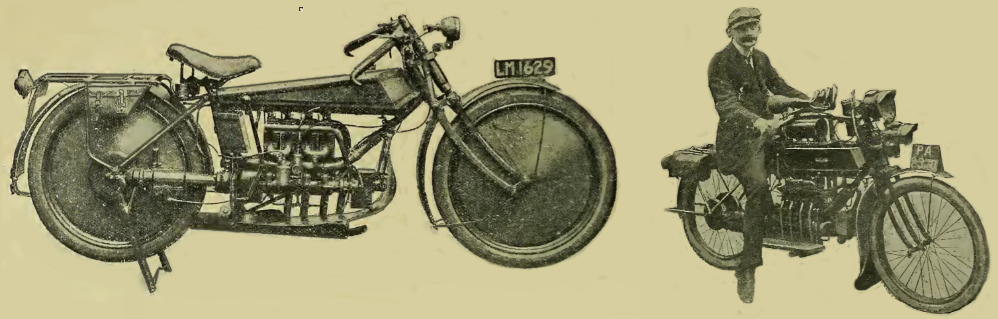

1919 CUSTOM FNS
Left: Belgium’s best known bike was the four-pot FN; Motor Cycle’s correspondent ‘Olivos’ picked up an ageing example for a song and extracted more power by converting the exhaust valves to inlet valves and fitting overhead exhaust valves. Then he lowered the fuel tank, fitted disc wheels and increased the fork rake. “Several alterations were also made to the frame, which has changed a somewhat cumbrous touring machine into one with a very sporting appearance.” Right: An enthusiast named TC Garrett was also playing with an old FN. He fitted a new tank, rebuilt the engine and fitted an AMAC carb—after a bit of tweaking he improved the big four’s consumption from 40 to 90mpg.

FOR SOME RIDERS THE WAR wasn’t over. Billy Pratt had been a top flight competitor in long-distance trials for P&M before heading overseas but wounds systained at Arras had left him in hospital for 15 months. The Blue ‘Un reported: “He is looking forward to the time when he will be on the road again. We hope the date is not far distant.” TT and trials rider Basil Vickers-Jones was home after five years in a German internment camp. Vickers-Jones worked for Premier and was at the company’s Bohemia works in 1914.

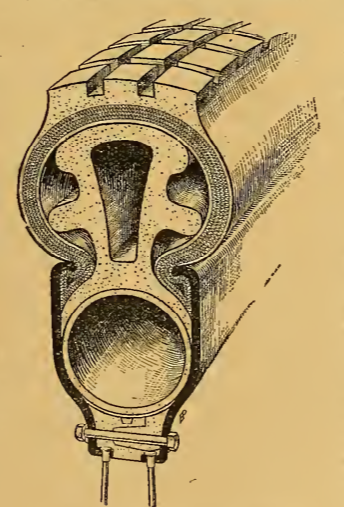

“MR FL RAPSON, THE INVENTOR of the Rapid jack and other car accessories, has produced an unpuncturable tyre, which appears to have great promise.”

BIGGEST BIKE IN THE 1919 RANGE from the Ixion Motor Manufacturing Co was a 348cc two stroke ‘sidecarette’ with a three-speed Sturmey-Archer gearbox. The makers said: “This is more than a two-stroke lightweight with sidecar attached; it is designed throughout as a sidecar outfit for those to whom very high road speeds are not essential…The lugs for sidecar connections are not detachable from the motor cycle frame, and to detach the sidecar occupies about three minutes only.”

“HANDLE-BAR MUFFS: This (February) is the time o£ the year when handle-bar muffs add to the comfort of riding, yet very few are seen in use…Gloves that fit tightly upon the hands are as bad as no gloves at all, at this time of the year.”

1919 HENDERSON SCAR
“The latest model Henderson sidecar has a distinctly pleasing appearance, and one which will appeal strongly to the sporting motor cyclist especially. However, nothing appears to have been sacriticed in respect of carrying capacity. Those parts which cannot be enamelled are constructed of the new rustless steel which, it is said, will not even tarnish…A novel feature is the incorporating of the sidecar lamp. The connections are by patented adjustable joints.”

IXION WAS PONDERING ‘CLEAN’ DESIGN: “OF course, a motor car is a civilised being, and wears clothes: all its indecent intestines are secreted beneath the bonnet, coachwork, and floorboards, and none of its works need show except the steering connections and back axle, which are not obtrusive. By contrast the motor cycle is a naked savage from a kraal, and as long as it is air-cooled, portions at least of the machinery must remain exposed. But there is neither need nor excuse for the myriad dirt and rust-collecting crannies which still characterise the machines of all nations. Whether we consider the handle-bar with its assortment of levers and accessories—all attached by plate-clips—or the front fork head with its telephone exchange of tangled wires, or the tank top with its filler caps, petrol valves, lube recesses, tank clips, and oiling apparatus, or the crank case, or the gear box, or the rear hub, or the carrier, we find an utter absence of smooth and shapely surfaces, and a bewildering multiplicity of what Major Matson used to describe as ‘twiddly bits’. Until these are exorcised, our machines must continue to displease the eye and absorb hours when they require cleaning…fittings are the main problem: so long as the machine is condemned to carry a bristly, spiky, amorphous unit at its centre, no designer will see the point of cleaning up such comparatively simple details as the handle-bar, crank case, and chain cover…If this is once successfully attempted, the motor bicycle will, so to speak, substitute a neat pair of tailor-made trousers for its present waistband of beads and wire; and, in due course, it would add a bowler hat in lieu of painting its cheeks and sticking feathers in its hair. All of which improvements are ardently to be desired. Pardon this outburst, gentle reader. It has been thawing to-day: my front mudguard fell off eight miles away, owing to a rusted bolt: and it is ‘some’ cold in rny garage. Also, I had been to a dance, and was too lazy to change out of dress trousers’ : and when Mrs’. Ixion saw them laid over a chair back ‘this morning, she said ‘—— —— !!!’.”

BACK ON PLANET EARTH Ixion wrote: “I confess to very real disappointment at the obvious decision of the motor cycle trade as a whole to adhere to side valves. In the old days the overhead valve was wisely eschewed because of the risk of fracture: this danger is wholly obviated by modern steels—there are air-cooled aero engines fitted with exhaust valves nearly 2in in diameter, which never break, although the heads are thin and light. On the technical side there is not one solitary word to be said in favour of side valves, and least of all in connection with air-cooled engines, where a symmetrical section is so invaluable as a preventive of distortion. The real problem in the application of ohv to motor cycle engines is purely practical…Overhead valves threaten to foul the middle rail of the frame with vertical engines, and elongate the already over lengthy flat twin. So we see the Rudge people scolloping out their petrol tank to clear an overhead inlet valve, and Mr. Bradshaw mounting his 400cc flat twin athwart the frame. Nevertheless, I cannot help feeling that overhead vahes will gain ground, as their technical merits overweigh the practical difficulty.”

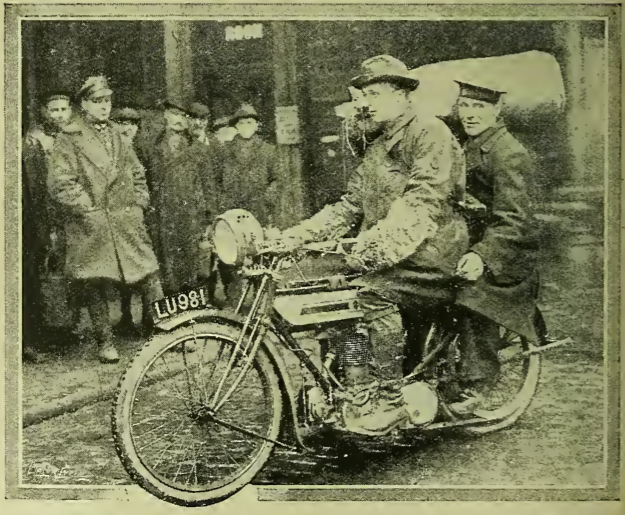

1919 SAILOR PILLION
“Demobilised. The rider of a Triumph countershaft model aiding in the rapid dispersal of the demobilised. The naval man who has just received his papers is evidently no stranger to pillion riding, judging by the weighty kit bag he has to balance.”

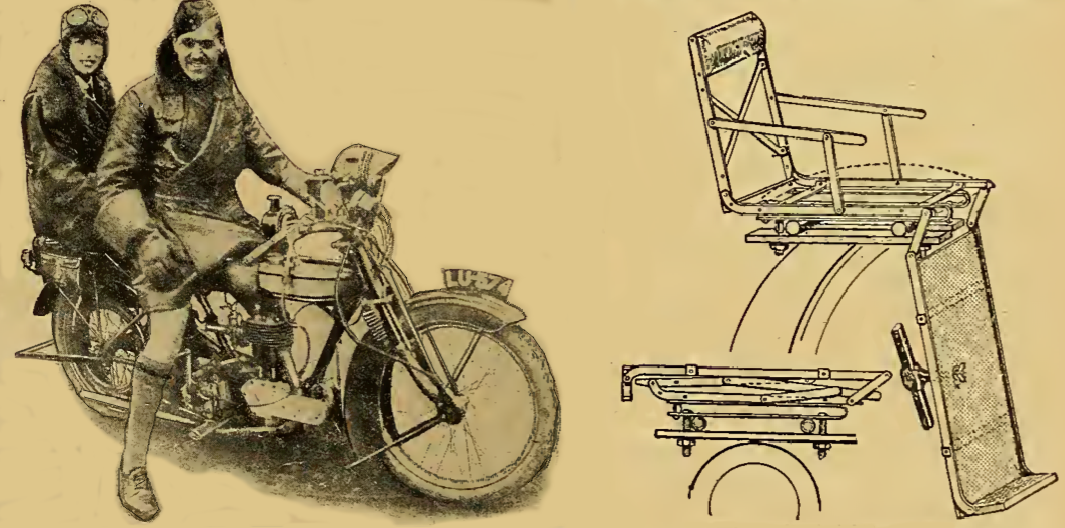

1919 PILIONS
“A cheerful owner and passenger on a Norton ‘Big Four’. In spite of protests occasionally Heard against pillion riding, this form of passenger carrying is still popular.” [The Blue ‘Un, it seems, was quietly dropping its opposition to pillion riding.] Right: A useful folding pillion seat is to be sold by JHM Pollock of London WC2. The seat possesses the advantage of having a comfortable back, and is suspended on a U spring with a spiral spring at the rear. A protected leg rest is also fitted, which should be extremely useful in the event of the seat being used by a lady, adequately protecting the dress from the spokes of the rear wheel. When out of use the seat folds neath’ away, and the leg rest, folding over the top of the whole, forms a luggage platform.”
“THERE IS AN ILL-ADVISED AGITATION amongst a certain section of the bicycling community for the removal of the regulation compelling all road vehicles to carry rear lights. They believe, or affect to believe, that motorists are the cause of the retention of this regulation. It is quite true that motorists welcomed an Order which was obviously for the public safety and did no more than compel others to do what they themselves were already obliged to do. Every- thing that can be urged against rear lights on bicycles can also be urged more strongly against rear lights on motor cycles, and yet motor cyclists are not following the German plan of raising a plaintive wail…It has been suggested in our columns and elsewhere that it is gentlemanly to carry a rear light. We agree. Another point: The fact that quite a large number of cyclists carry a red light in front is used to prove that the regulation is complicated. To us it only seems to suggest that the cyclists in question should not be allowed on the roads without a keeper. The only fault we have to find with the red rear light rule is the very inefficient way in which it is enforced by the police.”

“THE BUGBEAR OF METROPOLITAN MOTORING is the prevalence of theft. The burglars are as ingenious as they are daring. No car or cycle is safe if it is of a sufficiently common type to evade recognition during its hasty trip to the secluded workshop where it is camouflaged prior to sale. The designer and accessory .dealer have an obvious opening. As soon as bicycles lost their rarity and individuality,, cycle thieving developed into a new ‘crook’ profession, and anti-thief devices of an effective character came on the market. Similar devices are easily applicable to motor cycles, and the demand for them will be constant.”

“A GENTLEMAN, WRITING TO US from Newark, NJ, gives the British industry the credit for the introduction of, among other things, flat twin engines, footboards, gear boxes, kick starters, sidecars, and front wheel stands, and points out that all the US industry can point to seems to be electrically equipped mounts…’Your Triumph single must be a cuckoo of a mount, our friend continues in pure American. ‘Three friends of mine—American DRs who have ridden two or more British mounts—simply rave when they describe the actions of a WD Triumph. One lad says it is the first real motor cycle he ever straddled.’ We are informed that there is every evidence that there will be a big revival of sport in the USA this year, but the industry appears to be composed only of the Indian, Harley-Davidson, Excelsior, Henderson, Cleveland, Thor, and Reading Standard companies. The Smith motor wheel is still going strong, but the Merkel and Cyclemotor have dropped out, as also has Emblem.”

“WHILST WE DO NOT WISH to encourage the dangerous practice of carrying a passenger on the carrier of a solo machine, it is obvious that there is little objection to the carrying of a third person on a properly-designed carrier seat of a powerful sidecar combination; and it is principally with this object in view that the Tan-Sad Coare developing their series of spring carrier seats. Wooden handles may be added as further security ior the rider, and for a solo machine a jockey type of stirrup gives support for the passenger’s feet. When in use with a sidecar, with the passenger sitting sideways, a footrest and backrest can be fitted. A can of petrol may be firmly fixed on the seat, when not occupied by a passenger, by the use of a patent grip.”

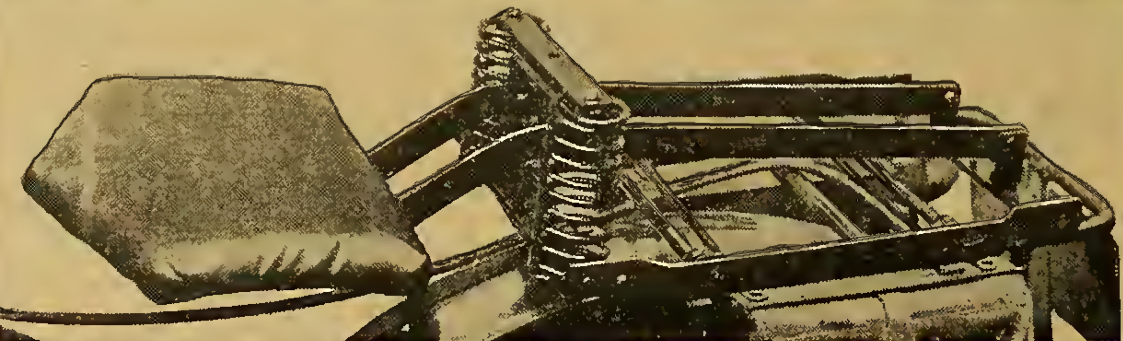

1919 TANSAD SEAT
‘The Tan-Sad sprung pillion seat is shown with and without the addition of a foot and back rest. The petrol-can grip is formed of turnbuckles and linked metal strips.”

“SIR,—IN A PARAGRAPH IN YOUR ISSUE of the 30th ult it is suggested that, owing to the uncertainty as to whether the TT course can be put into proper order, Ireland is the only alternative for a race this year. I do not know on what facts this paragraph is based. The truth is that the TT course, with the exception of one small part, is in as good condition to-day as it was in 1914, when the races were last held. That one patch—it is part of the mountain road—is cut up very badly, and I have talked the matter over with the Highway Board, which is responsible for the upkeep of the Manx roads, and the Board is ready, provided the ACU signifies its willingness to hold the race, as quickly as possible to divert all work on other roads and to restore, and even better, the TT course, so that the races could be held here as in former years. I trust that your influential journal will do what it can to assist in the reconstruction of the TT races. The Isle of Man has passed through a very bad time since August, 1914, and it wants every possible help it can get, otherwise the plight of the inhabitants, who have hitherto always given of their best to the motor races, will be terrible. I might add for your information that the Shipping Controller has already informed the Island that we shall have our boats back before June next.
GEORGE SA BROWN, Douglas, IOM.

“OLD USAGES DIE HARD, whether ridiculous in their application or not, and a case in point connected with the riding of motor cycles is the unjustifiable employ- ment of the term ‘season’. At all times of the year, in the cold days of January and in the broiling heat of August, the motor cycle is to the pleasure-seeker a pleasure and to the business man a boon. True sport and real pleasure may be experienced in the rush of the biting wind, as well as in the soft breezes of summer; variety is the spice of life, even in motor cycling. Neither is this ‘all-the-year-round’ riding confined to the male sex. A sign of the times is observable in the keen enthusiasm of lady motor cyclists and sidecarists in every kind of weather. It is from the riders who scorn to store their machines in winter that one gets the reasoned and sound criticism of weatherproofing, and constructive criticism is the most effective way of drawing manufacturers’ attention to riders’ wants. In talking of fishing, football, or cricket, the expression ‘season’ is sensible; it has a meaning. But to apply it to a mode of travel as universal as motor cycling is a reflection upon the all-weather qualities of the modern motor cycle.”

“JUDGING FROM THE NUMBER OF SINGLE GEAR machines in existence and the demand for change speed gears, the Grado expanding pulley will be welcomed by a large number of riders who are now fitting up second-hand machines. It gives a free engine and ratios from 4:1 to 8:1, and now embodies a kick starting gear. A gear wheel is carried on the pulley, and is connected to the engine-shaft through a free-wheel ratchet arrangement. Behind this is a segment embodying a pedal lever, which, upon being pressed down, engages the seg ment with the free-wheel pinion and turns the engine…this latest design also has an improved method of attachment to the crank case, which permits it being fitted to almost any engine without undue trouble.”

1919 GRADO KICKER
The Grado pulley was a simply way to upgrade a single-speeder.

“WE HAVE LONG URGED THAT BRITISH MOTOR CYCLE manufacturers would benefit by more careful attention to the insistent demands from Overseas for a machine in every way suitable for the special requirements which were only fully covered in the big twin class by certain American machines. What is required by a large number of Overseas buyers is a large capacity engine, 28x3in tyres, spring frame, and, coupled with such a specification, British quality in design, material, and workmanship. The Clyno Engineering Co. in their “peace model” have, it will be seen, appreciated the needs of a vast proportion of the Overseas market, for the new Clyno has been designed throughout, frorn the point of view of the Colonial, and the result is a machine which sets a new standard of design which will be appreciated just as much by riders at home. The popularity of American machines in this country and Overseas indicates that what is abso- lutely essential in the Colonies is also desirable in Great Britain ; hence, while the motor cycle designed for this country may not be suitable for Soiith Africa or Australasia, the true Overseas mount is equally good for home or abroad. The general outlines of the

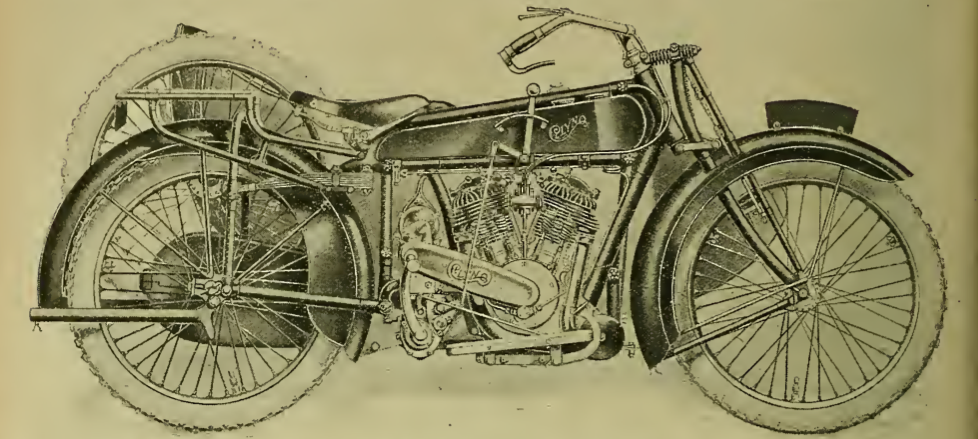

1919 CLYNO PEACE
“The 8hp peace model Clyno: 76x102mm, 925cc capacity; detachable heads; 28x3in detachable wheels; mechanical lubrication; spring frame.”

new Clyno, at first sight, appear to follow those of well-known American machines. This, however, probably is due to the high ground clearance (over six inches), the spring frame, and unconventional looking carrier; because, upon examination, the general design is more British than American…The frame is of very substantial construction, the makers’ experience with their machine gun sidecars being responsible for several special features, notably the exceptionally strong head, which has massive, but by no means ugly, webs on each side and at the rear of the casting…Comparatively short springs with seven leaves are hinged at their rear ends on the sides of a loop member over the wheel, which in turn is pivoted at the ends of the chain stays…An 8in internal expanding bi’ake is fitted on the driving mechanism at the rear wheel, and is operated by a pedal on the left side of the machine. The shoes are faced with Ferodo, and therefore renewable. The front brake is of the conventional type, ie, fibre pads in shoes working upon the rim of the wheel and operated by lever on the handle-bar…Front and back stands and Brampton-type forks complete the main elements of the frame…We may say that it is a long time since we were so favourably impressed by a motor cycle engine, both in the points of design and performance…the stroke, in proportion to the bore, is longer than that of any British twin motor cycle engine hitherto produced, the ratio being nearly 4 to 3…Important features are the detachable heads and the methods adopted to hold them in position. On two sides of each cylinder there is a sw-ivelling bolt extending from the crank case to above the cylinder heads where they are linked by bridge members, which bear upon the centre of the cylinder heads. The part in contact is concave on the cylinder

1919 CLYNO PEACE2

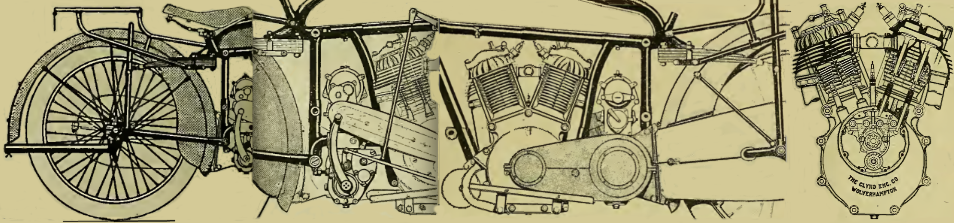

From the left: “The rear springing of the new Clyno. Gear unit showing the combmed magneto-dynamo, which may be fitted to order. Strong metal chain cases are fitted which are readily detachable.The valve-operating mechanism.”

and convex on the bridge piece, which makes the latter more or less self-centring. To detach a cylinder head it is only necessary to remove one’nut, slacken the other, and swing the bridge piece clear. The head removed, together with the valve chests and valves, the cylinder barrels may then be withdrawn without further use of tools. Accessibility at every point is a strong feature of the design. The foot boards and pedals are built up as a complete unit, which may be removed by withdrawal of two bolts. The clutch is rendered accessible by detaching two screws on the domed cap and two nuts on the top of the case. Altogether the new Clyno impresses us as a thoroughly sound proposition, and one which will remove much of the complaint against the British motor industry, that Empire trade is not regarded seriously.”

1919 CLYNO PEACE3
“Plan view of the new 8HP peace model Clyno.”

“THE HOSPITAL MOTOR SQUADRON, attached to the RAC, appeals for transport for the wounded still in London hospitals to the various entertainments provided for them.”

“THE RATION OF PETROL to motor cyclists in Italy is now seven gallons a month. The importation of foreign machines is prohibited except by permit.”

“THE NATIONAL BENZOLE ASSOCIATION have fixed a standard for benzole to be used as motor spirit. It will be free from acids, alkalies, and sulphur, like water in appearance (pre-war benzole generally had a yellow tinge), and the specific gravity will be .870 to .885.”

CONNAUGHT WAS A PIONEER of basic two-stroke lightweights—it had been the first UK marque to use petrol lubrication—but its ‘peace model’ was little changed from the 1914 season. The over-square (73x70mm) 293cc single featured all-belt drive witha two-speed gear as an optional extra.

1919 US COMBO TOW
“An Indian sidecar outfit used by an American dealer for hauling motor cycles from the Hendee factory to his stores.”

“A SIDECAR OUTFIT HAVING BOTH rear wheels driven is the subject of a patent taken out by Mr WFJ Simpson, of Reigate, Surrey…Both rear wheels are sprung, and, it is claimed, both wheels retain their relative position to each other by means of a link motion, thus avoiding strains on their respective frames. The sidecar wheel is driven by an ‘axle’ shaft, which is connected to the rear wheel of the cycle through a differential which is carried in the hub of the motor cycle wheel, and, if the sidecar is detached, it may be locked up, thus permitting the machine to be used as a solo mount.”

1919 SIDECAR DRIVE
“A patented sidecar chassis with driven wheel and differential.”

“A NEW MODEL FLAT TWIN intended for solo work will shortly be introduced to the motor cycling public by the makers of the OK lightweight. This machine has been designed and is being produced by Messrs. Humphries and bawes in their own factory, and will mark the entry of this firm into the motor cycle manufacturing field as distinct from that of assembling. The war has wrought many changes, and it is necessary to obtain a different perspective of the various makes and makers from that of pre-war days. Nearly every motor cycle manufacturing firm has considerably extended its factory during the last four years, while some have entirely outgrown the popular conception of their standing. It is permissible, perhaps, to class Messrs Humphries and Dawes in this latter group, as while, before the war, their average output of motor cycles was

1919 OK ENGINEFRAME
“The 2¾hp OK flat twin engine has overhead inlet valves. Every tube in the OK frame is straight.”

comparatively small, their extensions during the past few years have increased their production capacity to between 200 and 250 machines per week. The new proposition is a flat twin solo machine, which has been designed with a view to meeting the requirements of a large section of the riding public at home and abroad. The first essential of the colonial machine is ample ground clear- ance, and on this point the new OK certainly scores with 7in clearance, while large tyres are another Overseas demand. met in the new OK by 26×2¼in wheels, which on a 350cc lightweight may be regarded as ample. Straight tubes are used throughout the frame which is of the duplex type and features combined sheet metal undershield and footboards. The latter are covered with aluminium and are shaped and beaded at the edge…Details are not available of the gear box, but we understand that it will be of the two-speed constant mesh type, embodying kick-starter and clutch. The transmission will be by chain to gear box, and final drive by ¾in belt. The tank will have a capacity of two gallons.”

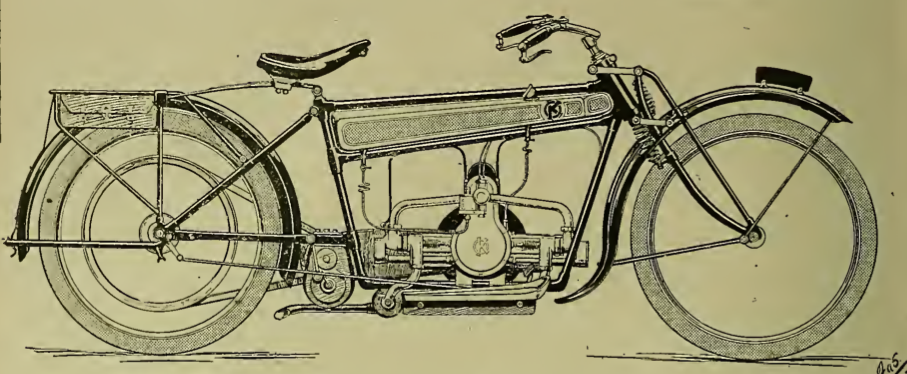

1919 OK FLATWIN
“The new 2¾hp OK flat twin as it will appear when complete.”

HAVING EXPERIMENTED WITH A lightweight flat-twin during the war, Harley-Davidson upped the stakes with its first peacetime debutante: a 6hp 584cc version marketed as a solo mount though, as the Blue ‘Un remarked: in the matter of weight (257lb) and nominal horse-power it is equal to the usual British passenger machine…the frame is of the usual single tube rigid type, supporting the engine by attachment at three points to the crank case and front cylinder. The rider is insulated from road shocks by the sprung seat pillar, and the front suspension is provided for by, a special type of trailing or castor spring fork of substantial construction. Unlike the bigger models, the tanks for oil and petrol are made as a unit, the former holding two quarts, and the latter over three gallons.” The multi-plate clutch and three-speed box were fitted above the engine next to the mag with pinions rather than chains to reduce clatter. “A speed of 55mph is obtained, and we should say the machine should prove a good all-round double-purpose mount.”

1919 HARLEY FLAT SPORTS
“The near side of the new 6 h.p. Harley-Davidson flat twin. The engine capacity is 584cc” As the pic of a restored example shows, Harley were happy to stick with a khaki finish.
1919 HARLEY FLAT ENGINE
An interesting contrast between the period pic of the engine and a modern restoration. “The adoption of helical transmission eliminates the short chains to gearshaft and magneto.”
1919 AJS 6HP
“It was first announced that the 1919 6hp AJS would be the military model ‘improved in minor details’; but the sum total of these alterations makes the machine as much a new design as most show models at past Olympias.” Upgrades included detachable heads, a more effective valve lifter, quieter timing gear and neater exhaust.

“THE EMPIRE SIDECAR IS NOT SO WELL KNOWN to the riding public as it is to large producers of sidecar outfits. Before the war the bulk of the Empire output was absorbed by trade requirements, and during hostilities several thousands of them were supplied to the Government for Triumph and BSA, machines. From this it will be gathered that Messrs Lowe’s Empire Sidecar Co has a larger output than is usually realised. The Government has not entirely released the company to resume their normal business, but have sanctioned their making a certain number for the public. The military model sidecar is built under a patented process, all panels being of special hydraulically-pressed close annealed steel. The design is most pleasing and the general finish considerably above the average, in fact, throughout, the sidecar is built for hard service. Designed specially for WD BSA and Triumph machines on active service, the chassis is particularly sturdy in construction.”

1919 EMPIRE SIDECAR
“In every way the military model Empire is a first-class sidecar, and one which can be quickly attached and detached.”

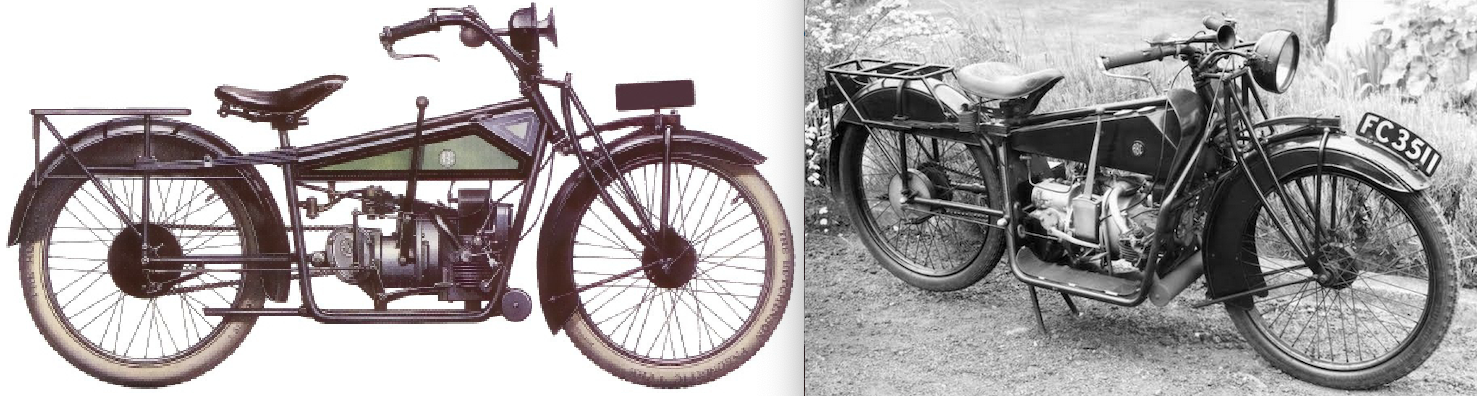

“THE FIRST IMPRESSION ONE RECEIVES of the new ABC is that it is designed as a motor bicycle. It is no slavish copy of any existing design, but a bold attempt to construct a self-propelled two-wheeler on original lines, but with no suspicion of freakishness. The designer’s ingenuity has had lull play, and yet, with all its originality, there appears to be no reason why the machine should not be successful in every way. Probably the first characteristic of the machine which strike one is the lack of void spaces between wheels and frame and about the engine. It is a motor cycle designed around an engine gear unit rather than an over-developed bicycle fitted with an engine, and the result is most pleasing to the eye. It requires attention at one point, however, to make it conform to the ideals of a large coterie of all-weather riders. We refer to the mudguarding and the chain cover. We think the rear guard would be improved by the extension of the valance between the chain and the tyre, and that a totally enclosed chain would be better than the threequarter guard shown on the model illustrated…Mechanically minded readers naturally turn first of all to the engine or, rather, the power unit, for in the new ABC the engine and gear box are in one…the cylinders are placed athwart the frame, but this does not render the machine unreasonably wide…The valves are of the overhead type,

1919 ABC ENGINE FRAME
“Showing the frame design and the front and rear springing system. The power unit, showing position of the dynamo under the crown wheel casing.”

made of unbreakable steel, with volute springs in pl;ace of the more usual helical type. At first sight, there is a tendency to regard such items as tappet rods and rockers as being of exceedingly light construction and possessing very small wearing parts, but it must be borne in mind that in the design of the new ABC lightness, as much as power, has been taken into consideration, and efficiency has been the watchword of the firm…A dynamo will be carried below the crown wheel casing, and behind it there is just room for the battery. A kick-starter will be provided for all models. On the undershield are mounted two aluminium plates upon which the driver’s feet rest. Throughout the design points of convenience have been well studied, and every care has been exercised by the manufacturers to leave nothing undone for the rider’s comfort. An idea suggested to us by Mr Bradshaw, which he may carry out, was the fitting of a toolbox underneath the crank case containing two drawers in which the tools are let into the solid wood, so that it is impossible for them to be damaged by rattling one against another. The weight of the machine without fuel is 175lb, and overseas purchasers will be interested to hear that the ground clearance is 6½in. We cannot refrain from congratulating Mr Bradshaw on the excellent design engine, and, indeed, of the whole of the and wishing the Sopwith company success In its enterprise.”

1919 ABC 3HP
“The new spring frame 3hp ABC, the engine of which is a flat twin fitted transversely in the frame. Many of the features are revolutionary, yet the ensemble is decidedly attractive.”

“OUR US CONTEMPORARY, Motor Cycle and Bicycle Illustrated, announces the new ABC in the following headline: “Four Speeds—50lb—160 Miles per Hour.”

1919 METRO-TYLER
The Tyler Apparatus Co and Metro Two-stroke Co teamed up to prodice the 296cc Metro-Tyler. There were two models: A two speed tourer (left) and sigle-speed touring model with dropped bars and disc wheels.
1919 RADCO
Radco’s first post-war model was little changed from its 1914 offering with a 2¼hp and optional two-speed gear. The major upgrade was a move from the company’s own front fork to a Druid.

“IT WOULD APPEAR THAT THERE is a promising market for English motor cycles in Spain. The actual number of machines now in that country cannot be given accurately at the moment because the Government has only just insisted upon a complete registration, but there is no doubt that the number is increasing rapidly, though unfortunately, from the British point of view, the majority of machines reaching Spain have necessarily, during the past four years, been of American origin, chiefly Indians and Harley-Davidsons. Previous to the war, however, the better known English makes, such as the Douglas and Triumph, were greatly favoured.”

“MOTOR CYCLES IN THE USA: There are over 20,000 motor cycles in use in the State of Ohio alone. It is expected that this figure will be increased by 50% during 1919.”

“SURREY MCC: IT IS NOT LIKELY that this club will be restarted as yet, owing to most of the members being still in the Forces, and there are no signs of their being demo- bilised at present.”

“MATLOCK &DMCC: AS THE MAJORITY of the old members of this club are serving with the Forces, it has practically become extinct. Here is a chance for some local enthusiast to organise a live sporting club.”

“A LABOUR MOTOR CYCLE CLUB: We hear of a new motor cycle club in formation in South London in connection with a Labour club, composed of engineering trade unionists and others.”

“CUMBERLAND COUNTY MCC: WE HEAR from the treasurer, Mr WB Anderson, West Walls, Carlisle, that as most of the members are still in the Army, nothing has yet been done towards re-forming the club.”

“WAKEFIELD MCC: IT HAS BEEN DECIDED to re-open this
Club, which was closed down ‘for the duration’, and an attractive programme is being arranged. About twenty new members have been elected already. The hon secretary, Mr SE Wood, 186, Stanley Road, Wakefield, will be glad to hear from prospective members and others interested.”

“THE MCC: THE LARGEST AND MOST IMPORTANT smoking concert ever organised by the Motor Cycling Club will be held at the large Queen’s Hall (which will hold between 1,500 and 2,000 people) on March 21st. A number of first-class artistes will be engaged, and those who intend to be present may look forward to a most enjoyable evening. Members of the MCC and of other motor cycle clubs, may invite their friends and lady friends.”

“THERE IS A UNION IN EXISTENCE—a real fighting organisation (as will be proved in the near future), known as the National Motor Cyclists’ Fuel Union, with branches in every town. It is composed of working men, and intended to look after their interests. The union is there: what is wanted is for motor cyclists to join, and so provide the force to fight. The more we have, the more ideas we have to work on, and, speaking for the Executive, the more work we have the better we like it. The NMCFU is affiliated to the ACU, and these two unions are prepared to go the whole way.
T MALLALIEU, Honorary Secretary, Coventry Branch.”

1919 NMCFU MEETING
“The meeting of the Birmingham and Covenly branches of the National Motor Cyclists’ Fuel Union at Stonebridge. Many new machines were in evidence and freely criticised.”

“WHICH ARE WE TO BE GIVEN—refined motor cycles or cheap motor cycles? At present, production in the motor cycle industry seems to be solely devoted to models of novelty and refinement. Refinements increase while initial cost is neglected. Do manufacturers appreciate that there are two markets, of which the buyers of a cheap machine, if produced, are by far the greater in number, and yet at present they cater almost solely for the buyer of the refined motor cycle? Reliability has come and come to stay. Now let us have cheapness. We hope and trust that manufacturers will not neglect this vast, untapped market. Let them add to the present reliability the vital necessity of cheapness, and they will find that the market is both lively and large. Surely they can see what success the Ford car has obtained from cheapness and reliability.”

“IT MAY SEEM ABSURD on the face of it to advance the claims of China as a country likely to be interested in motor cycles, especially as British organisation in our Dominions is not yet perfect. It is significant to learn, however, that Dr. Chao-Hsin-Chu, BCS, MA, Consul-General of the Republic of China, was a recent visitor to the Hendee Manufacturing Co. There he expressed views on the tremendous advance his country is making, and advised business men to establish trade relations with Chinese merchants direct rather than through Japanese channels. Many thousands of motor cars are now being imported into China, and sooner or later motor cycles will be common in the big towns. Who will be the pioneers, the Britisher or the American?”

“SIR,–THE POSSIBILITIES OF COMMUNAL GARAGES appealed to me very much, and being connected with a union having a local membership of 800 I lost no time in bringing the subject forward, with the result that we placed it on our immediate programme, and anticipate having at least one communal garage in each district, where each member can have his own cubicle, a covered-in shed for common use to clean and make other necessary adjustments from time to time, and a stores where motor fuel, oil, and other accessories can be obtained as required; also, a well-equipped workshop, where any small replacement can be made, will be added where cicumstances permit. This is rather an ambitious programme, but with the organisation we have already in Sheffield it should be fairly easy of accomplishment. We already distribute benzole on these lines, having one or more stewards in each district, who receive the benzole and distribute it locally. These stewards would have charge of the stores and workshop. It would scarcely be necessary to stock more than, say, 100 galls, of benzole, 10 galls, of oil and one tyre each of the sizes mostly asked for, as it is only a question of a few days to obtain renewals and other accessories. Those of our members who do not need a cubicle would have the benefit of communal trading in motor fuel, oil, and other accessories, the use of the workshop, and cleaning appliances, etc; last but not least the advice and help of the experts who are always found in every group of motor cyclists. This matter has been fully discussed and will be commenced as soon as we settle the details of expenditure, etc. In outline I imagine the plan of the communal garages as in the accompanying sketch.
W WRIGHT, SHEFFIELD.

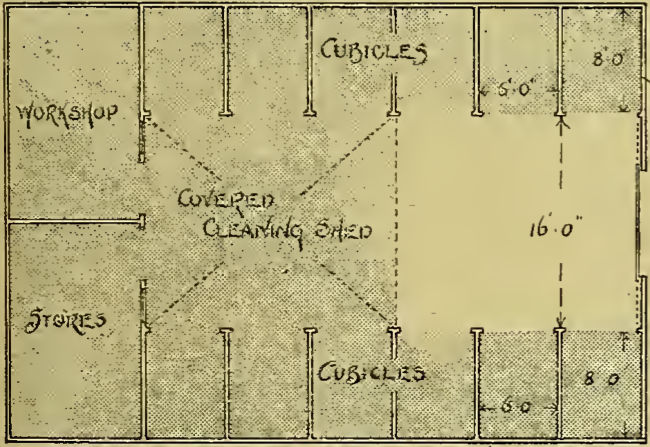

1919 SHARED SHED
A collective approach to motor cycle storage and maintenance.

“SIR,—I HAVE RECENTLY BEEN in communication with two of the leading motor cycle dealers, namely. Rider Troward and Godfrey, and both have informed me of the discontinuance of their gradual payment systems, both stating that this is due to the shortage of second-hand machines. This action will rob many ex-soldiers of the joys of the open road this forthcoming summer at least. Returning from Army life with only a few pounds in their pockets, many must be left to gaze enviously at the munition worker with his £140 combination, whereas the continuance of the gradual payment system would have given them opportunity to get hold of a modest ‘bus and enjoy the delights of motor cycling. During the past two years, whilst the restraining hand of ‘Dora’ [Defence Of the Realm Act] has been upon us, dealers have been only too glad to sell on any terms, and many munition workers and such have been paying towards the purchase of a mount, but we unfortunate souls who were in khaki had no opportunity of this, and now, when at last we are able again to take up the threads of a peaceful existence, up go the prices, and the schemes that would have enabled us to materialise our long-looked-forward-to dreams have vanished, and we are left kicking about ‘busless’ whilst our more fortunate brethern are speeding away on the roads and over the country for which we did our humble best.
FEHB, MANCHESTER.”

“EVERYBODY ADMITS THAT CRIME is on the increase,” Ixion asserted, “especially amongst juveniles, who have been relieved of salutary discipline by daddy’s absence on active service. Yet this is the time selected by the police authorities to pester the small handful of motorists with a type of surveillance which was always silly and apt to be ridiculous in its incidence. One might as well instruct a fire brigade to patrol the streets watching where smokers threw their matches, and leaving an empty fire station to receive brigade calls. The average motorist frankly despises the legal speed limit, which is a piece of camouflage invented by dishonest politicians to smooth down ignorant prejudices. It was never intended to be enforced, and cannot be enforced. It leaves the public just where they always were the commonsense of individual drivers, who generally know that 10mph is quite as often legal but dangerous, as 30mph is illegal but safe. This tongue-in-the-cheek legislation is now foolishly exploited by certain police areas to the neglect of far more urgent duties, and for the profit of local funds. It is high time that this obsolete regulation was replaced on the statute book by a ‘dangerous driving’ regulation. In the meantime, authorities who exploit it show that they misinterpret their responsibilities.”

DECADES BEFORE SIDESTANDS BECAME UBIQUITOIS, Ixion wrote: “A few months back a medico discoursed very interestingly in our columns about his ideal motor
cycle. It struck me that on the whole he was trying to compress the Yankee ideals of complete equipment into the dimensions of a baby two-stroke, and thatt he would be lucky if his steed scaled much under 3¼cwt. But I relished much his suggestion of a folding prop on the near side of the bus. Whenever we stop with a standard machine three alternatives confront us, and each is unpleasant. If there is a wall handy, we try to balance the jigger against it, which often necessitates buck-jumping 3cwt up a 6in kerb. As we depart the machine begins to slide away, scrapes the levers off one end of the handle-bar, and then stabs its tank heavily with the inside grip. If the stop occurs in the country we discover a hump by the edge of the road and balance the jigger against it. We turn away to light a pipe, and the footrest eats through to the base of the soft mud hump. The machine side-loops noisily into a ditch full of manure and nettles. Educated by such experiences we finally learn to use our stands.”

WOOLWICH RUN
“The opening run of the Woolwich Plumstead &DMCC: Members at the Three Horse Shoes, Knockholt. Douglas, Matchless, Harley-Davidson, and Triumph outfits, also a Morgan, were among the makes represented.”

“DEAR ME, IXION MUSED. “What times we live in. Zeppelins that rather enjoy being perforated by ten drums of ‘tracer’. Pocket telephone receivers, on which you’re to be rung up by wireless from Hong Kong whilst climbing Beggar’s Roost. Dreadnoughts which can’t be torpedoed. Tyres which don’t puncture. If any big inventor is hunting round for some unsatisfied public need, let me say I am prepared to pay through the nose for a bottomless purse.”

“WE HAVE POINTED OUT THE NECESSITY for some combined action and universal agreement on the matter of the horse-power rating of motor cycles. At the present time, although a certain amount of agreement exists with reference to one or two popular sizes, every manufacturer is a law unto himself, and consequently nominal horse-power bears no constant relation to engine capacity. It has become customary to designate an engine of 500cc, or thereabouts, 3½hp, but one engine of 488cc is commonly called 4hp; another (a_four-cylinder of 496cc) is rated as 5hp. A certain twin engine of 430cc has been used by several makers, some of whom call it 3hp, others 3½hp. Engines up to 550cc are frequently known as 3½hp, but some years ago a 3hp engine had a capacity of only 353cc. This clearly shows the need for some recognised formula upon which makers shall base the nominal horse-power rating. For several years, we have insisted that a motor cycle in good tune should be capable of producing 1hp for every 100cc of its capacity, and we have suggested that makers should rate the horse-power of . their motor cycles upon this basis, which has the great advantages of simplicity and accuracy…It is quite possible for a 500cc to show something like 11hp on a brake test, but it is only very rarely that such a power output would be demanded of it on the road.”

“ON FEBRUARY 24TH IT WAS REPORTED that there were twenty million gallons of petrol imported solely by the Government, apart from aviation spirit and motor transport spirit. There are, moreover, additional stocks of petrol purchased by traders since the Government ceased to be the sole importers, so there is no question of shortage now. How much longer shall we be burdened with the Petrol Control Department, its wretched coupons, and the miserable super-tax?”

THE AUTOMOBILE ASSOCIATION ISSUED a circular to its members: “While every possible means of relief is being vigorously sought, it is unpleasantly true that British benzole, every gallon of which should be used in Britain, is not being so used. Worse, vast quantities are being exported. This is a national calamity. Producers are not to blame. Distribution difficulties are acute; drums and tins are scarce. Co-ordination of supply is wanting. The National Benzole Association has been formed; its leaders are earnest businessmen. They tell us plainly that home-produced benzole shall be conserved to the use of British motorists if organised British motoring will do its share. A standard specification has been prepared; all the responsible benzole producers will conform. It is at once our national duty and to our common interest to use benzole. Distribution is a knotty problem. It is being solved. Meanwhile, let us all make a start in however small a way. Buy British benzole always through your local AA agent. We can help you—we will help him. Buy benzole in fifty-gallon drums and keep it twenty feet from a dwelling place. The regulations are not difficult to comply with. Alternatively,get the local AA agent to store it for you. A large supply of fifty-gallon drums has been secured by the AA which can be hired.”

1919 WHALEY ENGINE
RS Whaley, who had been connected with a number of motor cycle companies, designed a long-stroke (69x78mm) 292cc unit-construction two-stroke that was rated at 2¾hp but had been bench tested at 5bhp. The two-speed box and carb were also designed by Whaley. “This engine will be marketed as a complete unit suitable for building into even the smallest lightweight frames, and at a very reasonable price.”

“CONSIDERING THAT THERE ARE only a few motor scooters in this country, The Daily Mail’s announcement that a race for scooters is being arranged, appears to be rather absurd.”

“ARE WE TO ARRIVE at the genuine lightweight motor cycle via the scooter? We feel convinced that those who now show enthusiasm for the motor scooter will sooner or later—most probably sooner (!)—demand a seat. It would be quite a sensible demand too! Having obtained a sitting position, we have the lightweight motor bicycle.”

“A MOTOR CYCLIST-CAR DESIGNER: The announcement of a new British sporting car to be designed bv Captain WO Bentley, MBE, RAF, was made in last week’s Autocar. Captain Bentley will be recalled as one of three brotliers Bentley, all one-time enthusiastic motor cyclists, who occupied prominent positions in the competition world some years ago.”

THE AMERICAN ARMY ended the war with 34,800 motor cycles.

“NEARLY A HUNDRED YEARS AGO the making of a Channel tunnel was discussed, and now once more an intense interest has been focussed on the project. All the plans are ready for the work to commence immediately, and only the Government’s consent is needed.”

“AT A MEETING OF THE RAC AND ACU Joint Committee…it was decided that in future ‘motor vehicles with three wheels or less shall be deemed to be motorcycles all other motor vehicles shall be deemed to be ‘motor cars’.”

1919 BAIRD OHC 4
Nottingham engineer RG Baird wasn’t the only enthusiast to build his own bike—but he clearly didn’t do things by halves. Rather than buy a proprietary engine he designed and constructed a 760cc DOHC four with car-style horizontally split crankcase; the camshafts were driven by spiral gears from the half-time shaft. Transmission was via a three-speed box and shaft drive.
1919 GRIFFON
“The peace model Griffon, exhibited at the Lyons Show. It is a lightweight twin, which does not appear to compare favourably with the latest British machines and has all-belt drive and pedalling gear. It will be noted that no silencers are fitted.”
1919 EXCELSIOR LIGHT
“One by one the well-known makers are re-entering the field with new or revised models to satisfy immediate demands. The first of the 1919 British Excelsiors to materialise is a Villiers-engined lightweight. This is the first time an Excelsior has been marketed with a Villiers engine.”

“FEW ITEMS IN THE MOTOR CYCLIST’S equipment are more important than the tool kit. It is essential that the owner of a motor cycle should have enough tools of the right quality to enable him to make any adjustments which may be found necessary from time to time. In the past, the motor cycle makers have got into disrepute owing to the inadequate tool kit they supplied with their machines, but, at the present time, there is a decided tendency among manufacturers seriously to consider this question, and very few, if any, additions will be required to complete the tool kits on future machines…Hundreds of machines are changing hands just now, and quite a large number of them have been bought and sold many times, it is probably true that fully 50% of present-day motor cyclists will require to purchase new tools, because it is not uncommon for a rider to retain the best of his kit on selling his machine. For these reasons, the three tool kits illustrated here will be of interest.”

1919 TOOLKITS
From left: “Maude’s Motor Mart—The C spanner is by Abingdon-Ecco,the cycle spanner is a genuine BSA, and the adjustable wrench a Lucas. The pliers, screwdriver, file, and the other two spanners, also appear to be of first-class quality; there are plans for 3/16, 1/4, 5/16, 3/8 and 9/32in box spanners with a screwdriver tommy-bar. Messrs Jenks Bros—The kit includes two tyre levers, an excellent pair of combination pliers, a screwdriver, three box spanners, a punch, and an ordinary large adjustable spanner, while in the pocket provided there is an oilcan, etc. Tuck and Blakemore—Includes two adjustable spanners, pliers, reversible screwdriver, box spanners, file, punch, tyre levers, oilcan, and belt punch.

“MOTOR CYCLIST’S LOSS OF NOTES: Despite advertised rewards, CR Collier has obtained no tidings ot a bundle of notes, value £116, that he lost after the sale ot a motor cycle at Plumstead.”

“UNUSUAL INCIDENT IN DUBLIN. Two RAF lieutenants had an unpleasant experience recently in Dublin. They were being driven in a sidecar by a sergeant of the RAF when they came into conflict with a crowd watching a funeral cortege. Misunderstanding the instructions of a constable on point duty, the sergeant did not stop, and the onlookers expressed themselves very strongly on what they considered to be an intrusion among the mourners. The sergeant was dragged from the machine, and sticks were brandished over the heads of the officers. Some members of the crowd took the machine to the quay wall and dropped it into the Liffey.”

1919 PATENT AWIF THE FOLLOWING REVIEW OF PATENTS strikes you as delightfully whimsical it’s because it was written by BH Davies whose nom de plume was, of course, Ixion: “A few years ago there was a regular craze for a hobby known as ‘bent ironwork’. Enthusiastic amateurs purchased bundles of strips of soft iron, a pair of shears, and a pair of flat-nosed pliers. They then proceeded to turn out candle-holders and easels for photographs, which they presented to meek i-elations or dumped on unsuspecting bazaar committees. A crop of homicides followed, because, although such orna- ments were beautiful when suitably gilded, it was quite impossible to keep their twined interstices clean, and irate housewives were consequently led to break up many happy homes. The motor cycle will ultimately perish for similar reasons, unless something is done to round ofi its innumerable spiky projections. Up to date, Mr RW Coan has ploughed a lonely furrow, in advertising ‘Clean Crank Cases’. Now Mr Norton comes to his aid with a patent for cowling in the top half of the engine. Fundamentally, of course, Mr Norton’s suggestion is of technical value. The rear wall of an air-cooled motor cycle cylinder lies in a patch of dead air. As the sketch shows, Mr Norton pro poses to fit a belt-driven fan at one side of the engine cowling, and the rear wall of such a cylinder will be as well cooled as the front. He should presently offer us a cylinder cooled so evenly that distortion is imperceptible; needless to say, no motor cyclist has ever owned an engine of which this could be said. Riders will egually appreciate the ease of cleaning which such a design confers…IN THE EARLY DAYS of motor cycling my chief hoodoo was the valve gear. It was a common occurrence for the timing pinions to strip their teeth, and one rider lost a fine chance of an End-to-end record because his valve tappets ate through the case-hardening of the cams and ploughed them down into circular discs [the rider was Ixion; the full story, and it’s a doozy, is in the End-to End feature appended to 1911 in this timeline]. Rocking levers were presently interposed between the cam and the tappet to distribute the wear and furnish better leverage. I hope the patent under consideration may be understood to herald an overhead valve Norton engine in due course. However that may be, Mr Norton proposes to use a laminated valve spring to act as a cam lever for an overhead valve as shown…THE LAST PATENT IN MY WEEK’S BUNDLE soars so far towards the ideal that it deserts the practical sphere, so far at least as motor cycles are concerned. It is the invention of Mr Alfred Lewis, and when I say that it amounts to an infinitely variable gear, which Automatically changes its own ratios in response to varying loads, every reader’s mouth will begin to water. But if I add that this eminently desirable effect is obtained by means of an epicyclic train, which controls a second epicyclic train by means of a friction drive, and I further so on to say, with the Queen of Sheba, that the half has not yet been told you, and that the editor cannot spare me space for the diagrams needed to explain all the cams, springs, etc, concerned, well, the order of the day becomes, ‘Carry on with a common or garden Sturmey-Archer!’”

1919 NORTON PATENTS AW
“JL Norton’s engine cooling device. Patent No 122,072. 5/3/18…JL Norton’s mechanically-operated overhead valve. Patent No 122,379. 24/8/18.”

“BAT REDIVIVUS: After having been dormant for several years during the war, the Bat Motor Manufacturing Co is again taking up the manufacture of motor bicycles. Mr TH Tessier will no longer be connected with the firm, but he has been of considerable assistance to it in the process of reorganising, while Mr ST Tessier, his son, will be responsible for the design and production of Bat motor bicycles in the future. Bat motor bicycles have been on the market continuously since 1902, and it is pleasing to note that this well-known name will again figure in the motor cycle world, and that one of the Tessier family, so long connected with this make, will remain a member of the firm. ST Tessier, who has been serving his King and country through the whole period of the war, was a consistent and successful exponent of Bat motor bicycles up to 1914.”

1919 WOLF JAP
A bike and its engine: The peacetime Wolf-JAP used JAP’s well proven 292cc 2½hp engine was uprated to 2¾hp with more extensive cooling fins and chain mag drive. What’s more, “the crank case of this engine is now entirely oil-tight”. The Wolf also boasted a two-speed countershaft gearbox with kickstart and clutch, Lion magneto, Amac or Senspray carb, Druid forks, Lycett saddle, aluminium footboards and two toolbags with a full kit of tools. The Wolf was also available with a 4hp JAP or Villiers two-stroke.

“THE SPEEDS OF THE FUTURE: Before long this old game will reopen, and as we have now got plenty of real engineers in the motor cycle game, and air-cooling has got so far since 1914, we shall see some astounding stunts. There is no reason why the short flying start records should not be fought out with four valves per cylinder and compression ratios as high as 6½ to 1. The cooling will stand it nowadays, and patent fuels, embodying benzole, do not object to super-compression. I know one engine which makes standard aero plugs wilt like tallow candles in a New York summer, and I fancy there will be plenty of fun. But I am sorry for the boys who have to sit these mile-eaters. A flying mile or kilometre is not so bad, though the tiniest hesitation or unsteadiness at 80 or 90mph means immediate death. But the idea of an hour record on two-wheelers at such speeds as are now technically possible is frightful on the very best of tracks; and I am not at all sure that the BMCRC ought to allow long distance motor cycle records at such speeds.”

“COUNTING THE MEMBERS of affiliate clubs, the total strength of the ACU is now 30,000.”

“PETROL PROFITEERING: THE HOME OFIICE has circularised the police authorities throughout the country asking them to do their best to see that the vendors of petrol comply with the requirements of the Petrol Retail Prices Order. Those of our readers who are overcharged should communicate with their local police.”

1919 CORK&DMCC RUN
“To the Cork &DMCC is due the honour of being the club to hold the first post-war reliability trial, which was held on St Patrick’s Day.”

“SCOTTISH OIL MINE CLOSED DOWN:
The Addiewell oil mine, Linlithgowshire, one of the pioneer shale oil mines in Scotland, has been closed down indefinitely owing to labour troubles.”

“RECENTLY, AT MORTLAKE POLICE COURT, a reader of The Motor Gycle was summoned for using a ‘motor car’ with a motor cycle licence. The summons was issued, by the Surrey County Council, who averred that his hand-propelled tricycle, to which an Auto-wheel was attached, was a motor car, and therefore required a full motor car local taxation licence. The Surrey County Council was also supported by the local taxation licence authorities. Our reader (who is a cripple) defended the case himself, and it was unanimously dismissed by the bench of magistrates.”

“AT THIS PERIOD OF THE YEAR many used motor cycles change hands. Our readers are advised to exercise every care in purchasing second-hand machines, and to deal only with firms of high reputation, or, in the case of private advertisers unknown to them, to insist upon dealing through our Deposit System, which is designed to protect their interests, unless the machine can he tested before purchase. Dates of manufacture should be verified, when possible, by taking the engine and frame numbers and sending these to the makers. No firm or person whose methods are proved to be unsatisfactory is permitted to advertise in The Motor Cycle.

1919 2 COMBOS
Left: “Mr Rex Mundy, the ACU representative, now touring the country inspecting ACU hotels. Mundy’s mount is a Victory model Matchless.” Right: “DH Noble (late lieut. RASCMT) is back again at the Rover motor cycle works in charge of the testing department. Noble was one of the Rover competition team.”

“THERE IS A DEARTH OF TAXICABS in Paris, and, as a remedy, the French capital is to have a public service of sidecars. Probably the machines used by the American Army will be acquired and equipped with adjustable hoods for the protection of the passengers.”

“SPRING IS BRINGING OUT a remarkable collection of antiquities. On main roads in the Midlands machines of other days were to be seen taking the air. A Quadrant of approximately 1905 date was undergoing drastic ministrations to its interior, having failed to drag a sixteenth century sidecar up a 1 in 100 gradient. Strangest sight of all was a James of the ‘forks on one side only’ variety going fairly well. Our hopes of seeing a Singer front wheel driven tricycle were disappointed.”

1919 SUNBEAM AMBOS
A batch of five 8hp Sunbeam ambulances from the Western Front were auctioned at Aldridges, London WC2; and 200 solos went under the hammer at the Royal Agricultural Hall, Islington.

“ESSEX MC: THE DINNER ARRANGED to be held at Frascati’s Restaurant on Saturday, April 5th, will undoubtedly be a great success, nearly a hundred tickets having been disposed of. The opening run arranged for April 13th will take place to the Green Man, Harlow, leaving Headquarters, the Eagle, Snaresbrook, at 11am. Lunch will be provided at 3s 6d per head, and all members who propose attending should advise the captain, Mr FA Applebce, at 208, Great Portland Street, W. The committee have obtained the first refusal from the Southend Corporation to hold a race meeting upom the promenade, and, subject to sufficient support being promised, a meeting will be run during the summer.”

“THE HALL MC, STARTED IN connection with the Dartford Ironworks, of which membership is confined to members or employees of the firm of J&E Hall, has at present about forty members. The opening run was to Wrotham and Sevenoaks on Saturday, March 29th. It is proposed to hold a paperchase in the near future. The club has been affiliated to the ACU.”

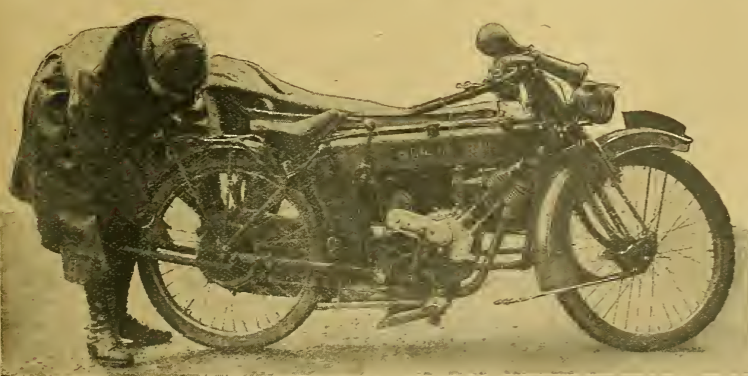

1919 LOCK P&M
“Owing to the large number of Government cars and motor cycles lately stolen, all drivers are supplied with a padlock and chain, which has to be used whenever the machine is left unattended. The motor cycle to which a WRAF is seen fixing the lock is a P&M.”

ACU SECRETARY TOM LOUGHBOROUGH summed up the joy of motor cycle sport: “The fact that pedal cycle racing has lost its old grip on the public and is now confined to a comparatively small, if enthusiastic, circle has led some dim-sighted critics to foretell a similar fate for motor cycling competitions. If the motor cycle had reached the same finality in design as the push cycle of ten or even fifteen years ago, there would have been some excuse for such forebodings. Even so, there could be no comparison between the two forms of sport. The combination of skill and nerve on the part of the rider, the perfect ‘tune’ of the machine, the pure physical joy of speed and power that in a car becomes impersonal, and in the air is lost altogether, puts motor cycle racing in a class by itself, and will keep it there.”

1919 DREAM BIKE AW
“A 1921 machine de luxe—an engineer’s ideal: The entire framework, including forks, petrol tank, mudguards, valances, carrier, tool and accumulator boxes, is made up from thin sheet steel stampings and welded together with flush joints wherever possible…A 6hp V-twin is the power unit most favoured by the writer…it would have such features as overhead valves, detachable heads, outside flywheel, balanced crankshaft, cast iron cylinders, and aluminium pistons, the capacity being in the neighbourhood of 800cc…lubrication should be entirely automatic with the whole of the oil carried in the sump…Chain drive throughout is suggested for the transmission, and a three-speed gear box (sliding dog type) with a simple form of dry plate clutch…In order to give the maximum of accessibility, the engine, gear box, and clutch are mounted complete in an aluminium sub-frame, which should be arranged to slide sideways on guides after the rear chain, controls, and silencer have been uncoupled. By this form of construction the complete outfit can be bodily lifted to a bench and overhauled at leisure…On the subject of brakes, the internal expanding type for front and rear seems the best…the two brakes might be interconnected and operated from a single pedal through a compensating device.”

MAJOR SIR HENRY NORMAN, Bart, FRGS, AIEE, MP, formerly Liaison Officer of the Ministry of Munitions with the Ministry of Inventions in Paris and a member of the Legislation Committee of the RAC, was not, on the face of it, a likely customer for a stand-on Auto-ped scooter. Nonetheless, The Motor Cycle reported, “There is no doubt that Sir Henry is extremely enthusiastic over his motor scooter.” As Sir Henry explained: “Lady Norman saw it in an American paper, and said, ‘That is the very thing I have longed for all my life’…when I had finally obtained it Lady Norman rode it in the first five minutes down the Portsmouth Road…I think it is a very useful little vehicle…So far as its mechanical design is concerned, I called in my friend, Major Low, and together we took it to pieces, and found it to be hopelessly inaccessible and poorly made. I am confident, however, that a motor scooter, properly designed, has a big future…Major Low and I have taken out several patents, and in a few weeks’ time hope to have a sound design on the road.” [This wasn’t as unlikely as it sounds. When wasn’t doing his bit in the RAF, Sir Henry’s chum was better known as Professor Archibald ‘Archie’ Low. He went on to spend 24 years as chairman of the ACU, chaired the RAC motor cycle committee and raced successfully at Brooklands. You’ll find more about the prof in the gallimaufry.]

1919 AUTOPED LOW
Messrs Norman and Low with the Auto-ped. Lady Norman liked the diminutive American scooter, but the chaps reckoned they could do better. Major Auto-ped users in its American home included the US Post Office and teenage tearaways who became adept at riding their Auto-peds down narrow alleyways to escape pursuing police cars.

“THE QUESTION ‘WHY STAND?’ will not be asked by potential purchasers of the Tankette, for, although the germ of the idea behind this little vehicle was the scooter, it is provided with a seat, and approximates to the lightweight motor cycle more than to the Auto-ped. Weighing 135lb, and measuring 6ft 5in over all, the Tankette will be marketed by Messrs Ronald Trist and Co of Watford, who for many months have experimented with various forms of scooters, commencing with a small toylike machine with 10in wheels…it can be regarded more as a competitor of existing lightweights than of the scooter proper. It is proposed to fit a 2¾-3hp two-stroke engine, located at the rear, and driving to a countershaft gear placed before the wheel, and hence back again to the rear hub…The frame is constructed-of flat steel strips about 1¾x3/16in, built up so that there are six members parallel at what would be its weakest point. Both front and rear wheels are sprung on leaf springs, the centre of the pivotal rear stays being coincident with the centre of the driving sprocket. A twin wheel is used at the rear, fitted with two 20×1¾in pneumatic tyres, with a free connection from one to the other, so that on going round curves the air pressure remains constant and the two friction points where the tyres meet the ground are maintained. Both tyres can be pumped from one valve, but, if a puncture occurs, the connecting cock may be closed and either tyre may be inflated independently…By driving air through vanes in the rear mudguarding, the back wheel is made to act as a fan…the embodiment of side wheel ‘runners’ was decided upon after long consideration, and that they were thought necessary because the machine would be used mostly in towns and suburbs. This arrangement permits of the machine being stopped in traffic with the rider still seated and the engine running idly.”

1919 TANKETTE
“The Tankette—a link between the scooter and the motor cycle.”

EVEN IXION HAD BEEN PONDERING the scooter conundrum: “I have always found it difficult to take the motor scooter seriously, but you can never say what is going to happen when society people unearth a new fad. The picture papers put a camera man in waiting; then the universe begins to gossip, and the toy has gone into mass production before you have time to look round. The motor scooter has hesitated for some time between remaining a roller skate or expanding into a lightweight motor bicycle. At the moment it is coquetdng with the more ambitious alternative. It has certain obvious advantages over, say, a Baby Levis or Triumph. It costs some £20 [£700 today] less at a time when cash is distincdy shy. It dodges the odium attached to pukka motor cycles in the eyes of the smart set. If it goes wrong, you can tuck it under your arm or put it in a cab. In some parts of the country the police apparently permit it to curvet on the pavement. On the other hand, it can never, never be used for touring in its original form, and is unlikely to commend itself for trips exceeding five miles at the outside…the real novelty of the motor scooter, as compared with lightweights, is that it presents itself frankly as a boulevard runabjut and nothing more: it has no Land’s End-John-o’-Groat’s nonsense about it…My own verdict is that the scooter cannot stay where it is. It may ultimately shrink back to its original dimensions, and revert to being a sort of pocket motor bicycle for shopping purposes: or it may swell out into a form indistinguishable from the cheaper lightweights.”

“OF THE MANY MACHINES DESIGNED as sidecar outfits, very few have embodied a brake on the sidecar wheel, and the 1919 model of a leading make upon which this was a feature before the war is now being reintroduced without it. With the tendency for sidecars to be heavier as refinement after refinement is added, the necessity to equip the sidecar wheel with a brake appears to be obvious, especially when the average front wheel brake does not give the service it should. It would appear that comparatively few experiments have been made by manufacturers and, if the matter has been given consideration at all, the question has been dismissed as being one fraught with many difficulties. By others it is thought that, if one rear wheel brake is sufficient to hold a machine on a hill, the increased cost of production of the sidecar brake is not justified. This rather appears to be narrowing the margin of safety, as, if the back wheel brake fails to function, the driver has not complete control of the machine. It is certain that a really satisfactory sidecar brake has yet to be evolved, and, although our own expenence with sidecar brakes has been far from encouraging, we see no reason why a successful design should not be forthcoming if designers will give the matter proper attention. We think one of the mistakes of the past has been the practice of having separate controls to the brakes on sidecar and back wheel, and also in so placing the lever that the former could be operated by the passenger. From actual experience we know it is most undesirable to permit the passenger to use the brake, as the least pressure upon the lever, if unexpected, instantly causes the machine to swerve to the left. It is clear that for a sidecar brake to be successful it must be interconnected with the rear wheel brake, and that it must have a balancing or compensating action, and an easy and accurate means of adjustment.”

PROBLEMS WITH THE SUPPLY of spare parts led one angry enthusiast to write: “A machine may be the fastest, cleanest, lightest, handiest, most powerful, cheapest, quietest, and best climber in the whole wide world, but when it stands idle for the six finest weeks in the whole year, waiting for a fork spring or some other trivial but vital part, it is not one-tenth part as fast as 1¼hp Dinkie, nor so satisfactory, and the owner will never buy another, and he will take care to spread the news among his friends, and will eventually sell the machine to his enemy.”

1919 FUEL AW

“FOR YEARS THE BRITISH MOTOR INDUSTRY has been deeply concerned over the supply of those fuels on which it is primarily dependent for its existence. Thirteen years ago, complaints of the high cost of petrol were rife, and experiments were conducted with alcohol, which, mixed with benzole, is an excellent fuel for petrol engines, but, although the trade and many private motorists saw the possibilities of the fuel, the Government either could or would not. And so, as a result of Excise restrictions, alcohol was effectively and permanently barred. Benzole was the next palliative, and in 1913, when the price of petrol had risen to the unprecedented figure of 1s 6d per gallon, a certain amount of the home-produced coal product was on the market at a few pence cheaper. All motorists liked it—in fact they could do nothing else—but the benzole producers found a better market abroad, and most of the English-produced benzole went to Germany, where it developed the great dye industry and contributed to the accumulation of huge stocks of explosives! The Del Monte process came next, and no one seems to know clearly why this gradually fell into oblivion, for its prospects were quite rosy. It was a thoroughly commercial proposition for the production of cheap motor fuel, and, if the truth ever becomes known, it may appear that the petrol combine was at the back of its early demise. [As early as 1913 an Aussie newspaper had lauded the Del Monte process: “It is about time this country realised that it possesses the equivalent of the oilfields of America, Russia, and other countries so favoured by Nature, in its enormous coal resources. Under a new and simple process, known as the Del Monte process, the extraordinary quantity of eighty-five gallons of oil per ton have been obtained. The process consists of distilling coal at a low temperature, about a half the heat required in the preparation of coal-gas. It is stated on the authority of the London Times—which describes the process as a ‘revolutionising invention’—that coal waste, coal dust, and slack may be utilised under this method, also certain descriptions of coal which…are unsuitable for general use, and therefore of little value…The process is shown in operation at Barnes, near London…The oils obtained are of the paraffin series, similar to crude natural petroleum. They lend themselves like the latter to ‘cracking’, or breaking up into the lighter spirits which the high-temperature produced oils failed to do…From the tests applied to the motor spirit obtained under the Del Monte process, it has been proved that the spirit gives an increase mileage per gallon above that obtained from petrol, because of its greater thermal value…Little or no adjustment of the carburetter is needed.”] Now that the war is over, the authorities admit the real national importance of a home-produced fuel for road transport vehicles, and they are encouraging all enterprises that hold forth any serious promise of success. An experiment with alcohol is being conducted on London ‘buses, and, if it is a success, it may be hoped that some relaxation of Excise restrictions will result, so that the artificially inflated cost of alcohol will undergo useful modification. A process that is entirely new to this country may be expected to fructify in the course of the next few months, and if it does the effect on the fuel situation as a whole should be considerable. Mr Greenstreet has had working in America for some years his patent process for the conversion of heavy hydrocarbons into the lighter members of the same series, and also for the removal of all sulphur from fuels that have hitherto been unusable in internal combustion engines on account of their too great sulphur content, sulphur being injurious to both valves and cylinders. From crude petroleum oil the process will obtain about 65% more motor spirit than has previously been possible, and the same holds true of its use with shale and coal tar oils. From substances as dissimilar as peat, sawdust, and coal tar by-products, a motor spirit of first-class quality has been obtained, and a useful feature of the process is that the boiling point of the resultant fuel can be controlled. In other words, the process will give a fuel to satisfy any reasonable stated requirements…Oil that has been discarded by the ordinary petroleum distillers as containing no more motor spirit ie, crude oil from which the lighter members have all been extracted by methods in ordinary use, have been made to give a yield of as much as 40% of first-class motor spirit! The plant is comparatively simple and cheap, and can be erected almost entirely from materials which are likely to be in stock. Sir Boverton Redwood is a petroleum expert who has occupied a most important Government position with regard to fuels during the war, and upon his words unquestioned reliance may be set. His opinion of the Greenstreet process is that if it had been working and fully established in England before the war started we should have been entirely independent of foreign imported fuels!”

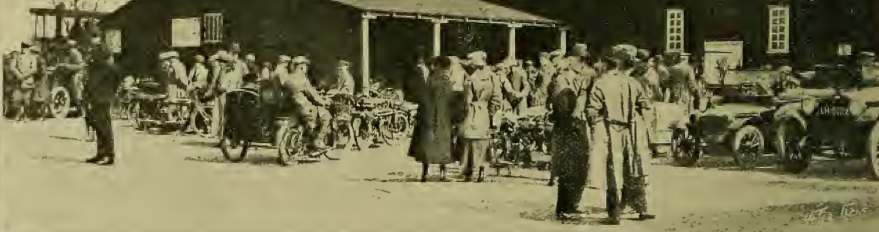

1919 MCC OPENING RUN
“The MCC opening run to Hatfield last week end. Many new machines were in evidence, together with a large number of well-known motor cyclists.” Among them were a new design of spring-frame Chater-Lea asnd the latest Power Plus Indian with a Splitdorf dynamo and twistgrips with Bowden cables in place of rods to control the carb and mag.

“WHILE EVERYBODY IS TALKING BIG about ‘mass production’ and the ‘lessons of aero engine practice’,” Ixion warned, “I think we are in some danger of forgetting two firms to whom the industry owes a debt which is unforgettable. I refer primarily to the Triumph Co, who in my opinion rescued motor cycling from a slump due to bad design which threatened to engulf it a few years ago; and, secondly, to the Douglas Co, whose perseverance made the first twin a practicable machine. I am old enough to remember how two separate firms tried to make a job of the flat twin, and after struggling along in obscurity for a season or two surrendered. Then the Douglas people, who were then best known as makers of shoe trade machinery, took up the old Barter and Fairy patents on sound engineering lines and with the essential capital, with the result that the flat twin now challenges the once monarchic single…Neither of them has yet whispered to the public of anything but WD models. I expect each factory has a rod in pickle for those audacious mushroom firms which are plunging into mass production. Personally, I hope to welcome something of real interest from both concerns.”

“WE HAVE FREQUENTLY WANDERED INTO CONFUSION IN RESPECT OF LIGHTWEIGHTS,” Ixion opined. “At one time a ‘lightweight’ motor cycle was a machine which was catalogued at or near 100lb. To-day it means a cycle which has an engine of less than 400cc but which may tip the scale at 2½cwt. This is simply ridiculous. In the so-called light car world, the real objective of classification is initial cost and running cost. Whatever term is used for the ‘juniors’ and the ‘junissimuses’ (I am an old man and have forgotten my Latin) should guarantee that the car so christened is cheapish to buy and very cheap to run. In the sphere of lightweight motor bicycles, price is not the main objective. If some stout old party who has not viewed his toe-caps for years hears a cycle described as a lightweight, it is weight which is his primary interest. He wants to be sure that he will not have an apoplectic stroke when he has to hoike the carrier backwards to get the machine on its stand. He may have no ambition to carry it up steps, but at least he will be depressed if it pushes him over on his back when he rashly lets it lean against him. At present, press, trade, clubs, and enthusiastic conversationalists befog this sporting old party quite hopelessly. For when Jones brags that his ‘lightweight’ can be kept on the mantelpiece, he is talking of a Levis Popular, weight 110lb: and when Brown talks of ‘lightweight’, he is describing deeds of derring-do on a 1920 ‘bus with spring frame, lighting dynamo, and Zeppelin-aluminium-girder side-car, weight 5cwt all on. I am not so crazy as to suggest that low weight is the Alpha and Omega of a ‘lightweight’. Comfort, hill-climbing, reliability, and cost are all factors in the demand. But the term is grossly misapplied at the present time; and when so many slim girls and impoverished elderly papas with equators are nibbling at our hobby, it is time we became more precise in our diction.”

IXION HAD A VIEW ON EVERY PART of a motor cycle, including its wheels: “I should be very sorry to say good-bye to the wire wheel for some reasons; it is the only part of the average machine which has a delicate and fairy appearance: and a speedster should not look too lumpish. The wire wheel is elastic to a certain degree, and so makes for comfort: it is cheap to make, and easy to repair, unless, of course, you throw it under a traction engine, or bend it into a true lover’s knot by ramming walls with it. But it is a beast to clean. Do not mistake me. I never clean my machines. I coat them with vaseline on delivery, and when selling day comes, one good wipe over brings away the vaseline plus the filth of ten thousand miles. But saner owners, I am credibly informed, spend an hour each evening going over their ‘buses with metal polish. Moreover, the general public considers motor cycling a filthy pastime, and countenances speed limits and police traps because it sees us careering about with mud on our spokes, which is far worse than a Bacchante with vine leaves in her hair. So—strictly pro bono publico—I plead for a pressed metal artillery wheel, which shall be light, strong, resilient, and easily cleaned. In Mr Sankey’s ear I breathe interrogatively the one word—‘Duralumin?’”

1919 MILLHOUSE
“A meet of enthusiastic Millhouse (Sheffield) motor cyclists, who met last Saturday for the ‘first run’ of a club that is about to be formed in the district. Reading from left the first four machines are new model Diamond, Douglas, Rudge and Enfield.”

“WITH THE ADVENT OF SPRING, we of the weaker sex always give much thought to the suitability, or otherwise, of various types of dress. I remember seeing in the motoring press recently photographs of an American lady rider wearing a low V-necked blouse. This is unpractical and dangerous to health. To ride in such would be at least courting pneumonia, but, as I said before, the photographs were American, and funny things are done ‘over the water’. After all, one can ride in unsuitable dress if one is so inclined. A footballer could play in evening dress. One must use one’s own discretion; nothing teaches so well as experience.”

“THE SAROLEA ENGINE HAS BEEN KNOWN in this country for quite a long time as being a very satisfactory Belgian production. The firm of Sarolea, at Herstal, near Liege, has been working hard since the Armistice to reorganise its factory, which was considerably damaged during the German occupation, and the firm is hoping very soon to begin to manufacture engines and motor bicycles once more. Towards the end of May it is hoped to produce a 4hp single-cylinder motor bicycle, 85x97mm [550cc], fitted with Sturmey-Archer countershaft gear, transmission by chain and belt, and all the latest improvements. This information has been sent to us by M Fagard, one of the Belgian representatives of the International Federation of Motorcyclists. He states that the speed with which Belgian motor cycle firms can resume their pre-war activity depends to a large extent on the assistance the Allied Governments can give them in furnishing them with the necessary raw materials.”

1919 BLACKBURNE 8HP TEST AW

“ONE DAY LAST WEEK, on a very faint line, Mr JS Holroyd was heard to inform us that the new 1919 8hp Blackburne sidecar combination was ready for the road, and, beyond hearing something to the effect that he would like us to come and see him try to break it up, little more could be heard. We arrived by road the next morning, and found the new Blackburne quite ready for the trip. The outfit had only just been completed, and all it had had in the way of a test was a run to Gosport and back to Tongham. So far as the motor bicycle is concerned, the engine is a 60° 85x88mm 998cc twin, with detachable and interchangeable cylinder heads, and that most noteworthy of all Blackburne features—an out-side flywheel. Particular attention has been paid to the silencing of the engine, both as regards the exhaust and also as regards noises from the valves and timing gear, and considerable success has been attained in this direction…From Tongham we made our way along bumpy roads, which brought us eventually to Elstead.

1919 BLACKBURNE 8HP
“The new 8hp Blackburne twin presents a very handsome appearance.”

From here we proceeded in the direction of Churt until we reached a pretty spot where a steep, rough, and narrow track, obviously not meant for wheeled traffic, descended into the valley…In a few minutes we were in a part of Surrey the nature of which could never be guessed: a wild district of unsurpassable beauty, unsullied by signs of human habitation, and devoid of all roads. True, there were tracks, and these were similar to the mule paths that exist in the Vosges and other mountainous districts. Our descent was down one of these steep tracks. The surface was sandy and intersected by ruts, gulleys, roots of trees, and great stones, the avoiding of which (when possible) called for every atom of skill the driver possessed. Such surfaces excited rebellion in the hearts of certain competitors in the 1914 Six Days Trials, yet they are of a kind met with in our Overseas Dominions, and it is for these countries that so many British motor cycles are required. Messrs Burney and Blackburne realise this, and their products have the high ground clearance, the 28in wheels, and the power to combat these conditions. The top gear ratio, we may mention, was 4¼ to 1…we charged up the hill over a surface similar to that described above on to a gradient of about i in 5. Just short of the summit the combination almost came to a standstill owing to back wheel slip, but heeling over to a dangerously steep angle, so abruptly did the track slope away, and with a veritable precipice on the left, the engine gallantly stuck to its work and surmounted the gradient. The track now became less steep, but no better as regards surface; notwithstanding, Holroyd changed into second, climbed a short steep pitch, and then, to our amazement, left the track,

1918 BLACKBURNE 8HP 2
The Blackburne’s designer took the men from The Motor Cycle far from the beaten track.

slewed round to the right, and charged up the hill over the gorse. As we anticipated it would, the engine resented this treatment and stopped, but Holroyd was much surprised till he discovered he had omitted to change down to first speed. This was a fault which was soon remedied, and we were again tackling the slope. A glorious view unfolded itself, but for the moment we were occupied in regarding the hollows, bumps, and ridges which were wringing and straining the sidecar frame, but nothing happened. The Blackburne did all that it was asked to do, and did it well, and part of it over a track which no car, not even a Ford, could have negotiated owing to its narrowness…the real test finished up with a genuine ‘freak’ hill-climb. The surface was as before, the gradient 1 in 4 or worse; the power was there but adhesion failed, and a boulder blocked the way, so what would you? Resuming normal conditions we took the helm and returned to Tongham through Tilford and across the Hog’s Back. This gave us the opportunity of appreciating the new Blackburn’s good qualities to the full. We found the engine to be beautifully balanced and its smooth and silent running appealed to us most strongly. The engine possesses wonderful powers of picking up speed on a gradient without change of gear; this is clearly due to the outside flywheel, which enables power’ to be maintained at slow speeds, while the fact that there are no internal flywheels retarded by the viscosity of the oil clearly adds to the efficiency of the engine. We are left with the impression that the new Blackburne has made good, and will be a mount which will be much sought after, not only in this country but in the Colonies, and will go far towards recapturing the trade, which, owing to the war, has been allowed to slip into allied but foreign hands.”

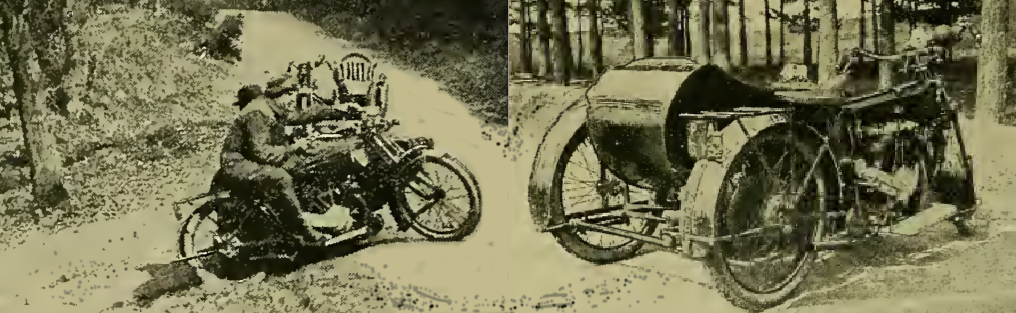

1919 BLACKBURNE 8HP 3
“Negotiating sharp and steep turning into the Churt road. Rear view of the Blackburne outfit; the width of the mudguards is a commendable feature.”

AW WALL, INVENTOR OF THE WALL AUTO-WHEEL, patented designs for a four-cylinder motor cycle engine made up of stamped steel sheets. Major components including cylinders, head, crank case, crankshaft, pistons and conrods had all been made to Wall’s design: “The journals and crank pins are formed by stamping a long spigot, in the centre for the journals and eccentrically for the pins, from each of several flat steel discs. Two opposed units, with spigots which telescope one within the other, constitute each journal or pin, and the two and also one disc of the next unit are held together by, roughly speaking, burring over the ends of the spigots. Provision is made for preventing rotational movement between the telescoped parts, otherwise, of course, the shaft as a whole would be twisted all shapes by the torque it must convey to the flywheel.” Claimed advantages included “extremely low cost, very light weight, unusual strength, and suitability for mass production.”

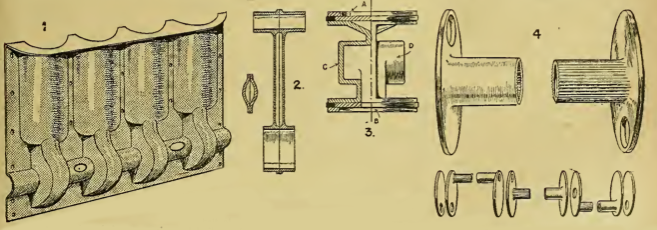

1919 WALL STAMPED ENGINE
“Fig 1—A single pressing that will form one half of the cylinder “block” and crank case. Fig 2—Section of the connecting-rod built up from two pressings. Fig 3—A piston built up of steel stampings; (a) head (b) skirt, (c and d) halves of body. Fig 4—Units of the built-up crankshaft.”

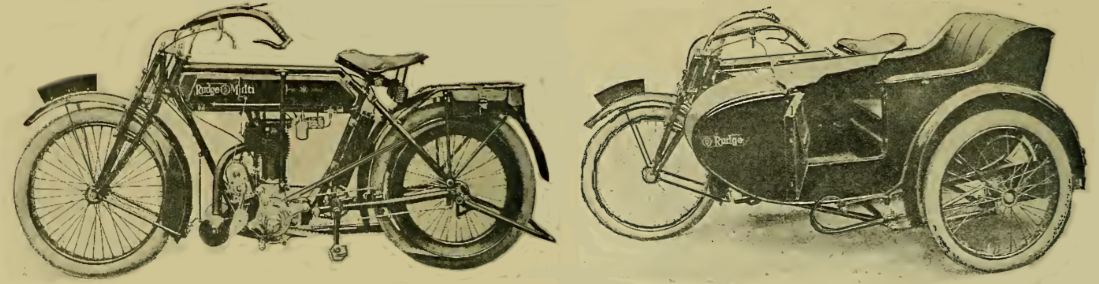

1919 RUDGE PEACE
Having completed remaining government contracts Rudge lost no time in getting the Multi back into production. There were few changes from the 1914 model, but oil was carried in a separate tank, making room for more petrol and the crankcases had been cleaned up to lose dirt traps. The sidecar had been enlarged; as well as the usual locker under the seat there was extra storage space behind the seat.
1919 REX BIG SINGLE
“So far as singles are concerned, it is about five years since an entirely new design was introduced. Therefore, the Rex Model 77 4hp 550cc sidecar single undoubtedly will create a great deal of attention…It has been designed throughout for passenger work, and is, consequently, heavier than most machines of the same capacity which are designed as dual purpose mounts. The requirements of the Overseas markets, too, have been borne in mind.”
1919 OMEGA
“The new Omega is fitted with the latest type 2¾hp JAP engine, with the magneto in the forward position; otherwise the machine differs very little from its predecessors…a two-speed countershaft gear is a standard fitment. The machine is supplied as a touring model with raised handle-bars, and as a sporting machine with semi TT bars.”

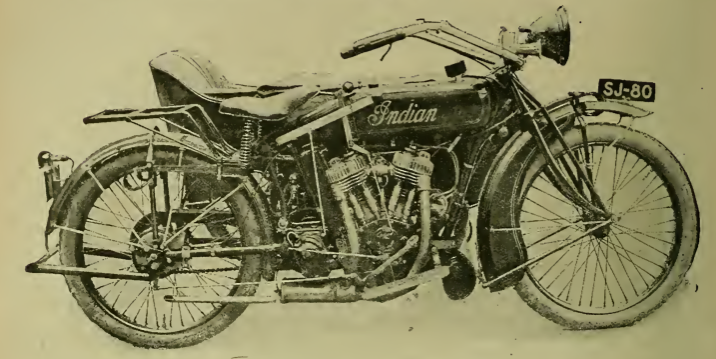

1919 POWERLUS INDIAN
Innovations on the 980cc Powerplus Indian included a dynamo in front of the engine (protected by a substantial cover that doubled as legshields); a combined volt/ammeter on the top tube; a larger silencer, wider brakes and twistgrips for the throttle and advance/retard.

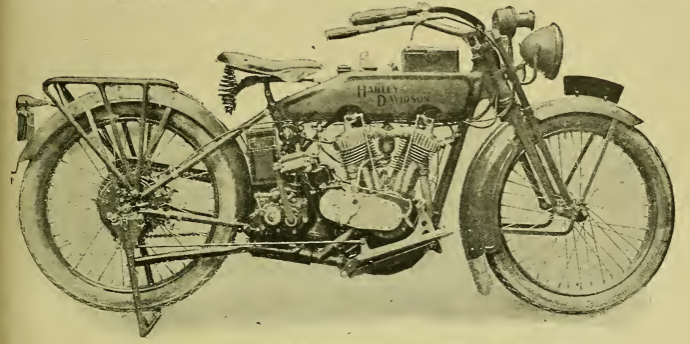

1919 HARLEY
Harley-Davidson’s 988cc IOE sidecar machine gained a Remy dynamo, and ignition coil and Exide battery with elctric lights and horn. The front end came with a mudflap, front-wheel stand and handlebars secured by “duplex tubes, held in two strong clips”.
1919 CHATER-LEA SPRINGER
Chater-Lea came up with tidy rear suspension: “The sprung portion of the frame consists of a triangle, one end of the base being hinged on to the rigid portion of the frame, while the other end of the base carries the rear wheel. From the top of the triangle to the fixed portion of the frame there runs a laminated spring, the bottom end of which is rigidly fixed, while the top end slides in a slot. The sidecar wheel is suspended in a very similar manner.”
1919 MANCHESTER SPEED
“Competitors at the start of the Manchester club’s recent speed-judging competition. This well-contested trial took place over a course of twenty-five miles. The motor cycles shown include a Douglas, Levis, Triumph, and Indian.”

“A 50LB MOTOR CYCLE: the Zephyr auxiliary motor attachment for pedal cycles, which has been evolved by the London and Westminster Industrial Syndicate, is an interesting and ingenious little power unit. The motive power is a 110cc two-stroke engine of about 1½hp attached to a horizontal tube, the forward end of which is fixed to the seat-pillar, while the rearward end is made adjustable on the threaded extension of a pair of supplementary back forks secured on the rear wheel spindle of the bicycle. There are two sprockets between the flywheel and the crank case—one for the drive to the CAV magneto, the other for a chain- driven friction pulley…The pulley and its sprocket are mounted in an adjustable bearing at the lower end of a swinging arm controlled by a Bowden wire from a lever on the handle-bar. An ingenious compression release on the engine is worked by an inverted lever under the left handle-bar grip, and the right-hand lever controls the front rim brake. The rear brake is of the back pedalling variety…We journeyed to Brighton to try the attachment and the long hill chosen for this purpose had a gras]dient of about 1 in 14. The Zephyr climbed the hill at a good 20mph, which was quite a creditable performance…One attempt to restart on the hill failed, but on a second occasion a successful start was made. No doubt the Zephyrs will meet all the requirements of those for whom they have been designed, and will do much good missionary work among cyclists, who ultimately will become owners of higher-powered machines. Their sphere, however, is not confined to this section of the community, and we anticipate that, in this mechanical age, a large number of people win buy it for its general utilitarian conveniences. Many partially disabled men, who are physically incapable of strenuous pedalling, will also find a motorised bicycle a great assistance.”

1919 ZEPHYR
“The light weight of the Zephyr motorised bicyce will make particular appeal to ladies. The Zephyr attachment embodies a two-stroke engine of 110cc and friction transmission. The Zephyr is fitted with a stand having a long leg, which is stayed by two straps hooked on to eyelets on the near side wheel stay. When out of position it is strapped to the top tube.”

“EASTERTIDE EVENTS: THIS EASTERTIDE several important events took place in the motor cycling world. In ordinary circumstances, The Motor Cycle would have commented upon and illustrated the events in this issue; but in this instance we have refrained, out of consideration for our works staff. Few realise the task of printing a journal with a huge circulation such as The. Motor Cycle enjoys. Incidentally, it has set up a world’s record in automobile journalism. This issue actually borders upon the 100,000 mark. To have included illustrated descriptions of Easter events in this issue would have necessitated the curtailment of a long-anticipated holiday badly needed by all the sections of our works.”

“THE 1919 PEUGEOT MOTOR CYCLES: Despite the fact that we have heard rumours that the 1919 Peugeot range would include a four-cylinder, the Peugeot firm has decided to remain faithful to the twin-cylinder 45° type for the present year. The machines, however, have been improved by the fitting of a countershaft gear box… The two twins will be the 345cc 3½hp and the 740cc 6hp, with two and three speed respectively (which is curious, as the third speed is obviously needed much more on the lower-powered machine).
The sidecars will bs sold made in wicker, sheet metal, and wood, the latter following the general form of the floats of a seaplane.”

“MOTOR CYCLISTS IN AIRMEN’S GARB: The leather Flying Corps coats are very
popular with motor cyclists this year.”

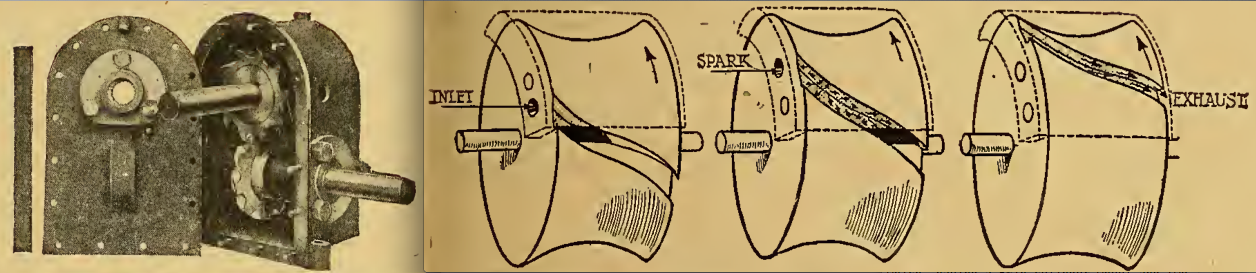

“A JOHANNESBURG MAN HAS INVENTED an
internal combustion turbine, but then so have men in nearly every town in Great and Greater Britain.”

“On the Road: Every week-end sees more machines on the road—and many of these new models.”

1919 NOTTS RUN
“Members ot the Nottingham &DMCC at the Peacock Hotel, Belvoir, on the occasion of their recent opening run.”

“MOTOR CYCLE POLICE: A MIDDLESEX READER, who has been trapped by plain-clothes policemen who were using a sidecar outfit, is very sore that ‘motor cyclists should trap each other’, and suggests that they deserve to be given the cold shoulder by other motor cyclists. We scarcely like to give the number of the machine in case it was a borrowed one. This appears to be a new departure on the part of the English police, but we would point out that in America almost every city has its squad of police mounted on motor cycles. Maybe, when the police taste of the joys of motor cycling, they will not be so anti-motorist.”

THE FRENCH GOVERNMENT LAUNCHED a series of auctions in 25 regional centres to dispose of war surplus motor cycles. A fleet of 200 sidecar taxis took to the streets of Paris with a promise that “the drivers will be in uniform, and will, we are informed, be clean, polite, and correct in their behaviour. It is also rumoured that there will be no tips.”

“HOME-PRODUCED FUEL: The Liverpool MCC Whit-Monday Trial will be run entirely on benzole—a good example for other clubs to follow…It is said that nearly 5,000 square miles of coal deposits are in the Transvaal. The extractable tonnage is conservatively estimated at about 56,000 millions. Converted into benzole, with existing means of distillation, this would produce approximately 140,000 million gallons of motor fuel.”

“MAGNETISED SPROCKETS: THE LEAKAGE of magnetism into the steel sprocket of a certain American magneto is not confined to machines in this country. A reader of The Motor Cycle has had the same trouble in America.”

“THE SCOOTER: Last year we asked in these columns what had become of the motor scooter. In a period of less than twelve months half England is talking about it.”

1919 NMCFU COVENTRY
“The Coventry branch of the National Motor Cyclists Fuel Union in Badby Woods, near Daventry, a picturesque spot which has become very popular with Midland motor cyclists.”

THE BIRMINGHAM MCC’S VICTORY CUP TRIAL was the first major post-war competition: “That over fifty per cent of the entrants secured gold medals may convey an impression to those who do not know the course that the reliability and power of the modern machine had been under-estimated by the Birmingham MCC. It has, however, been proved before that, where it is possible for a wheel to obtain grip, the machine of to-day, and even of 1914, will climb with success, provided the rider can handle it. The roads were dry, and, except for the dust, which was very trying, conditions were ideal for the competitors. Had it been wet, we think the results would have been very different; the first hill and Rising Sun alone would have considerably reduced the number of gold medallists. It is perhaps only fair to the makers of the machines that failed, to say that the personal element was responsible for more failures than mechanical troubles. Competitors were credited with 100 marks at the start. There were four non-stop

1919 VICTORY 1
Left: E Kickham (4hp Douglas and Dinky sidecar). Right: “The new 3½hp spring frame Douglas. PW Moffatt successfully piloted this machine through the trial.” (He won a gold.)

sections, to stop in any of which meant the loss of 12 marks, while for failures on the test hills competitors were debited with losses in proportion to the severity of the hill. Failure on Beacon Hill represented 11 marks, on the Old Wyche 6, Portway 8, Birdlip 10, Rising Sun 7, and Sudeley 8. To qualify for a gold medal, competitors had to secure 97% of the cup winner’s marks, while lightweight riders were allowed to drop to 88%. Silver medallists could lose 8% marks, and in the lightweight class 17%, The winners of the cups were decided by a speed judging test over a distance of two and a third miles. The condition of Beacon and Rising Sun was very bad. The latter was particularly rough…Several ‘Hush’ models were in the trial, including the 1919 model, 3½hp spring frame Douglas, a 2¾hp spring frame New Imperial, and a Sunbeam with laminated springs fore and aft…Rex Mundy (Victory Matchless) drove the major portion of the trial

1919 VICTORY 2
Left: “In the time check at British Camp, near Malvern. Messrs Lycett and JT Urry are seen busy examining the rider’s sealed watch.” Right: “DR O’Donovan (Norton sidecar) climbing the Old Wyche.” (Nine Nortons entered; Wizard O’Donovan was among the five who failed to finish.)

with a broken throttle wire in his hand. Notwithstanding, he made one of the best climbs on Rising Sun…Many non-competitors showed lack of sportsmanship by insisting upon trying Rising Sun in between the competitors. The egotism required to do this before such a crowd of spectators was pitiful to behold. We did not sympathise, however, with those who failed…Several competitors were baulked by non-competitors…The new Douglas ridden by Moffatt had no exhaust noise under normal conditions. The running of the machine reminds one of a sewing machine…There were 5,000 teachers in Cheltenham attending a convention. Result, no lunch…A small dog persisted in trotting

1919 VICTORY TRIAL KUHN1919 VICTORY TRIAL KUHN
“Mr Gus Kuhn, the winner of the Victory and Evans cups in the Victory Cup Trial, mounted on the well-worn 1914 model 2½hp Levis with which he secured the awards. The weight of the machine is sufficiently light to permit of its being lifted by its rider. Mr Kuhn tells us that his average consumption is about 125mpg, and that his maximum speed is about 40mph.”

across Birdlip in front of almost every competitor, and its owner did not seem to realise the number of times her pet narrowly escaped sudden death…Albert Milner, still in khaki, mounted on a Diamond, caused some amusement on the Old Wyche by raising his front wheel off the ground at the lop of the hill…Several of Kickham’s ‘Dinky’ sidecars were fitted to competing machines, and were voted to be the roomiest sporting sidecar ever seen…Pike’s Levis, with which he won a gold medal, had the smallest engine in the trial, the capacity being 198cc, and did the entire course—126 miles—on less than a gallon of petrol.” G Kuhn (2½hp 211cc Levis) won The Victory Cup, for the best performance by any machine and the Evans Cup for thebst performance by a member or ex-member of HM Forces. GA Dalby (4hp 550cc Triumph sidecar) won the Duke Cup for the second best performance. Of 73 starters 41 riders won gold medals, 11 won silver, 11 finished with no award and 10 failed to finish. Of eight starters on 4¼hp BSAs four won gold and four won silver.

1919 VICTORY 3
Left: “The crowd of spectators on the Old Wyche, illustrating the new interest of the general public in motor cycles.” Right: “E Kickham (4hp Douglas), on Portway Hill.” (He won a silver.)

“PURLEY &DMCC: WE HAVE HAD A LETTER from the hon sec, L-Cpl SJ Taylor, 201,653, 2/5th Durham Light Infantry, Salonika Army. He states that he will be glad if any demobilised members of the old club (moribund since 1915) will communicate with him with a view to restarting it. Unfortunately, Mr Taylor sees no prospect of returning home till 1920, so he trusts that any old members will set to work to revive the club, appoint a new hon secretary, and proceed with a new programme. His father, M. E Taylor, 19 Clifton Road, Wallington, Surrey, will hand over the necessary books and club papers.”

“OVER 500 MOTOR CYCLES AT NMCFU RALLY: About 550 members of the National Motor Cyclist Fuel Union congregated at Stratford-on-Avon for the intermeet organised by the Birmingham and Coventry branch secretaries, and these were mounted on almost every conceivable type of machine, both ancient and modern. Almost everywhere the owners’ keen interest in their machines was in evidence, aud as many of the members are mechanics it was not surprising to find that, in many cases, the makers’ design had been ‘improved’ in detail. For example, one of the most attractive outfits we saw was a Harley-Davidson, upon which the owner, a Mr Bateman, of Coventry, had lavished much thought, time, and money. The mudguards were of his own make, and followed AJS. lines to some extent. Each was made in one piece of heavy gauge material. The guards were certainly the best we have seen. Other improvements included a hot air muff on the induction pipe, a special type of extra air valve, a thief-baffling device, and a three-sided sidecar screen. The machine was very complete as to electric lamps…Another machine

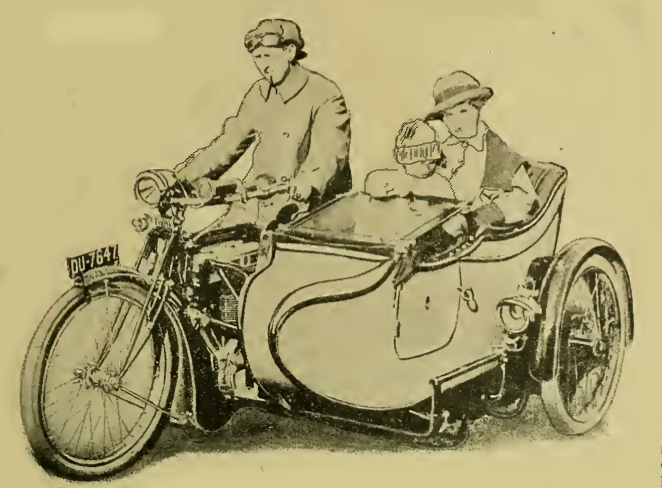

1919 NMCFU CONCOURS
“A 1915 4hp Triumph and Gloria sidecar, awarded the prize given for the best appearance at the NMCFU Rally.”

which created a great deal of interest was a 3½hp solo Sunbeam finished all black, with disc wheels, electric light, and chain-cum-belt drive, while near by stood a Premier ‘flying bedstead’, one of the machines with 3½hp single-cylinder engine and outside flywheel, etc, built for the 1914 TT. The owner had reduced the compression ratio and fitted chain cases…Almost every sidecar carried one or more small children, and picnic baskets seemed to be part of the standard equipment in most cases. The organisers had made arrangements to park the machines in groups according to the centres from which they had come [Portsmouth, Weymouth, Glasgow, Newcastle-on-Tyne, Sheffield, Manchester, Birmingham, Bristol, Coventry, Wolverhampton, Bedford, Nottingham, Leeds, Leicester, Lincoln, London, Derby, Liverpool, Barrow-in-Furness, Grantham, Rugby, and Ashby-de-la-Zouch]…One may regard the rally as historic, since many members are newcomers to the pastime…a cinema operator was very busy during the run out for the circular tour of ten miles. Later there was a demonstration by Coventry testers in fancy costume, which, however, we think, was not quite appropriate for a Sunday event. On the whole, the organisers, Messrs Murray and Mallilieu, are to be congratulated upon a very successful rally of members of the NMCFU.”

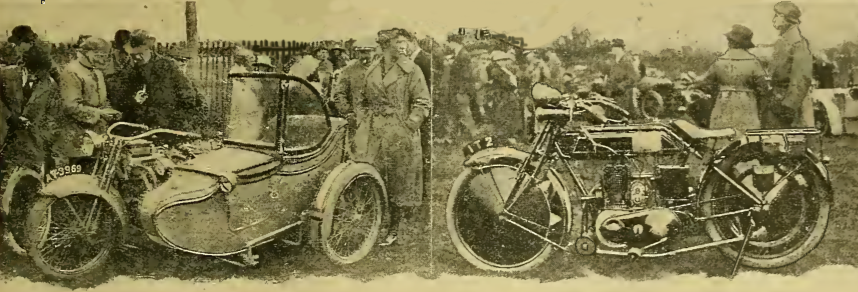

1919 NMCFU RALLY
Left: “A well-equipped Harley-Davidson attracted much attention. The design of the windscreen is worthy of note.” Right: “An all-black 3½hp Sunbeam, with disc wheels, the appearance of which was particularly admired.”

“THE RICHMOND MEET—REVIVAL OF THE ANNUAL Yorkshire Intermeeting of Motor Cycle Clubs: To mark the opening of the summer season in pre-war days the North of England clubs held an inter-meet at Richmond, which was always well attended. This year’s event, however, only attracted some seventy motor cyclists, which comparatively low number is accounted for in various ways. In the first place, a large number of club members have not yet taken delivery of their machines, and many others who were more fortunate took advantage of the holiday to go touring. However, despite the presence of threatening clouds early in the day, which induced several to don ‘oilies’ in preparation, members of the Middlesbrough, York, and Harrogate Clubs started for the venue, and by devious paths reached Richmond, which the first-comers found very quiet. As at every motor cyclists’ rendezvous, great interest was displayed in new machines, but except for a few new Triumphs, BSAs, and a P&M, no post-war models were on view…Only one lady driver was seen, and she was on an old twin Peugeot with sidecar, which was driven from Middlesbrough. Mr J Stevenson arrived frorn Darlington with a 1913 5hp Clyno outfit carrying no fewer than five passengers—a load which he says the machine is easily capable of carrying. An old lightweight FN with a passenger on the carrier was noticed. The event this year proved to be a very pleasant affair, but future Richmond rallies no doubt will be more like those of pre-war days, when the secretaries of Northern clubs met to discuss summer programmes, and to arrange inter-club runs, and motor cyclists turned up in their hundreds.”

1919 RICHMONDRUN
“Members of the Middlesbrough MCC, one of the several clubs at the Richmond Meet.”

WORLD-WIDE IS THE REPUTATION ENJOYED by Messrs Douglas Motors, of Bristol, the pioneers of the flat twin. A general engineering business, with a speciality in boot and shoe machinery, and an intelligent anticipation of the motor cycle needs of the public in taking up a small flat twin lightweight proved to be the foundation of the present important branch of the motor cycle industry. Then followed a remarkable run of success in competition on road and track, culminating in a still more notable success on war service on all fronts. Such in brief is a summary of the qualifications and experience behind this latest production, the 3½hp Douglas. Though retaining the general Douglas outlines, the 3½hp mount introduced for 1919 is in fact a complete redesign in every part. New as it is to the ordinary rider, the firm have subjected the model to extensive road tests ‘during many months, and now offer the 3½hp as a proved design, representing the result of their accumulated and unique experience. The volume swept by the pistons is a shade under 500cc, each cylinder being 68x68mm, and it is to be nominated 3½hp, but, of course, develops more…Perhaps the most unique point of this newly designed engine is its mode of attachment at three points only, two lower frame bolts and one upper bolt connecting the magneto holding-down bridge to the centre of the under tank tube. The advantage lies in the fact that the whole engine unit can be taken out of the frame in less time than it takes to remove a cylinder from the average single-cylinder engine.” The magneto could be removed without disturbing the ignition timing; a Lucas dynamo was an optional extra, driven from the mag pinion. The three-speed countershaft gearbox incorporated a clutch and enclosed kickstart; final drive was via a 7/8in belt. “The Douglas spring frame…is a complete departure from their

1919 DOUGLAS PLAN
Left: Plan view of the new Douglas. Right: Underneath view of the machine, showing ample size of the undershield.

former practice, laminated springs being abandoned in favour of helical springs. The rear frame is pivoted behind the gear box bracket on a very wide, hardened and ground plain bearing; the upper point is connected through an ingenious pair of levers, whose function is to reduce movement, to a pair of enclosed helical springs placed horizontally on each side of the saddle lug. These springs (each being made up of two concentric springs) act in compression, and adjustment is provided to suit different riders’ weights. Approximately, 3in movement of the wheel is reduced to about ¼in on the springs. The carrier is sprung with the frame. Means of lubrieating all moving parts are provided. For three years this spring frame has been under test by the Dougfas firm, and so satisfactory is it in the comfort provided, hard wearing capabilities, and absence of lateral movement, that it takes a definite place in their future programme…There are deep valances on wide guards to both wheels, a sub-stantial undershield with side valances fitting to the inner edge of the footboard, and, if required, flexible [leather] leg shields attached to a cross bar on the top tube…The cross bar is only dropped on, no fastening, the shields being buttoned down tightly to the front flange of the undershield……they can be quickly removed and rolled up when not required. As a solo mount with empty tank the machine scales 231lb.”

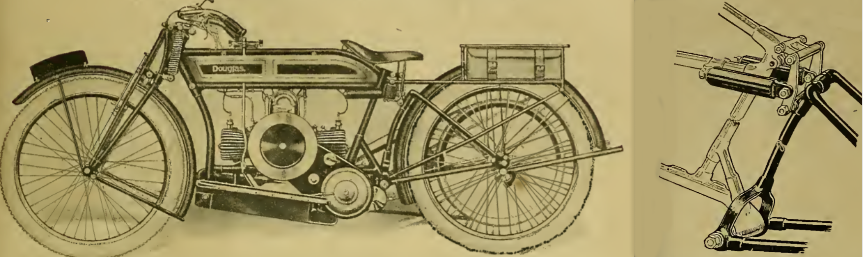

1919 DOUGLAS SPRUNG
The Douglas featured revamped suspension, including helical springs.

“ACCORDING TO AN AMERICAN PAPER, Mr Duncan Watson, MIEE, the managing director of the British Harley-Davidson Co, is credited with having stated that the British post-war demand for motor cycles will not be satisfied until a million and a half motor cycles are produced.”

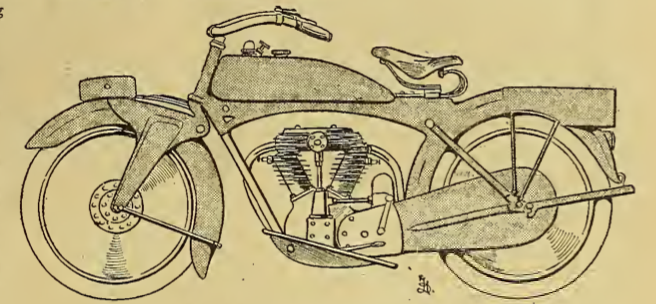

IN FRANCE GRIFFON AND CLEMENT resumed motor cycle production, each with a single model. The Griffon was a 6hp 748cc two-speed twin; the Clement was a 4hp 560cc two-speed twin boasting automatic lubrication. Terot also offered a 4hp twin (this one had a capacity of 624cc and a three-speed box) but it was joined by a 2¾hp one-lunger of 317cc.

“COGNOSCENTI ON THE SADDLE: Among the machines on the Ripley Road last week-end were noticed a new Wooler, a twin Blackburne, a 1919 TT Rudge with handle-bars almost meeting the footrests, a gigantic JAP in a light frame evidently home asseinbled, one of the latest TT electrically-equipped Harleys purring along at an easy 40, and a four-cylinder Henderson solo. Two-strokes were greatly in evidence, as was the ubiquitous Douglas.”

WELCOME NEWS IN THE BUDGET was an end to The Petrol Control Board, petrol licences and the tanner-a-gallon ‘supertax’ and a decision that no tax would be imposed on Benzole. With British production of Benzole exceeding 300,000,000 gallons a year there was talk of restricting Six Days Trial entries to bikes running on Benzole.

“NEAR A RIVERSIDE RESORT we saw recently a light racing outrigger skiff being transported a distance of some eight miles through traffic and country, turned upside down on a sidecar chassis. With about twenty feet of a delicately built shell sticking out fore and aft, the driving in traffic was a very ticklish matter.”

1919 6UP
“The obvious advantage of the sidecar over any other type of light motor vehicle, so far as passenger accommodation goes, is well exemplified during the week ends. Sidecar outfits with four up are a common sight. The owner of the Clyno shown above appears to have solved the problem of carrying a family of six in a quite satisfactory manner.”

“CONSIDERING THE DEMAND EXSISTING for motor cycles at the present time, it is perhaps surprising that more new firms have not come into existence to take advantage of the popularity of the motor cycle. In the car world upwards of thirty new motor firms have entered the industry, and, although the call for motor cycles is even greater than for cars, only a few newcomers have been recorded. One of these is the Carfield Motor Cycle Co, of Smethwick, Birmingham, which, though handicapped by inadequate temporary premises, has made a good start with a two-speed two-stroke lightweight on the usual standard lines. It has a strongly built frame, particularly strengthened at the head, designed to accommodate the well-known 2½hp Villiers two-stroke engine unit, with a standard Amac carburetter and a CAV magneto. The drive is taken through a Brampton ½inx3/16in chain to an Albion counter- shaft two-speed gear box, of standard pattern. The drive to the rear wheel is by Dunlop ¾in belt, and the 26in wheels, which are finished all black, are shod with 2in Dunlop rubber-studded tyres. Amply wide mudguards and a very substantial carrier are special features, the latter incorporating two metal-cased toolbags. The rear brake is heel operated, acting upon the inner side of the belt rim. The other points of the specification are: Lycett’s pan saddle, semi TT bars, and Best & Lloyd sight drip-feed lubricator. A well-formed tank carries one and a quarter gallons of petrol and a quart of oil. The filler caps are of large size. Production commenced a few weeks ago, and several Midland agents have machines in stock, the selling price being £51.”

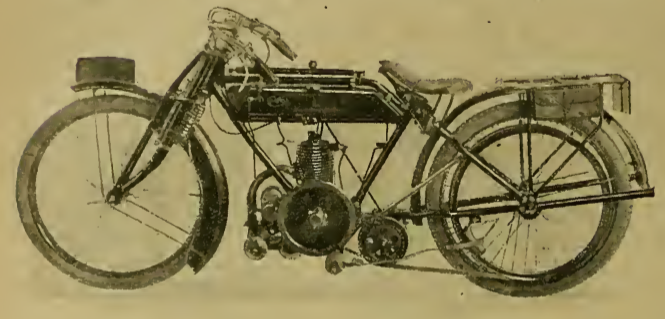

1919 CARFIELD
“The 2½hp Carfield two-stroke. The engine is a 2½hp Villiers and the gear a two-speed Albion.”

“MINISTRY OF WAYS AND COMMUNICATIONS BILL: THE following are. extracts from a memorandum prepared by Mr. Rees Jeffreys, late secretary to the Road Board, at the request of the Motor Legislation Committee, and which proposes a number of amendments to the Ministry of Ways and Communications Bill—‘The Minister has undertaken that there shall be a separate Department for roads under General Maybury. General Maybury should be assisted by a Board Committee consisting of representatives of associations of highway authorities and traffic organisations. It should be provided that the Minister shall appoint a Road Committee of not fewer than ten members (exclusive of the head of the Department, who shall be the chairman of the committee), of which five members shall be representatives of local authorities, and five shall be representatives of road traffic problems. The following provisions are suggested: (a) That all roads shall be put into one of three classes. Class 1—Arterial roads or main lines of road communications. Class 2—Secondary roads. Class 3—Local roads. (b) That to Class 1 roads a grant of 50% per cent of the cost of maintenance shall be paid; to “Class 2 roads 25%; Class 3 roads to remain a local charge. It should be provided in the Bill that the Minister shall have power, on the advice of the Road Departmant or Board to prescribe the minimum width of the arterial roads, ie to issue regulations providing that tor the roads specified in the regulatios no new building shall be erected within so many yards of the centre of the highway…Similar powers should ” be conferred, on county councils to conserve the width of Class 1 and Class 2 roads within their areas.” This memo marked the end of the old Road Board and the birth of the Ministry of Transport.

1919 POMPEY NMCFU RUN
“A gathering of the members ol the Portsmouth NMCFU prior to the opening run of this southern branch of the Union.”

IXION MUSED ON THE MOTOR CYCLE’S record breaking readership of 100,000: “I have never possessed 100,000 of anything except influenza germs. In a few years, when we touch the 200,000 mark, my successor’s task will be much easier. The figure will doubtless approximate to the rpm of Granville Bradshaw’s latest engine, or to the mileage of one of FL Rapson’s unpuncturable tyres, or the Triumph weekly output, or the Douglas speed in mph for a flying start mile at Brooklands…Joking apart, those of us who have fought the long battle have lived enviable years. We can remember days when our pages were hard to fill and harder to sell. Now we know what it is to reject lots of interesting copy, and even—in war-time—to repress an over-robust circulation because our paper ration would not run to it. We have seen puny little foreign engines of extraordinary capriciousness gummed to the down tubes of ridiculously bad British frames, and disfigured by incredibly silly transmissions. By trial and error, by research and experiment, by pluck, brains and energy, we have seen British motor cycles climb slowly to the very top of their industrial tree, and even threaten ethereal ideals. In the dark days of the industry other journals have gone under, but we have never missed a week…Our belief in the future of a machine which was once deservedly despised and mocked at has been more than approved by facts and history…When this paper was founded there was no motor cycling community. This country boasted nothing more than a handful of isolated enthusiasts, pursuing a strange and unpopular pastime. To-day the pastime has created a special community of enthusiasts within the bigger community of the State; indeed, it is an international community international as science, or finance, or Esperanto. As this journal has played its part in creating that com- munity, so it still works to link its members together: and we of the staff are proud to share in the resultant freemasonry.”

1919 DEAFDUMB
“Should the deaf and dumb use motor cycles? In view of this question, which is frequently brought up in our columns, the photograph has exceptional interest. It is unique in the fact that the riders are all deaf and dumb. It is their intention to form a social and motorcycling club in the Midlands.”

“THE YANKEE TWINS ARE GOOD,” Ixion admitted, “but they are not competition-proof; and the number of their ’14 sales constitutes a market worth attack. Most of them give a rider more petty trouble than a first-class British machine, and the inevitable stage at which substantial repairs become unavoidable arrives earlier. They are quite absurdly heavy; 3cwt. is surely excessive for a solo ‘bus, and is not even to my mind pardonable on a sidecar hauler. The American front fork is good, but not better than two or three of the best European patterns: Americans have no essential monopoly of rear springing. Their much-boomed lubrication systems are not to be compared with the principles embodied in the new ABC. I am not by nature and preference a bestraddler of their cumbersome projectiles: I eschew sidecars, and find that a class 500cc will do all that a solo man requires so I must not be dogmatic on the secret of the spell that post office red or dove-grey with vermillion streaks has for so many eager buyers. I view the tug of war without animus. If the Yankee twins are really better, let them capture our 7-9hp market, and let the British rival take its medicine like a man. I merely point out that the Britisher has a splendid opportunity to make sure of this threatened market, that the 1914 sales contain pointers to guide him in diagonising public taste, and that now is the time.”

NATALITE FUEL, TAKING ITS NAME from Natal, South Africa, whence it came, comprised alcohol, ether, ammonia—and white arsenic. It had reportedly performed well during six months of testing, producing almost as much power as petrol at a lower cost. “The statement that this fuel can be manufactured and sold at a price that would defy competition from the petrol companies is distinctly cheering. The one thing which now stands in the way of the use of Natalite fuel in this country is the Excise regulation. We do not think that the Excise authorities are immovable, and we have reason to believe that, if they can be convinced that a suitable denaturant which will render the alcohol undrinkable will be employed, they will not raise insuperable obstacles-to the manufacture or importation of Natalite.” And that, it seems, was the reason for the arsenic.

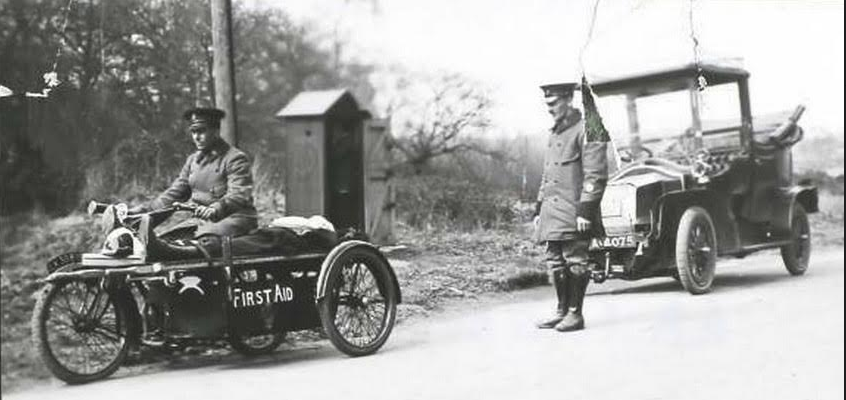

“TO ASSIST MEMBERS HAVING MECHANICAL BREAKDOWNS of their cars and motor cycles, the AA and MU has instituted a service of ‘first aid’ motor cycle combinations. These vehicles are equipped with the necessary tools for dealing with roadside troubles, and are driven by competent mechanics. In addition to spares, covers, and tubes, first aid necessaries for personal injuries are carried, also stretchers to enable serious accidents to be promptly dealt with. These machines are working in close conjunction with the AA. system of roadside telephones, and can be summoned by the patrols in charge of the sentry boxes at the behest of members needing their services.”

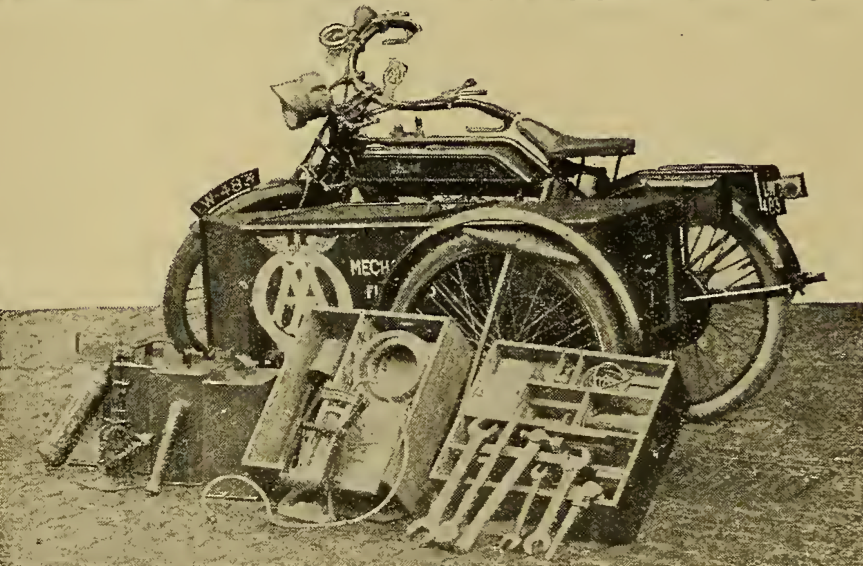

1919 AA SCOUT
AA scouts were deplyed to repair members’ ailing conveyances.
1919 MOBILE SERVICE
“A travelling workshop catering for motor cyclists in the Plymouth district. These motor vans have been in service tor the aid of car owners for a long time, but up to the present very few garage owners have been sufficiently enterprising to cater specially for stranded motor cyclists.”

“BOCHE METHODS: WE HAVE RECEIVED AN ENQUIRY from a Belgian firm of cycle and motor cycle makers, Etablissements Scaldis, Antwerp. The pathetic nature of the letter will be understood when we point out that the firm are asking for the names of manufacturers of British plating accessories. The Germans stole the whole of their nickel-plating plant, and as they despair of ever getting it back they are turning to Britain to supply them. Doubtless some Boche is making use of the stolen plant, and rubbing his hands with glee at being able to obtain it so easily. It was by such dirty methods as these that the Germans hoped to win the war and annex the world’s trade not only in bicycles and motor cycles, but everything else.”

“AT A RECENT MEETING OF THE Institution of Automobile Engineers Mr E Tilston said, ‘The word ‘accessibility’ should be posted all over the premises of motor cycle manufacturers, even at the risk of the workers taking to themselves the assumption that the managing director should be more get-at-able in future and listen to their grievances.’”

“IN ALL PROBABILITY THE REVENUE OF THE PATENT OFFICE during the next few months will be increased by fees for patents relating to motor scooters. Apparently the interest in this type of machine is not confined to this country, and inventors in the land where the Auto-ped is produced are endeavouring to design scooters, some of which leads one to suppose that there are others besides The Motor Cycle who ask the question, Why stand? One of the latest American designs incorporates a Smith Auto-wheel and a sprung bucket seat…it would seem that if the motor scooter is to secure a place in the world of mechanics as a separate type of vehicle, it must remain a scooter pure and simple, and its one point of advantage over the lightweight motor cycle, ie, compactness, must outweigh the points of superiority of the slightly larger vehicle with its higher power and greater sphere of utility. Another invention is the patent of London engineers, but here we have a scooter without the scooter’s greatest and most appealing feature, viz, its apparent simplicity. The inventors state that ‘preferably the rear wheel is driven by a belt, and a torque rod, having a right and left-hand screw to enable its length to be adjusted to the belt tension, is provided to keep the driving wheel in position…By disconnecting the torque rod, the rear wheel can be removed without altering the adjustment of the bearings thereof.’ The machine is intended to be sprung fore and aft by laminated springs, while the engine casing constitutes the main frame of the vehicle.”

1919 3 SCOOTERS
Left: “An American design that incorporates a Smith Auto-wheel as the power unit.” Centre: “A British patent which conforms more to the lines of the original scooter than many recent designs have done.” Right: “The Autoglider, a new scooter manufactured by Townsend and Co, Birmingham, seen at the charity sports in that city last week.”

THE AUTO-WHEEL ALSO POWERED the LAD scooter, made in Farnham, Surrey. “The frame, which is registered, is of the open type with platform, and is fitted with a small wheel at the front, but in future models a larger size wheel will be fitted, probably of the saine size as the rear Auto-wheel.” LADs came with a choice of new or “thoroughly overhauled” Auto-wheel engines. The Wynne Scooter, designed by Manxman W Oates, had a 2¾hp two-stroke engine and, as well as a seat, boasted coil-sprung forks and leafspring rear suspension. Deeply valanced mudguards came in two halves to facilitate wheel removal. With footboards only a few inches from the ground the Wynne clearly wasn’t designed for fast cornering. “The whole is enclosed by a cover, which has convenient doors to give access to the engine, etc. 16x3in disc wheels are fitted…It is the intention of the designer to embody a small dynamo for lighting front and rear lights.”

1919 TWO SCOOTERS
Left: “The LAD scooter, embodying an Auto-wheel.” Right: “The Wynne scooter, fitted with a two-stroke engine of 2¾hp.”

“THE DOUGLAS FIRM ARE PROUD to find that amongst many items of interest which came to light after the Armistice is the fact that the Huns, having captured a Douglas electric power generating set, produced an almost exact copy under the name of the Bosch, presumably made by the magneto firm. So near a copy did they make that many parts of the flat twin engine are interchangeable with Douglas parts. Does this herald an attempt at a German fiat twin motor cycle? Will the German firms be allowed to continue infringing English patents after peace is signed?”

“THE DENE MOTOR CO, NEWCASTLE-ON-TYNE, are specialising for this year upon the production of a big twin machine. The specification includes 8hp V JAP engine, with Blic magneto behind engine, driven by chain from engine shaft. This design is a distinct ‘breakaway’ from standard, and brings the contact breaker to the right hand side—a great convenience in sidecar machines.”

“IT IS ONLY A QUESTION OF TIME when the entire motor cycle industry will recognise the enormous use that can be made of stainless steel, and it may be expected that many makers in the future will use it for valves and exposed metal work. Stainless steel is a chromium alloy steel, with the composition of 12.5% chromium and very low, .28%, carbon, the rest being iron and the usual impurities. Its outstanding peculiarity is that it is perfectly impervious to atmosphere corrosion…Enamel work can be dispensed with, and, if desired, an entire frame be made with it, as it can be readily drawn into tubing. It can be pressed into rough or accurate shapes for control levers and nuts. Spokes and rims can be made of it wth the greatest of ease. Of course, its greatest work can be done for valves, scaling is unknown with rustless steel valves.”

1919 MCC SPEED U
The Motor Cycling Club’s first peacetime event was a speed-judging trial near Potters Bar. Entrants were asked to complete three laps of a five-mile course: the first at 16.5mph, the second at 18.5mph and the third at any declared speed between 10 and 20mph. The winner was ML Luifi (4¼hp BSA) with an error of 47sec; followed by EC Hemy (2½hp Metro-Tyler) 1min 20sec; and V Olsson (4hp Douglas) 1min 21sec.

“IF EVIDENCE IS WANTED TO PROVE that the two-stroke lightweight is as popular as ever the order files of the majority of two-stroke makers will supply all that is needed. Messrs Alldays; and Onions, for instance, have been obliged to refuse further orders for some time, as the demand was much in excess of the present output of their works. They are not alone in this respect; many other manufacturers are ‘snowed under’ with orders. Conditions are improving, and every week witnesses progress. Although there are many improvements in details which make for increased accessibility, the latest models are substantially the same as the former Allon production. The engine unit is now assembled and aligned complete with the gear box, magneto, and silencer on the bench, and the whole placed in the frame en bloc. When being decarbonised, the cylinder remains in situ, the crank case lower half is dropped, and with it the tiywheel, shaft, connecting rod, and piston. The necessary scraping can be done through a large port in th’e liead which carries the release valve dome. The exhaust port has been redesigned, and the pipe is now attached by bolts through two lugs on the pipe. Frame and tank construction form

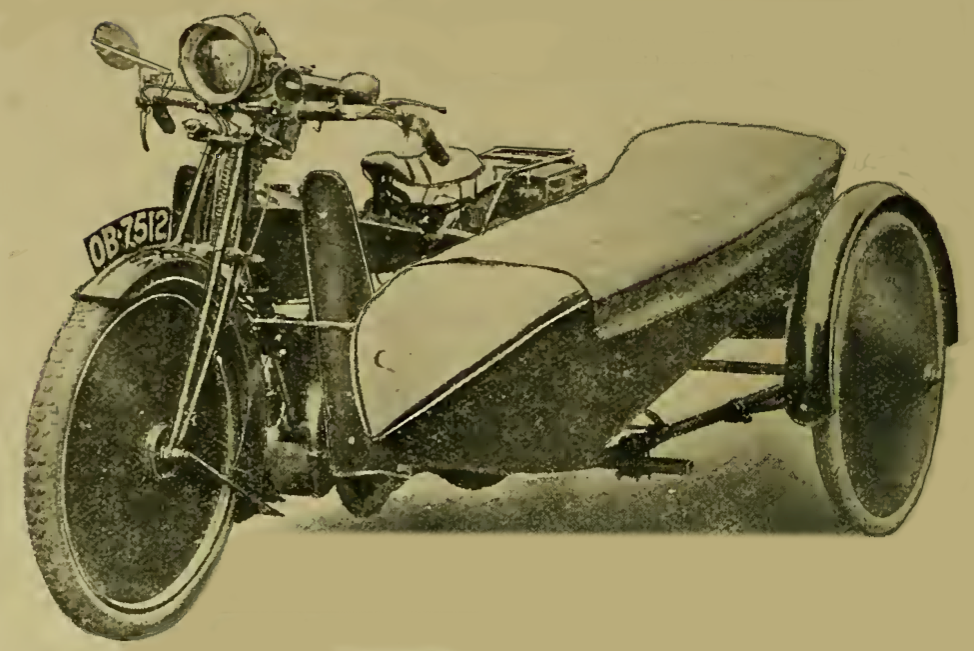

1919 ALLON LIGHT COMBO
“The latest Allon two-stroke with a Canoelet-mirror sidecar and rally wheel covers.”

the principal improvements. Messrs Alldays claim to be the first to introduce the saddle tank, and all future Allon models will be fitted with a very smart double tank, saddled over the sloping top tube. A U-shaped pipe connects the two compartments at the rear. A sump and filter over the petrol tap is a good feature…Efficient metal leg shields are now a Rally wheel covers are specially fitted standard fitting, also small aluminium covers over the front and rear hub band brakes…The model illustrated is a special model and although the makers do not intend this lightweight for use with a sidecar, it is quite capable of giving much good service withing reasonable limits. The Canoelet-minor sidecar as fitted is probably one of the lightest attachments obtainable, but it cannot be termed roomy, and is only suitable for a small person. Nevertheless, a run of several miles in Birmingham traffic, and incidentally over tramlines and cobble paving in an atrocious condition, served to show its capabilities; although rider and pa;ssenger were each about 11 stone, the second speed was very seldom needed. The firm’s recently patented sidecar lugs are now being made, and give promise of being an excellent fitting. The ease with which they can be manipulated will be the chief advantage; the pos- sibility of detaching or attaching a side- car by hand, without tools, is certain to appeal to sidecar owners.”

1919 ALLON COMBO BITS
“A new type of exhaust pipe connection which takes the place of a manifold cast on the cylinder. Two views of the saddle tank of the Allon; note the large filler caps, connecting pipe, and the sump over pelrol tap. The Allon spring sidecar coupling—the bayonet fixing can be operated by hand with ease.”

BH DAVIES (WHOSE ALTER EGO WAS IXION) wrote in praise of what was, even in 1919, ‘old-school’ motor cycling. “It is a little difficult to define what one means by a ‘sporting’ motor cycle. For some folk the mere externals of the machine fill the bill. Drop the handle-bars, remove the entrails of the silencer, wear a leather skull cap, with sausages over the ears, fit a speedometer dial graduated up to 80mph, and then you are a sportsman. For another type of mind it is enough to own a machine of a make which has figured largely in the archives of Brooklands and Manxland, and on occasions to ride it rather fast. For persons of a truly detestable kidney, the word need not mean more than to find Kingsway clear of traffic and free from police, to roar up it at forty with an open exhaust, making everybody stare, and then to shut down and creep winking into Holborn wth the air of being ‘one of the boys’…In 1914 the Rudge team for the Scottish Trials was entered with belt drive and a bottom gear of 6½ to 1…Probably neither the firm nor the riders were aware of the calibre of the hills along the route. Had those hills been even moderately straight, the high-geared Rudge would have stormed thegi at terrific speeds. But you cannot climb precipices on a high gear unless you can keep up your revs and you cannot keep up the revs, on a 6½ gear round comers which represent a Cubist artist’s impression of a true lover’s knot. At the start the cognoscenti averred that the first big hill would behold the debacle of the Rudge crowd. But they had not reckoned with the sportsmen in the Rudge saddles. I have admired many motor cycling deeds of derring-do, but I never saw anything finer than the pluck and skill of some of the Rudge jocks. They swept up to those appalling corners—‘blind’ ones, in some cases—at crazy speeds. They ‘lay over’ as far as their footrests would let them till their bicycles assumed the angle of a spun penny on the verge of collapse. They cut their engines out at the psychological second, wrenched the hurding jigger round in a steep ‘bank’ and slammed on full engine again. If they fell, as sometimes had to happen, they were up and running furiously to re-start on 1 in 5 goat tracks before any man could lift a finger. This was sporting work, jewelled and machine polished. They were setting their mounts at fierce, dangerous, all but impossible feats…Tone down the Rudge picture a little, and what sort of riding contains more zest and thrill to the square millimetre? The 500cc single-gear, belt-driven for preference, can be taken almost anywhere in Great Britain by the right sort of man…Having no gear box or free engine wherewith to camouflage indifferent tuning or clumsy driving, the sportsman must know his machine inside out. A new machine of this pattern will start in two years; three months later it may need a lot of pushing about unless the owner studies and pets it. Ham-fisted work with the controls reveals a rider’s deficiencies: he tries to cross London from north to south or east to west on it, and spends a sweaty, sweary couple of hours, conking out behind slowed taxis or seeking a cranny in the traffic big enough to give him vantage for a starting run. A month later his deft forefinger slides the throttle in quarter-millimetres, toch—toch—toch (very slowly, leaving room ahead), and then in quick time, tockety, tockety, tockcty, as a gap opens and he nips through the block with never a dismount. When the surge of packed vehicles comes to a dead pause, he must stop with them: but, knowing his job by now, he is restarted on the decompressor before the ‘busmen have let their clutch pedals up…If traffic is perhaps the supreme test of single-gear driving, hill work is certainly a very close second, even in England where real hills are far to seek…Years ago the late IB Hart-Davies and F Hulbert used to go ‘prospecting for pimples’ on single- gear Triumphs with adjustable pulleys, and ‘HD’ told me shortly before the crash that killed him that flying was no better fun than these hill-jaunts. I have ridden many, many thousands of miles on tour and in trials, but 1911 stands out as my golden year. I rode a 3½hp Rudge with an NSU gear giving a 5¾ to 1 gear, plus incalculable friction. It was always touch and go on the knuckle of a really bad hill; and that kept me fresh and interested, for quite a lot hinged on every feel of the carburetter levers. In the garage your single-geaar TT belt-driven is as docile as a baby two-stroke—you can lead it about with a forefinger, or pick it up and dandle it. Outside the garage door you can heave it off without appreciable effort, whether the road be steep or flat. Get it running, and nothing short of a racing car has the same pep and life. It answers its spark and throttle as a live thing should. Its noise is clean just the bark of the hot gases behind you, and the sharp clack of the tappets near your right knee—no confused smother of squeaks and rattles and growls from a hundred different stresses in as many frictional parts. And the simplicify of it! When the back tyre begins to thump, off with a couple of nuts and the wheel is adrift. If you keep a watchful eye on the belt in the garage, you need never touch it by the roadside, unless you venture among mountains in a wet week. There is nothiag else to go wrong, except the veneer of tune: and the sportsman enjoys tracing those lost 100rppm, or the secret cause of a growing sulkiness in producing the first pop…Let the dud rider pack the panniers till they bulge: strap a flat case on the carrier, containing umpteen spare chains in greaseproof paper, a £2 case of magneto bits, and other absurdities; and finally ruining the set of his jacket and breeches by depositing further reserves of greasy ironmongery in his pockets. What does the single-gear man carry? A Patchquick set. A 4in King Dick. A knife. A beltpunch. Maybe a ‘plus sign’ vestpocket screwdriver. Not much more. Moreover, and for similar reasons, he is protected against one of the more ridiculous instincts of our fallen nature. I mean the ‘acquisitive’ faculty by dint of which accessory dealers wax fat. Put the average motor cyclist down in front of the proper counter at Gamages, or Hunts, or Dunhills, with £5 in his pocket, and he will have to walk home in nine cases out of ten. His purse is the sole limit of what he will buy. Leather cases for belts and inner tubes and plugs and tyre kit. Mascots galore. Map cases. Watch cases. Containers for spare carbide. Weird alarms. Patent switches. Reverse mirrors. Badges. Muffs and gloves. Body belts. Goggles. Lubricators in amazing variety for every component of the machine. Tail lamps by the half-dozen. Densimeters. Voltmeters. Ampere meters. We all do it. I’ve done it. I shall do it again shortly. But you cannot insult the self-respect of a single-gear TT by bedecking it with these pretty toys. The girl? Ah, there’s the rub. When the hateful Percy comes along with a sprung wheel sidecar and electric dynamo and exhaust footwarmer and windscreen, you think he’ll cut you out! Let him. It’s a sound test. If she’s after money and comfort and swank and soft cushions, let her go. It is not every girl who is worthy of a seat on the carrier of a fast TT: and those who are generally make good wives. But—just pour passer le temps? Oh, run away and get a four-speeder with a sidecar if you can afford it.

1919 RIGBY 2SPEED
This Matchless twin was an out-dated single-speeder until it was fitted with a Rigby two-speed gearbox and clutch. The Rigby also facilitated a move to an all-chain transmission and a kickstart. “This gear is specially suited for all Triumphs from 1906 previous to the countershaft model, Bradbury, Matchless, Premier, Rover, BSA, Rudge, Singer, and similar machines with pedalling gear.” It was said to be “adaptable to almost any machine having pedalling gear”.

“MOTOR TAXATION AND THE ROADS: The following resolution was unanimously passed at a recent meeting of the Motor Legislation Committee: ‘This Committee regrets that no assurance has been given by the Chancellor of the Exchequer that the proceeds of taxation upon motor vehicles and motor fuel shall revert to the purpose for which it was originally imposed. The increased taxation was accepted by the motoring organisations in 1909 on the understanding that the proceeds should be devoted to the Road Improvement Fund, and be administered by the Road Board. This revenue was diverted to the general purposes of the Exchequer in 1915 as a purely war emergency measure. This Committee desires to record its opinion that the restoration of the Road Improvement Fund from January 1st 1919, alone affords highway authorities the assurance of the financial resources to carry out the urgent work of road reconstruction and improvement necessary to meet the immediate requirements of all classes of road traffic; and, further, that until the Central Road Authority has secured an annual income, they will be unable to exercise their borrowing powers, by which alone sufficient funds can be raised to carry out at once a national scheme of road reconstruction.”

“THE POLICE ARE VERY ACTIVE on the Kew Road, from Kew Bridge to Richmond, at week-ends. Many motorists enjoying the opportunity afforded by the spring weather fall victims to the policemen’s stop watches. A ten-mile [10mph] speed limit begins near the end of this road, just on entering the town.”

1919 BIRMINGHAM TRIAL
The Birmingham MCC staged a two-day ‘touring trial’ to Llangollen and back; of 41 starters 34 made it back to Brum on schedule. From left: The start. HP Cutler (Norton outfit) signs in at Llangollen; he went on to win the premier award. A Quadrant with Tom Silver in the chair at the end of the first day’s run.

“THE SUTTON COLDFIELD AND MID-WARWICKSHIRE Automobile Club usually opens the competition ‘season’ with the Colmore Cup trial, which, before the war, probably attracted more entrants than any reliability trial organised by a motor cycle club. This year, however, the manufncturers were not ready for a Colmore Cup trial in February or March—and perhaps the Sutton Coldfield Club was not ready to organise it—so to mark the opening of activities [in May], they held an opening half-day trial over a thirty-seven miles course, which proved to be a sporting event. There were two observed hills—both in the same non-stop section—and the two features of the trial were route finding and speed judging. The course was not marked in any way, neither did the route cards mention any place by name nor give any distances. Competitor’s did not know whether the course was forty or sixty miles. They were provided with a direction card which they had to follow at 18½mph, and speedometers were barred; so, altogether, to the competitors, it was a most sporting event, and by no means could the speed judging be termed speed guessing, since they had to average the speed mentioned over the whole of the course.” The trial was based on the Levis works in Stetchford. H Greaves (350cc Calthorpe-Precision two-stroke) won the Levis Cup with a time error of 1min 17.2sec; A Milner (2½hp Diamond-JAP) won the Club Gold Medal (1min 15.4sec); Seymour Smith (2¼hp Ivy two-stroke) won the Club Silver Medal.

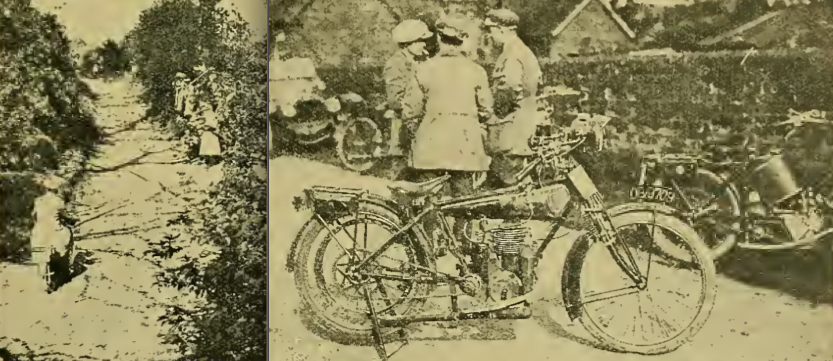

1919 LEVIS TRIAL
Levis Cup winner H Greaves romps up the observed hill. Right: Greaves’ Calthorpe-Precision.

“A PANACEA FOR ALL ILLS: A correspondent complaining of over-heating of his engine enquires whether he had better submit it to an engineer for overhaul or fit a steel cylinder. There is something fascinating and wonderful about steel cylinders to the lay mind, but in this case a pair of new tyres would probably be as effective.”

“IT HAS BEEN KNOWN FOR A LONG TIME that we have been in sympathy with any scheme which would enable discharged soldiers to purchase surplus Government motor cycles at a reasonable figure. The ACU is also in sympathy, and has been in communication with the Surplus Government Property Disposal Board with a view to persuading them to adopt some scheme which would enable ex-DR’s and other discharged soldiers either to purchase their old machines or other Government motor cycles at a reasonable price. The Disposal Board has replied to the effect that it has not been found possible to grant preferential treatment to ex-service men, and that the object of the Board is to sell at the highest possible price so as to relieve the tax-payer.”

“SINCE EARLY IN 1915 MESSRS H COLLIER and Sons have been experimenting with spring frames for motor cycles, and no doubt, but for the war, a spring frame Matchless would have been offered to the public in 1916. In 1915 we described a flat twin Matchless which embodied a spring frame with coil springs, and the new Model H, as the Peace model is called, has a springing device which is a modified design of that fitted to the flat twin, and gives an exceptionally large movement to the rear wheel. The springing system differs in many respects from others embodying coil springs, which are carried at the outer corners of two triangular members rigid with the frame. The wheel fork is pivoted at its inner end, and a substantial loop passes vertically over the wheel, having at its lower end lugs for carrying the springs. The design embodies an ingenious arrangement of linking both driving and sidecar wheels. This synchronises the movements of both wheels, and prevents the driving wheel from leaning when turning corners. Other features include an automatic exhaust valve lifter connected to the starting pedal, and interchangeable wheels.”

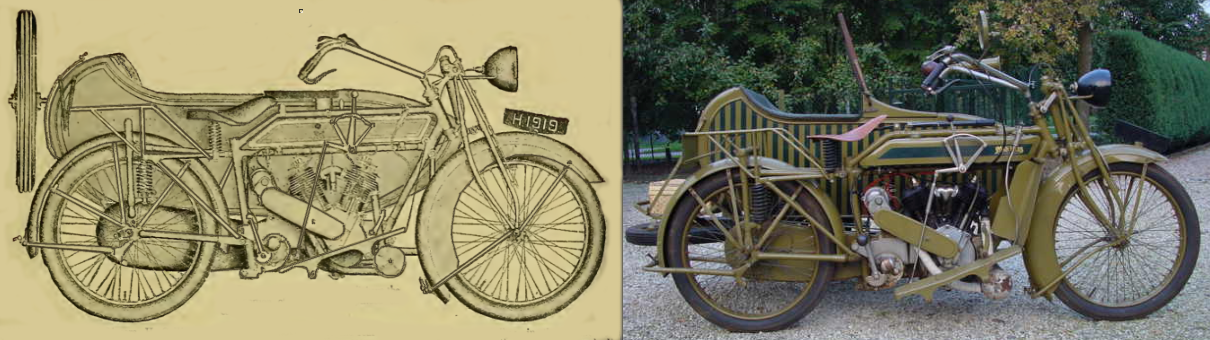

1919 MATCHLESS MODEL H
“The new 8hp Matchless will have the rear portion of the frame suspended on coil springs.” As this survivor shows, the Peace model still wore warpaint.

“OVER SIX MONTHS HAVE ELAPSED since the first Armistice, and each week that slips by more and more accentuates the difficult position in which the British makers of motor cycles find themselves. High prices of materials and labour difficulties, together with a scarcity of many of the vital essentials, combine to retard and restrict output, with the obvious result that those of their foreign competitors, who have not so suffered from the effects of the lengthy period of disorganisation and diversion from their ordinary business routine, are taking steps to secure Overseas trade by establishing business centres and organisations in likely countries. The temporary expedient of restricted imports and a tariff have eased the internal situation somewhat, from the makers’ point of view, but pity the poor rider! Although the action of the Swedish Government in placing a temporary embargo on further imports of American machines into that country is indicative of the great activity now proceeding, the immediate establishment by the United States of central business bureaux will give them a precedence that will not be easily regained by the British manufacturers, who have still a long way to go before they get their own house in order.”

“At the present time motor cycle front wheel brakes have a bad reputation generally, though it must be admitted that there are several good examples to be seen on the road. This has come about from the too slavish copying of cycle practice. What is good enough for a cycle may be inadequate in the case of a motor cycle on account of its greater weight and speed…That a rider should habitually ignore his front brake, or worse still remove it, is a reflection upon the ability of the motor cycle designer, just as to fit two brakes to a rear wheel (a too common practice) is tantamount to a confession of incapacity to design a satisfactory front brake. Some firms are, we know, giving consideration to this important detail, but we fear that others are not, and therefore we have not yet seen the last of the front brake upon the tyre rim, which makes its presence felt most acutely when it becomes necessary to remove the front wheel for tyre repairs.”

1919 PRECISION 350 TWOSTROKE
Precision launched a 350cc two-stroke proprietary engine: “After an all-out run with sidecar, the engine was no hotter than is an air-cooled engine of the four-stroke type after it has been running for a short time. This demonstrated that the designers have succeeded in making an advance on pre-war design of the three-port two-stroke engine…the new Precision, has a detachable head, which is an innovation intwo-stroke engine design…At the present time there are too few machines in this class for the solo rider who requires something more than a 2½hp lightweight and a mount of lighter weight than the dual-purpose ‘3½’, and no doubt there is a future for a 350cc two-stroke of the Precision type.”

“FOR SOME TIME PAST A CONSIDERABLE AMOUNT of experimental work has been carried out in the evolution of a practicable scooter by Messrs ABC Motors, which has now reached fruition…the ABC ‘Skootamota’ is an extraordinarily diminutive and compact bicycle, yet directly one takes the saddle and assumes control of the machine an impression is immediately evident that it is built for ease of handling and the utmost simplicity of control…The engine has a single horizontal cylinder with a bore of 60mm and stroke of 44mm (125cc), and, although only rated at 1¼hp the engine is easily capable of giving 2½hp under normal conditions. The cylinder head is detachable complete with the valves, which are mounted opposite to each other in the cylinder head casting, the exhaust valve being overhead for cooling purposes. In order to give additional comfort a special pan saddle of extra width is employed, and rubber shock absorbers are fitted under the footboard on the main frame. There are also rubber supports at the front end of the board…In taking a trial run with this miniature motor bicycle (for in effect it is no other) we were pleased with the manner in which the machine could be used and controlled. It should make a distinct appeal for short journeys and general town runabout purposes, where constant stopping and starting are necessary. We found the machine comfortable to ride and able to ascend the moderate hills in the locality in which our test was made with no signs of overheating. Owing to the small overall dimensions it is possible to ride the machine through narrow spaces in comfort at three miles per hour where it would be unsafe to pilot an ordinary motor bicycle, and a great point in its favour is that it requires little effort to start while in the saddle, merely a single push of the foot being necessary. This, the newest of the many ABC productions, can also be used with success in journeys of some length, such as from outlying farms into neighbouring towns, largely for the reason that the rider is seated on a comfortable pan saddle instead of remaining in the standing position; it is suitable for narrow lanes, it climbs hills comfortably, and the petrol tank will hold sufficient fuel for a run of fifty miles. It is possible to traverse a circle of 9ft diameter with ease, while the engine is throttled down, and since the maximum speed of this scooter is about twenty miles an hour it is possible to accomplish ten miles an hour with reasonable comfort for journeys of moderate length. As the machine only weighs 60lb, and is compact and easy to handle, an attractive point is that it can be stored away in any handy place in a house or shed, and is ready for use at a moment’s notice.”

1919 ABC SCOOTER
According to the man from The Motor Cycle the Skootamota “confirms our contentions that the scooter is the ultra lightweight in embryo, for it embodies nothing which is not more or less motor cycle practice.”

“SCOOTER ENTHUSIASTS ARE, AT PRESENT, DIVIDED on the question of ‘to stand’ or ‘not to stand’. Two additional machines of the latter type are the designs of engineers. The Norlow—the result of experiments by Sir Henry Norman and Dr AM Low, ACGI, etc—is front wheel driven, and, although smaller and lighter than the American Auto-ped, it somewhat resembles it, in so far as well-guarded disc wheels and folding steering pillar are fitted. The engine is a 60x60mm (170cc) two-stroke, having an aluminium cylinder with a steel liner. Petroil lubrication lias been adopted as being the most simple, and a carburetter designed especially for the engine is fitted. For ignition the coil system has been adopted, dry batteries supplying the current for both ignition and lighting…An internal-expanding brake on the front wheel is operated by an upward movement of the steering pillar, and the compression release and throttle controls are by twist grips…Leaf springs are fitted between the platform and the head, which, with the 2¾in tyres on 16in wheels, should almost eliminate road shocks. The weight is said to be under 60lb…The scooter designed by Capt Smith-Clarke was made by him for use by his wife for shopping and general runabout purposes, and Mrs Smith-Clarke informs us that, while the interest of the public is a little embarrassing, the machine has proved very useful. We have tried this little machine and, while we think it would be improved by a spring forks and larger tyres, we were very favourably impressed by its running. So well distributed is the weight, that when one stands astride it and raises it by the handle- bar, tile wheels remain parallel with the ground. Capt Smith-Clarke demonstrated that it was possible to ride for long distances without holding the steering bar…The framework consists of two steel plates, six tubes with flattened and drilled ends, and a head and fork assemble with very few brazed joints. The engine has a bore and stroke of 55x60mm (142cc) and has overhead valves. By driving the magneto at angine speed an idle spark occurs in the top of the exhaust stroke, but the higher speed of the magneto makes for easy starting. The wheels are 20×1¾in, the Auto-wheel size, and the machine weighs 55lb.”

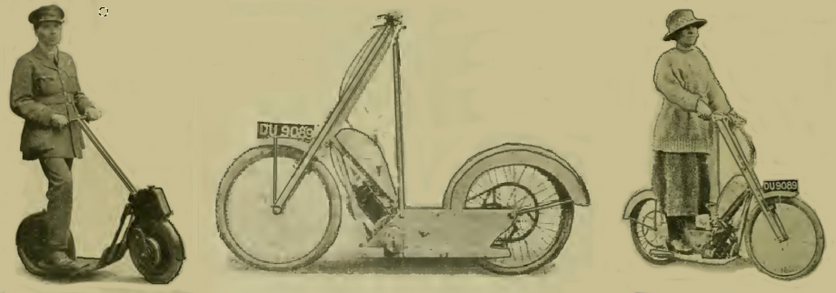

1919 NORLOW SMITH SCOOTS
“Dr AM Low on the ‘Norlow’, which he designed in conjunction with Sir Henry Norman. [Right] A scooter designed and built by Capt G Smith- Clarke for his wife, who is now a scooter enthusiast.”
“SIR,—LET US HAVE THE SKOOTER, SCOOTER, skoota, or anything else that by running, rolling, skipping, or hopping with us on its back gets us to our destination, and, incidentally, causes us pleasure, but it looks very much as if the scooter is going to be merely a weapon of amusement. That is to say, one can do on a push-cycle a great deal more than on a scooter; and if speed is required we must get a real motor cycle. The powers that be warn us against luxuries, and it looks as if the scooter is going to prove one. Good luck to the cycle and motor cycle makers, and to the scooter makers too, if they can plant their product on the foreigner, but it looks very much as if the scooter is just one more damfool luxury—and those of us who are not grocers or munition makers are not buying luxuries now. Because the Americans started scooters, must we? They have a President Wilson, a Meat Trust, and ‘dry’ legislation, too. Do we want them? I don’t think.
THC, Inston.

“ANOTHER FORD RUMOUR: It appears that a large aerodrome in County Antrim, which has been occupied by the RAF, has been purchased by Henry Ford, and on this it is stated that a huge works will be established for the making of motor cycles to be sold at £10 each.”

“THE PREDOMINANCE OF SIDECAR MACHINES over solo mounts now on the road is most marked, and where the single track machine is used fully 50% carry a passenger on the pillion. In club runs especially is the popularity of the passenger machine made manifest: as an example, at the Redditch &DMCC opening run last week between thirty and forty members were present, only two of whom were riding solo.”

“THE OFFICER COMMANDING a Motor Machine Gun Battery writes from the Caucasus: ‘All the best men in this battery who served with me in France were recruited by The Motor Cycle.’”

“WE PERSONALLY KNOW a motor cyclist over sixty years of age. Others of mature years are to be seen on the road, and it would be interesting to know who is the oldest motor cyclist.”

“THE TREASURY HAS SANCTIONED the purchase by the GPO of 500 motor bicycles for the carrying of mails. The experiment will be confined to London at first. Motor cycles have been used by the US Post Office for many years, and we do not doubt that their use in England will be most successful. It is wonderful how slow the Government have been in realising the value of motor cycles until the war forced it upon their notice. For years the American police have employed them, while the only interest the British police force have taken in motor cycles has been the trapping of their riders.”

1919 COVENTRY TRIAL
“Magnificent weather favoured the competitors in the Coventry and Warwickshire MC non-stop reliability trial, when thirty- four members started over a sporting course for the Manville trophy…TR Gibbins (4hp Rex) being timed away…Capt HD Teage (4hp Triumph sidecar) restarting on Sunrising, with K Haziewood (8hp Hazlewood) behind.”
1919 GLASGOW TRIAL
“The first and open hill-climb of the Scottish season was held by the Glasgow MCC. The venue, which was kept secret, turned out to be the famous Rest and be Thankful hill, well-known to competitors in the Six Days Trials…JW Walker (3½hp Norton) at the start…A Brash (7-9hp Harley-Davidson taking the bend on Rest and be Thankful in good form.”
1919 NORTHANTS TRIAL
“At the Northamptonshire MCC hill-climb standard touring machines were made to climb Doddington Hill at their highest and lowest speeds on top gear. The hill was 550 yards long with a gradient of 1 in 5, and each competitor ad to make a standing start, returning to the bottom of the hill after his fast ascent and then making a second top gear climb in the ‘slow’ test, the difference between the two times deciding the results…HJ Bagsley (pictured) won the heavyweight class on a 6hp Rex.”
1919 HULL MANC TRIALS
“One of the competitors in the ‘potato race’ event at the Hull AC&LCC gymkhana. Sidecars being timed away at Didsbury in the reliability trial held by the Manchester MC.”
1919 BRUM TRIAL PORLOCK
“Scenes on Porlock during the Birmingham MCC Trial for the Lycett Trophy. (Left) CH Hartwright(2¾hp New Imperial). (Right) L Newey (4¼hp Ariel sidecar). Both competitors completed the double journey.”

“AT THE ROYAL AGRICULTURAL HALL, Islington, under the direction of the Surplus Government Property Disposal Board, some 300 motor cycles and sidecars were offered by auction…buyers, and would-be buyers, came from all parts of the country in search of bargains. In fact, a queue some 300 yards long had formed before the opening time…It had been hoped that the machines offered would be of better quality than those previously put before a none too enthusiastic public, and also that this sale might mark the decline of the fallacious and exorbitant price reached hitherto. Neither of these hopes was gratified, and there were a great number of machines of the type now referred to as Kempton Park models. It is true that, within crates, in the centre of. the hall were rows of Douglas 2¾hp and 4hp machines which had never been issued to troops, but on either flank was a hopeless collection of rusty, incomplete motor cycles in the last stages of decay and filth. Even the machines which had not been issued were, in the majority of cases, unrideable, since the tyres had decayed until ominous cracks showed round the walls. The rostrum was a raised platform on which was the auctioneer flanked by the military. In front were seats for some 300 people, around stood a huge crowd; and in the future it would be well if the auctioneer were provided with a megaphone. Actually at fifty yards’ range it was impossible to hear a word or to know which machine was being sold. Naturally, tills made a hot and tired crowd very restive, and for the first half-hour of the afternoon it looked as though trouble was brewing. Derisive cat calls, whistles, and shouts of ‘Fetch a megaphone!’ ‘Will the auctioneer speak up?’ and ‘What number are you selling?’ completely drowned speech even at shorter range, while the people on the fringes of the crowd pushed and struggled to the discomfort of all.”

1919 AUCTION DUGGIES
“After many months and after frequent urging by The Motor Cycle, the Government has at last made a start to dispose of the ‘unused’ surplus army motor cycles. The crates shown contain 2¾hp Douglases which were sold for figures around 74 guineas.”

“THE FEDERATION OF MOTOR CYCLISTS, the body which controlled the sporting side of motor cycling in America, has died of dry rot after a spectacular career of sixteen seasons. In its place USA riders have the Competition Committee of the Motor and Allied Trades’ Association. The new body will regulate competition of all sorts in motor cycling, but will not attempt to knit the riders together for social intercourse or to combat adverse legislation. The MATA has ruled that all eight valve and ported motors are barred from mile tracks; that a stock machine is one that may have anything done in the way of tuning, but changing bore, stroke, or compression ratio is barred; that an endurance run is 250 miles long, and that there are no longer amateur and professional riders. American motor cvclists are now novices or experts, with the single exception of a track professional. Once a motor cyclist has ridden for a cash prize he becomes automatically a professional. A novice is a trade or private owner who has never won a leading prize in a motor cycle competition. Riders are classed according to ability and not according to their trade or profession. Thus, a sporting dealer is not made a professional when he compotes for the sheer love of the sport. Road records are officially taboo.”

1919 HMS BARHAM
“Since the removal of petrol restrictions motor cycling has again become very popular in the navy. In a large ship the machine can be kept on board, and even ridden round the quarter-deck for testing purposes. This photograph of a Douglas owner was taken aboard HMS Barham.”

“A READER ADVISES US THAT on the Manchester-Chester road the police recently used a Ford car to chase a motor cyclist, whom they considered was exceeding the speed limit. We wonder whether the Ford won the race, and, if so, whether the policemen were not liable to be prosecuted for exceeding the speed of their victim.”

“IT IS AN ALMOST INCREDIBLE FACT,” Ixion remarked, “that the average motor cycle manufacturer arranges no organised local ‘service’ for his customers in England. Until quite recently you could break an exhaust valve of any leading British engine without feeling at all certain that a spare would be obtainable in the next big town. The firm would have an agency in that town, but an ‘agency’ by no means implied a representative stock of spares, nor does it at this day…Such business methods are atrocious in the twentieth century. Manufacturers should make it part of their agreement with their ‘agents’ that they maintain a stock of at least one of everything likely to go wrong.”

1919 LONED AW

THE MCC STAGED THE LONDON-EDINBURGH RUN annually from 1904-1914. “Now, after five weary years, this classic event will take place once more, and at 9pm on June 6th 176 competitors will start at half-minute intervals from Ye Olde Gatehouse Hotel, Highgate for their four hundred miles trip northwards. Mr HJC Spring, proprietor of the Gatehouse, has undertaken to provide supper for competitors from 6.50 to 8.45 on the evening of the start. He is also prepared to fill vacuum flasks with hot coffee and to provide sandwiches to take away…This year there will be coffee and sandwiches at Biggleswade, the first stop, which are excellent foundations for the dreary drive through the hours of darkness: and the same fare will be on hand at the garage at Grantham…No fewer than forty makes will be represented by the entrants, of which the Douglas leads with eighteen competitors. The following shows the number of machines of different makes: ABC, 3; Allon, 4; AJS, 8; Ariel, 4; BSA, 4; BAT, 1; Blackburne, 4; Brough, 1; Clyno, 4; Coulson, 3; Chater-Lea, 2; Douglas, 18; Diamond, 1; Enfield, 5; Harley-Davidson, 6; Henderson, 1; Hobart, 1; Humber, 4; Indian, 3; James, 4; Lea-Francis, 2; Levis, 2; Mabon, 1; Matchless, 6; Morgan, 5; Metro-Tyler, 2; Motosacoche, 1; Norton, 7; Omega, 1; P&M, 3; Rover, 1; Rex, 4; Rudge, 2; Sirrah Verus, 1; Sunbeam, 12; Triumph, 8; Wooler, 3; Zenith, 8.”

1919 LONED1
“The start—for the first time in daylight. Sec Lt Cooper (No 1), the organiser of the run, and Major LA Baddeiey, awaiting the starter’s signal. RC Davis (8hp spring-frame Chater-Lea sidecar), one of the first of the sidecars to start with lighted lamps.”

In the event 159 bikes left Highgate, cheered away by a record breaking crowd of up to 10,000. “Even the police were interested, and were seen studying the machines with The Motor Cycle as a guide…It was a happy reunion of many old friends, for the entrants had come from all quarters—including Ireland—to compete in the classic event. The Services were well represented…The Clynos now have red and black tanks, and look particularly smart…The new spring frame Matchless and Chater-Lea are a light buff. The latter machine employs a single leaf spring, which constitutes a very neat suspension…As the hour of nine approached, the crowd became denser, and when the first of the competitors—Sec Lt W Cooper (Douglas)—was sent away by Mr AV Ebblewhite, there was only a narrow lane extending for half a mile between two deep rows of spectators. For the first time the trial started in daylight, thanks to summer time, but by the time the first of the sidecars started, it was time to light up, in which connection it was quite noticeable the number of machines which were equipped with electric light. Several of the machines were fitted with the latest Lucas combined lighting and ignition unit. We counted over twenty lady passengers.

1919 LONED2
“JD Campbell and his passenger, New Zealand motor cyclists, on an AJS. Scene at the start—the crowd was immense, and almost completely hid the new machines from view. Lt JAW Armstrong (3½hp Lea-Francis).”

THE RUN DESCRIBED BY A COMPETITOR: Once more en route for Edinburgh after five years’ interval! There seemed to be the same bustle and the same familiar faces. But we missed that searchlight at the start, the darkness overhead, and the hundreds of lamps. Now we comfortably glide away in broad daylight, and the night journey somehow seems shorn of its terrors. Our immediate companions were old stagers, purposely placed in front to lead the way. W Cooper, the trials hon sec, was number one, and for half the journey escaped the dust, a 2¾h. Douglas carrying him on his important mission. LA Baddeley, also on a Douglas, one of the travelling marshals, was number two, and then followed Olsson (4hp Douglas). Our old friend AJ Sproston, now home from Egypt, and back in civilian life, was on a Lea-Francis, Moffat on one of the new 3½hp Douglases, AC Robbins on a new Wooler, Hemy on a Metro, and Scott on a 5-6hp James. It was a perfect evening. The vanguard stopped quite reluctantly outside Hatfield to light lamps. It seemed a shame not to go on until the last glimmer faded from the summer sky. Here we met a small naval contingent, foregathered to cheer their shipmate, Lt Kidston, RN, who, after his ship was torpedoed early in the war, served in HMS Orion under the late Sir Robert Arbuthnot, who told him of the joys of the London-Edinburgh run. Near Welwyn we saw the first victim of the many tyre troubles…It had been very hot at the start, but, once started, it was comfortably cool; so much so that we feared that De Arango, the Brazilian naval lieutenant, who wore only a drill suit and no overalls, would feel chilled to the bone, but he appeared happy, nevertheless, on his Harley-Davidson…Some the competitors used wonderfully powerful head lights, causing a weird effect on those who were not so well equipped. We were using a quite effective and well-trusted small Lucas head light, but some of the electric projectors threw so brilliant a beam that the shadow of the rider ahead danced in front of him nearly all the time, thrown on the road, against the trees, or, worst of all, against a cloud of dust…On the way

1919 LONED3
“At every point the interest of the public in the new mounts was shown by the crowds around them. (Left) A group about Emerson’s ABC sidecar. (Right) Hugh Gibson’s new Clyno is admired at York.”

to Grantham we saw some- thing of the Scootamota, which was being ridden by a non-competitor. To this point it travelled well, but having lost the silencer, blue flame shot out behind. This was the first Edinburgh run in which tail lamps were compulsory, and the effect of the long string of these during the night was very strange, but not all of them, unfortunately, kept alight. It had been a wonderfully fine night run, and an equally fine day followed…The most interesting part of the morning journey was from Scotch Corner to Penrith, through glorious country under an Italian sky, but, unfortunately, the dust! Several competitors continually rode in inseparable groups. DS Baddeley (P&M) had contact breaker trouble near Brough, whilst Douglass (Harley-Davidson sc) was in collision and buckled both wheels and retired. W Cooper (Douglas), who had had electrical trouble, passed at a rare ‘bat’ near Penrith, his troubles over for the day. Luigi (BSA) had punctures in this section. News also reached us that the fine old sportsman Dover (Douglas sc) had to withdraw owing to eye trouble due to defective goggles. After luncheon at Carlisle the sky became overcast, and a violent south-west gale sprang up…Hawick, the next and last check before Edinburgh, was enjoying a holiday, and the

1919 LONED4
“Nearing the finish—competitors going well after eighteen hours riding. At the York check, which was in the hands of the Rev HTS Gedge, who is shown taking the times of KV Chidley (flat twin Wooler) and GF Ammon (2¾ Metro-Tyler). Competitors being checked at York. The makes of machines shown are, reading from left Matchless, Zenith, Triumph, and Sirrah Verus.”

streets were thronged with people. Later in the afternoon rain fell heavily, and the journey, almost to the finish, was by no means comfortable. Happily it was fine again before Liberton was reached, and, except for this final downpour, the weather had been glorious. Naturally, the number of successes was considerable. But ill-fortune overtook a number among these, other than those previously mentioned, being Frank Smith, who, owing to gear box trouble, retired at Doncaster. Another of the new models which failed to finish was the flat twin Wooler (ridden by AC Bobbins) which developed engine trouble near York. The sister machine (ridden by Chidley) finished successfully. Nias (Rudge) was reported to have retired after an accident, while Harrison (Norton) had his magneto break down before reaching Grantham. Clease (Norton sc) suffered with tank trouble early in the run, and failed to finish.” Gold medals were earned by 115 riders withy four silver and a single bronze; one was ‘held over’ and 14 failed to finish.”

1919 LONED MAGDYNO
“HR Lane, a competitor in the London-Edinburgh run, with his 4½hp BSA, fitted with the new Lucas Magdyno. The new Lucas Magdyno ignition and lighting unit on an AJS machine.”

NOTES ON THE TRIAL: Altogether the run was one of the most successful the Club has ever held, and the organisers deserve the greatest credit…George Wray rode a 1909 Triumph he bought for £14, which he fitted with a gear of his own design…The inseparable Jacobs and Le Grand could not compete, as their new Rex mounts could not be completed in time…Mr Duncan-Watson thoughtfully presented each Harley-Davidson driver with a box of cigarettes and matches…Major Baddeley (Douglas) came through successfully on tyres six years old…Emerson’s ABC outfit was only finished at the last moment. The engine had not even fired before ten o’clock on the morning of the trial…The 1919 model all-black AJS sidecars ran like clockwork throughout…Most of the non-starters were prevented from competing from the ail-too prevalent delay in delivery of new models…A press photographer on the London-Edinburgh run astride a 4hp Triumph carried his wife, two cameras, and a tent in which they camped out at Grantham. They completed the run…As an example of the silence of the modern twin, two competitors in the London-Edinburgh run, riding the new Clyno and AJS sidecar, carried on an easy conversation while maintaining an average speed of 20mph…The new Lucas Magdyno combined ignition and lighting unit made its dihut on several machines in the London-Edinburgh run. The Magdyno which has been undergoing road tests during the past two years, is the first British made apparatus of this kind, and prbably will be ‘standard’ on a large number of 1920 models which have been designed specially to accommodate it.”

1919 LONED BIKES ALT
“Some of the new models in the London-Edinburgh run: (1) 5hp Brough. (2) 3hp ABC. (3) 2½hp Clyno. (4) The new spring frame 8hp Chater-Lea (5) A spring frame hghtweight-the Hobart. (6) A 3½hp spring frame Douglas. (7) The flat twin Wooler. (8) The new Model 77 Rex single. (9) One of the new 8hp Clynos. (10) An 8hp spring frame Matchless.”

THE DAY AFTER THE LONDON-EDINBURGH the Liverpool MC staged an open reliability trial in the Welsh Hills. To promote the iuse of home-produced fuel entry was restricted to bikes running on Benzole (yes, gentle reader, Britain used to make its own ‘motor spirit’ and it was cheaper than petrol. You’ll have to ask the giant oil companies why we stopped). “The first trial to be run on benzole turned out to be a strenuous test for even modern machines, and of the thirty-four starters only ten qualified for first-class awards. The course was 134 miles, and included Cilcain Hill and Bwlch-y-Groes, which proved formidable for machines running on benzole where carburetters had not been retuned. This and the strong following wind caused many machines to overheat.” The London-Edinburgh was a gruelling event; so was the ‘benzole trial’. Hmmm…why not do both?

“A STRENUOUS WEEK-END: Three competitors in the London-Edinburgh Run went through the Liverpool MC Trial on Whit-Monday. These were Gordon Fletcher (4 Douglas sc), Rex Muudy (8 Matchless), and AG Cocks (2¾ Clyno). Fletcher carried his wife as a passenger, and when we saw the pair at the conclusion of their strenuous week-end, they appeared very little the worse for their several jiights in the open. Fletcher’s ‘adventure’ began by having to ride his Douglas from Bristol in the night three evenings before the start of the London-Edinburgh. The next evening he went to Eastbourne and back to fetch Mrs Fletcher, and the whole of the following night was used preparing for the event. The scooter which had created so much amusement at Highgate was seen en route on the running board of a Sunbeam car, to which it acted as a kind of tender. At Grantham, Mundy bought, for 1s 6d, some coupons which were supposed to admit him to the refreshment caterers. These, however, proved to be valueless, and the vendor had disappeared. Mundy carried the joke a point further by re-selling the tickets to a fellow competitor for 2s. Between York and Carlisle, eye troubles were fairly general, and Mundy was compelled to stop every few miles to bathe his eyes at wayside cottages. A Harley-Davidson was passed on the roadside, and it was evident, from its condition, that the driver had fallen asleep and driven into the ditch. Thompson (Douglas) rendered assistance, and carried the competitor’s ACU ‘get-you-home’ coupon to Appleby, where he arranged for a lorry to fetch in the machine. At Edinburgh, Mundy’s passenger preferred to camp out rather than to find accommodation at the hotels, and Mundy was not able to find him for the trip to Liverpool. Fletcher and Mundy, with their sidecars detached, caught the 4.55 train out of Edinburgh. Sunday travelling by train proved very trying, but after several changes they arrived at Warrington at eleven o’clock, where they were met by J Swinton, an energetic member of the Liverpool club, who, notwithstanding having to get back to Warrington and to start in the trial next morning from Queensferry, piloted them for ten miles or more on to the best road for Chester. Swinton also provided benzole, and for the wholehearted manner with which he rendered service was voted a ‘good sport’. It was now raining hard, and arriving in Chester at 2.30am the party went to an hotel, where they were treated well, although no beds were available. It was too early for breakfast when they left for the start of the Liverpool trial, but this did not seem to disturb any of the enthusiasts, including Mrs Fletcher, who, by the way, is ah old hand in competitions. Before her marriage she was Miss Hamnett, by which name many of our older readers will recall her. The Matchless and Douglas were now taken through the Welsh trial, but owing to the use of benzole without retuning the carburetters the engines of all the machines in the trial showed signs of overheating. Tuesday was spent by Mundy on business for the ACU, of which he is the engineer and travelling representative, and a start was made for London in the evening. At four o’clock on Wednesday morning a puncture in Fletcher’s rear wheel caused the party to stop, and, instead of mending it, the two men lay down on the roadside and journeyed to the land of dreams. At 6am Mrs Fletcher shamed them by waking them with the intimation that she had mended the puncture and arranged for breakfast at a cottage a little distance down the road. Then the final stage of the journey was completed—a mere 150 miles or so, making a total of 800 miles. A strenuous weeked indeed!” PS: Cocks won a third-class award having failed to climb Bwlch-y-Groes and Old Horseshoe Pass. Fletcher did not collect an award as he completed the course outsiode the time limit having also failed to climb Bwlch-y-Groes. Mundy, however, was one of the 10 riders to win a first-class award.

1919 MUNDY FLETCHER
“Rex Mundy (8hp Matchless sidecar) and Mr and Mrs Gordon Fletcher (4.p Douglas sidecar), who competed in both the London-Edinburgh run and the Liverpool MC trial in North Wales—a strenuous weekend.”

“THE OUTSTANDING FEATURE OF POST-WAR motoring, undoubtedly, is the large number of family sidecars to be seen on the road…apparently, every member of these parties is comfortable, despite the fact that imagination prompts one to believe only a jig-saw can rival the intricate manner in which lower limbs are interlaced…The rider of the old school fits as light a sidecar as he can obtain if he uses a ‘3½hp’ for passenger work, and has an uncomfortable feeling most of the time that he is not giving the engine a chance. Such thoughts rarely trouble the family sidecarrist of today—and it is a tribute to the two or three-speed motor cycle that things do not happen to compel these owners to consider their engines a little more…Many of these family sidecars are owned by newcomers to the motor cycle fraternity, who reap the benefit of the pioneer work done by The Motor Cycle, which, for six years, ploughed a lone furrow in motor cycle

1919 FAMILY SIDECARS
“Happy owners who believe in sharing their motor cycling pleasures. Apparently only the accommodation of a five-seated car can excel that of a sidecar outfit!”

journalism and so prevented the threatened demise of the industry when motor cycles were unpopular and unreliable. To The Motor Cycle campaign and the ACC trials is due the change-speed gear as a general fitment on motor cycles, which makes them suitable for passenger work…today the average ‘3½hp’ will not only ‘take’ a sidecar, but the average family in addition—and do it well…No doubt sidecaring as a family pastime will do much to influence domestic happiness. It binds all—father, mother, and children—together with one common interest and prevents the disintegrated household one often finds, where each member of a family has to find his or her own amusement. A week-end on the road is a most valuable tonic to a tired woman, and breaks the deadly monotony of housekeeping that disgruntles many a worried wife and mother. The week-end on the sidecar with picnic baskets and children breaks up a long procession of 365 colourless days into five-day weeks of pleasant reminiscence and anticipation, each divided by full-of-incident journeys into country which otherwise they would rarely see. Apart from the health point of view, the education of the children is improved, and they are better able to absorb their school lessons because their wits are sharpened. In short, the sidecar is a real boon to the family man, and he is not slow to realise this. It behoves sidecar manufacturers to remember his special requirements when designing new models and to allow plenty of space and strength.”

1919 FAMILY SIDECARS2
“Four BSA owners making the utmost use of their outfits. Eleven passengers were on this occasion easily conveyed on four outfits through the most beautiful scenery in Wales. Seating a child on a hassock in the toe ot a sidecar relieves the passenger of much discomfort.”

Here are two smashing illustrations by the superlative F Gordon Crosby.

1919 PICNIC PIC
“Summer days amid the sand dunes. No summer would, of course, be complete without a holiday by the sea, and no holiday complete without those delightful picnics with the ‘old ‘bus’ to assist in finding the ideal spot.”
1919 FOREST SHADE PIC
“In the cool shade of the forest. Unsuspected beauty spots by the wayside are revealed to the explorer of by-ways such as that depicted—the sidecarists passing from the blazing light of the sun to the cool recesses bordering a wayside pool.”

“THE TAIL LAMP FAMINE: For some mysterious reason,” Ixion reported, “the scarcity of such commodities as whisky, beer, English beef, £50 1919 motor cycles, and dwelling-houses is a veritable superabundance as compared with the famine in motor cycle tail lamps. Some nimble-fingered gentleman of the road stole mine the other day, and I have tried all the leading London and provincial houses without meeting anything but derision from the salesmen. If they are truthful, there has not been a motor  cycle tail lamp delivered since the  Armistice. I have even endeavoured to buy one tenth-hand, proffering its weight in gold, but to no purpose. I have essayed to steal one, as people do when their umbrella is taken ‘by mistake’, but tourists appear to detach these fittings, and, go to bed with them. I have a car tail lamp in my garage, so, gentle reader, if you meet a Baby Levis purring through the twilight with a 12in paraffin Dependence tail lamp secured on its carrier by eight yards of barbed wire, you will know that you have caught one fleeting glimpse of that elusive pseudonym ‘Ixion’. Have the Huns nefariously got their own back on us by cornering the world’s output?”

1919 ALCOCK
“Capt Sir John Alcock, DSC (who, with Lt Sir A Whitten Brown as navigator) is the first and only airman to make a direct flight across the Atlantic. He is depicted above with his overhead valve racing Douglas.”

“A COUPLE OF BURNING QUESTIONS in the motor cycle world at the present time are ‘How to determine a winner in competition without resort to the objectionable secret check’, and ‘Motor scooters’—to stand or not to stand? The first query is an ancient one, the latter is of much more recent origin, and it was partly with the object of assisting in the solution of the questions that the idea of a road test by The Motor Cycle staff was conceived. Thus it was that the various members of the editorial, artists’, and photographic staffs converged on the Edge Hill range from London and Coventry last week on solo and passenger machines of all types and sizes. Three scooters—the Smith-Clarke, the Autoped (an American production), and the ABC Skootamota—were at the hill, two, shame to relate, conveyed thither in the tonneau of a car, but the ABC, with its sensible pan seat, was comfortably ridden from Banbury ready for the fray. Perhaps,

1919 SCOOTRACE1
“The first scooter race. A highly amusing event. The fastest was estimated to do 15mph.”

naturally, the scooters formed the greatest novelty at first. Venturesome spirits disported themselves up and down, performed evolutions in the shape of circles as small as threepenny pieces and figure eights, as if practising for the blue riband of the skating world. Of course, the ladies of the party were immensely attracted by the ‘funny little’ motor bicycles, and a queue had to be formed to enable each one to take his or her turn on the ‘joy bicycles’. Stand up and sit down seats were provided, and each formed his own opinion of desirable features of the ideal scooter by the comparisons afforded. It was indeed an educational event, for, despite all the prominence given to scooters, one doubts if three had ever before run together at one time. But the Autoped had developed a fit of the sulks, and was grunting up and down the course very disconsolately, perspiring individuals on that gorgeous day chasing il down the roadway. Apparently, the twist grip on the joy stick stuck, and no amount of adjustment would persuade the combined throttle decompressor to continue to work; but a more ingeniously thought out machine one could hardly imagine. By pulling the joy stick towards the rider the free engine is operated, and further downward pressure applies the brake. Starting, however, was not too easy, as the weight of the engine being so far forward, violent pushing to

1919 SCOOTRACE 2+4
“(Left) A slow race for solo mounts, won on an Edmund spring frame machine fitted with the new ‘Union’ power unit. The Enfield took second place. (Right) The winner of the sidecar class in the stopping and re-starting test—an 8hp Victory Matchless.”

start resulted in the rear portion jumping up and kicking the rider on the calf. That vice did not deter the intrepid riders, for several fresh from the Army (there were six captains present) wore field boots! As a result the little American gracefully reposed most of the afternoon in the shade by the roadside, and it is now for sale at the bargain figure of £100! So novel had these scooters proved that many well stocked picnic baskets were neglected during the luncheon hour. Soon all present considered themselves sufficiently proficient to start in the great motor scooter race—the first of its kind—which was to follow. The scratch event was run oft in pairs from the scratch mark, the winner of the heats appearing in the semi-final. During the heats each competitor judged his own speed (which formed one event of the afternoon), and an average was struck to determine the handicap for the semi-final and final events. A spin of a coin gave the choice of machines. The seven heats in the first round were all wins for Skootamota, partly on account of the fact that, with its saddle, it approximates to a motor cycle, and most of the competitors were more accustomed to this form of vehicle than the newer type with platform only. The races, however, were closely contested, and, once away, the Smith-Clarke showed a good turn of speed. In the second round, the Smith-Clarke was given 12yd start, in consideration of the tact that its engine was fifteen years old and scarcely a fair competitor for the latest Granville Bradshaw creation of the same capacity. The results in the three races in the second round gave two wins to the Smith-Clarke, and in the semi-final each won one race. Finally, the little Clement Garrard engine on the Smith-Clarke roared as it had never roared before, and got home a winner of the first scooter race by about 8yd. Later, however, the ABC production levelled up matters by climbing the 1 in 7 gradient of Edge Hill, piloted by an eleven stone rider, which was a really remarkable performance for so small an engine with a single gear ratio. Slight assistance with one foot when in sight of the summit was all that was necessary. Incidentally this test was made to settle a wager between a scooter enthusiast and one of the staff who was sceptical. The next event was a single gear ascent of Edge Hill on a lightweight machine so adjusted that it could not possibly climb the hill—a simple test of driving skill. The winner, who had never previously seen the machine, got

1919 SCOOTRACE3
“Ladies rode the scooters without the slightest hesitation, and completely mastered the controls after a minute or two’s explanation.The seatless Smith-Clarke  and the ABC ‘Skootamota’.

half way up the gradient before he stopped. Here it may be interposed that no watches were used throughout the afternoon—The Motor Cycle staff have a natural objection to any trial decided by the watch, but prefer to concentrate on the survival of the fittest amongst the competitors. The complete regulations for the six events of the afternoon were, as a matter of fact, included on a postcard, which suggests that in many cases trials regulations are overdone. The event which followed the test of driving skill was the most strenuous of the afternoon. The regulations for the event were quite simple, viz, acceleration, braking, and clutch tests. Standing start; two stops and re-starts at points indicated. Class I, solo machines; Class II, passenger machines. It was a type of event calculated to weed out competitors who failed to handle their machines skilfully; whose brakes were bad; whose clutches were fierce or badly proportioned; whose gearchanges were difficult and awkward to operate, besides which a premium was placed on acceleration between the tapes. In the first heat a 4 standard Triumph sc competed against a 4 experimental chain driven Triumph sc. Both machines went up well, but the latter had a smoother clutch, and made the restarts without hesitation and won. A 5-6 Kover sc and a 4 Norton were matched for the second heat. Both were new machines in magnificent fettle. The Norton was away first, but the Rover got ahead before the first stopping point. The Norton rider, however, got away more smartly, and both roared up to the next stop. The twin, however, finally won the heat. An 8 Victory Matchless was drawn against the cham-driveu Triumph in the scmi-tinal. On the first section of the hill the ‘single’ held its own, but at the critical moment the terminal jumped off the plug, which left the JAP-engined Rover and Matchless sidecars to decide the final heat, and the 8hp mount won comfortably, though each machine restarted with ease on three occasions during the course of the climb. In the solo class a modern ABC first competed with a rider of a 2½ two-stroke Excelsior, and, naturally, won. The 3hp Enfield, though behind at the last stopping place overtook and passed the Lea-Francis near the summit. The ABC was then matched against a ‘Union’ engined Edmund, and won, but lost the event in a final trial with the Enfield fitted with an RCF carburetter, which, notwithstanding its age of five years, showed a fine turn of speed, and led all the way. The ABC clutch was slipping. Incidentally, a very favourable impression was obtained of the new Union power unit which the staff is testing at the present time. The new Norton and Rover, too, were exceptionally fast, and a little Excelsior demonstrated its power by climbing nine-tenths of Edge on standard top gear with an” eleven stone rider. The final event, a slow ‘race’, for solo machines, was won by the rider of the Union-Edmund, who travelled so slowly that he had difficulty in balancing the machine. The Enfield was second. A sporting afternoon’s programme, attended by glorious weather, ended with those present being entertained to tea on the terrace at the Round Tower by the Editor.”

1919 SCOOTRACE5
“A new event with an old background. The Motor Cycle staff of writers, artists, and photographers congregated at the Round Tower, Edge Hill.”

“EX-MOTOR CYCLE DESPATCH RIDERS, who have served as such in any branch of the Services, are to be given first refusal of a large number of surplus Government motor cycles. The only condition attached to the offer is that the motor cycles shall not be re-sold within six months. The following machines are available immediately: Several hundred new Douglas motor cycles, in crates, at from £50 to £70; a large number of repaired Douglas motor cycles at £40 to £50; and a quantity of repairable machines at various prices. Application should be made in the first instance to the Secretary, Auto-Cycle Union, 83, Pall Mall, London, SW1, stating name of unit in which applicant served, and date of discharge.”

“IF JUSTIFICATION WERE NEEDED for the new policy of the ACU in holding its meetings at different centres, the success of the Bristol meeting provides it. At no time has the Auto Cycle Union had such a well attended committee meeting—nor such a representative one…members of the committee journeyed from as far North as Sunderland, and from Loudon, Liverpool, Manchester, Birmingham, Coventry, and other centres in order to represent their ‘constituents’ at the motor cyclists’ parliament. The committee meeting was held in Camera, but it was obvious to the most casual observer that a new enthusiasm animated the ACU committeemen who invaded the Grand Hotel. As frequently pointed out in The Motor Cycle, provincial motor cyclists before the war regarded the ACU as a London organisation run by Londoners for Londoners. This

1919 ACU BRISTOL1
“The interest oF the public in motor cycles was exemplified at Bristol last Saturday, when the ACU committee was entertained by the West of England club.” (Right) “The ACU committee in a convoy of Douglas sidecars.”

feeling has changed. The ACU is now regarded as a national institution, and in truth becomes the motor cyclists’ parliament, representing 32,000 riders who support it, and considerably over a further hundred thousand who do not. Large as is the present number of members, half of whom have joined this year, it should be larger, and without doubt such events as that which we attended last week at Bristol will go a long way toward securing the support of those who at present allow others to fight their battles for them. Bristol has always been a hospitable city. The committee of the ACU knew this before their visit, but it is doubtful whether any one of the visitors expected quite such a hearty welcome as that arranged for them by the Bristol Motor Cycle Club. At nine o’clock on Saturday morning over forty Douglas sidecar outfits were lined up before the hotel entrance. Each was numbered, and delegates and pressmen were allocated machines, which they were to regard as their vehicles for the day. These machines were driven by members of the club, officials of the Douglas works, and Douglas testers, and were, with one exception, standard 4hp models. At 9.50am the long line of machines moved off in single file, and threaded its way through the traffic of the narrow crowded streets of the city to the Douglas works at Kingswood. Here they were met by the principal of the famous Bristol firm, who, to emphasise the hospitality of his city, threw open the works for inspection. There was more than hospitality in this share of the city’s welcome to the visitors. Among the delegates were the heads and designers of several contemporary firms, and this broad-minded action on the part of Messrs Douglas Motors set a precedent of what, in future years, may become general practice. It was exceedingly pleasing to us to see this whole-hearted invitation io all interested in the development of the motor cycle, for such visits must ultimately be of great benefit to all concerned in the production of motor cycles in particular, and to the field of British engineering generally.

1919 ACU BRISTOL2
“Four companies ot the 1st Motor Battalion, Machine Gun Corps, at attention in the Bristol Rally.”

The visitors were piloted through the works in parties by the works manager, and were shown Douglas motor cycles in every stage of construction. The works have been greatly extended during the war, and equipped with magnificent plant…The afternoon part of the programme commenced with a return in the Douglas sidecar convoy to the city, where, at College Green, the visitors were met by the local motor cyclists. Before the cathedral four companies of the Motor Machine Gun Corps stood at attention. This company, commanded by Maj B Arthur, DSO, consisted of eight Clyno sidecar gun carriages, mounted with Vickers machine guns, eight spare carriages, eight ammunition carriages, four section officers, and four scouts mounted on 1916 4hp Triumphs. The Bristol club officials now led the way to Clifton Downs, and the long line of motor cycles with the machine guns practically encircled the Downs, where they exemplified the utility of the motor cycle in peace and war…after a short stay the visitors proceeded across Clifton Suspension Bridge to the beautiful Ashton Court Park for the gymkhana. Here several hundred other motor cyclists welcomed the party, and the sports commenced. The events included a slow race, tilting the ring, musical chairs, long jump, and obstacle race, after which the Motor Machine Guns gave an interesting display…the Bristol MCC are to be congratulated upon the splendid organisation which permitted them so thoroughly to entertain the ACU.” The Motor Cycle had famously recruited some 11,000 of its readers during the war; it was clearly happy to keep waving the flag during the peace: “It was quite a happy thought on the part of the individual who invited the Motor Machine Gun Batteries to participate in the Bristol rally. The four companies…created a very favourable impression, and we were struck by the very apparent enthusiasm of the men. During the gymkhana…some of the officers and men competed in most of the events, and the camaraderie which existed between officers and men was clearly apparent. In the procession, and later in the gymkhana events, great skill was displayed by the drivers, Lt Bradshaw in particular shining when it came to ‘stunt’ performances. We understand that this unit has authority, and is prepared, to accept suitable motor cyclist recruits. The corps is recommended to any motor cyclist or would-be—motor cyclist who is at a ‘loose end’ and who would appreciate membership of what is, to all intents and purposes, an up-to-date motor cycle club, with all found and no subscriptions to pay. Major Arthur informed us that there is a certain amount of light duty, but plenty of leave and liberal pay, a most excellent combination of duty, business, and pleasure.”

1919 ACU BRISTOL3
“The Gymkhana. (Left) A competitor in the ‘long jump’ competition [which was won by Lt Bradshaw on his 4hp Triumph, who was airborne for 27ft]. Right: Tilting the ring.”
“A SIDECARIST GARAGED HIS MACHINE for three days at Bournemouth. After leaving, he found a pair of driving gloves in the sidecar. He reported the find to the garage without result. Will the owner communicate with us?”

“THE FOLLOWING IS THE NUMBER of motor cycles purchased by the Government from the beginning of the war up to September the beginning of the war up to September 30th, 1918: Triumph, 6,290; Douglas, 6,998; Clyno, 191; Enfield, 14; Rudge, 141; Zenith, 220. Sedecar outfits: Douglas, 1,180; Clyno, 733; BSA, 546. These figures do not include the P&Ms of the Flying Corps.”

“THOUGH stated not to be a freak coarse, the route chosen by the Edinburgh MCC for its recent trial was particulariy severe. The course consisted of close upon ninety miles over mountainous country creating at first a happy impression, whicli rapidly receded as the day advanced. The last sixty miles left an impression of watersplashes, hairpin bends, steep gradients, loose sandy surfaces, gates, rocks, and countless observers. There were seven observed hills, and each one took its toll, so that when once the wild country was struck the weeding out process proceeded very rapidly. The entries included many novices—one lady rider of a 3hp Enfield and several school boys who certainly made up in keenness what they lacked in experience…After tea the process of elimination proceeded very rapidly. Continuing to Donnally Buru we found Arkman Smith (3¾hp Scott) emerging from a collision with one of the sidecars. His frame was badly twisted and his low gear rendered inoperative, which was hard lines, since he had ridden well; but he pluckily finished the event…Reservoir Hill and Slade Hill were more by way of being driving tests than anything, both containing hidden hairpins on their steepest and

1919 EDINBURGH OPEN TRIAL
“Edinburgh MCC open trial. Despatching competitors after tea from the checck on Snout Hill.”

loosest portions, and the last named accounted for no fewer than sixteen faulires among the few survivors! We noticed one Harley-Davidson travelling at speed with a broken sidecar coupling, while another, in the midst of a fine ascent, suddenly stopped down with gearbox trouble—apparently seizure. Several riders crashed on one or the other of these hills and so spoilt their sheets…the following competitors got through without loss of marks—truly a worthy performance: Jas Beck (3½ Sunbeam sc); CS Burnley (4 Blackburn); WB Fenwick (6 Rover sc); WS Miller (3½ P&M); JR Alexander (6 Enfield sc); AB Bruce (6 AJS sc); AH Alexander (3½ Douglas); J Armstrong (8 Enfield sc); Duncan Bell (6 AJS sc); JW Anderson (8 Bat sc); Frank Smith, (8 Clyno sc). It will be observed that only three solo riders out of thirty and eight sidecars out of thirty-one are mentioned. All the survivors surmounted very great difficulties, but Beck (3½ Sunbeam sc) and Burnley (4 Blackburne) undoubtedly put up the surprise performances of the day. They held Nos 1 and 2, and kept together dead on time throughout the event. The organisation of the event was excellent throughout, and Messrs Macrae and Hutchinson, with whom the responsibility mainly rests, are to be congratulated on the results. The weather was perfect, and the whole event proved most enjoyable and interesting.” The Edinburgh club also announced a race meeting at Lanark Racecourse and, as a sign of the times, the classes were defined by cubic capacity rather than horsepower. Five-mile ‘scratch races’ were to be run for solos up to 400cc, 600cc and 1,000cc, and for solos up to 1,000cc.

1919 THREE VETERANS
The Blue ‘Un set out to find England’s oldest motor cyclist. These veterans had a total age of 220. From the left: R Wolstenholme (77), FG Hillyer (68) and Jas Scott (75). Wolstenholme said: “I enjoy a good spin as well as a lad of twenty. I attribute my good health a long life largely to the use I have made of the cycle as a means of going about the country and getting out into the fresh air.”

“NOW THAT PROVISION IS BEING MADE for the inclusion of motor scooters in competitions, the need for some official definition which would clearly show the line of demarcation between the scooter and the miniature motor cycle becomes apparent. We contend that the question of accommodation is the easiest and truest point to be considered in this direction. The term ‘scooter’ was applied to the pre-war platform machines by The Motor Cycle, because they resembled the pavement toy so popular with the younger generation. A scooter, however small, can no longer be regarded as such if it is provided with a seat. Obviously it is an open-frame miniature motor bicycle; therefore, we think, when the governing body sit to define the scooter, as soon it must, a suitable definition may be arrived at which will meet the views of the majority.” [We can only wonder how the Blue ‘Un scribes would have reacted to 21st century scooters with 850cc, 75hp engines, 16in wheels and 120mph performance.]

“ALTHOUGH IT IS TRUE THAT LIGHTWEIGHT motocycles have received a certain amount of encouragement in the trials of the past, we think that rather more might be done to aid the development of these little machines and make them more suitable for serious touring. We are not thinkingofmachines having engines with a capacity in the neighbourhood of 300cc and more: these have long since proved their capabilities for practically any service which, may be demanded of them. Rather we have in mind the really small and light machine with an engine capacity of not more than 225cc and weighing about 100lb…motor cycles of this type are often bought simply as runabouts for use on short journeys only, but, though they are not to be compared with heavier and more powerful mounts in the matters of comfort and speed on long journeys, they are really capable of much more than this.”

“THE 1920 CLYNO ON THE ROAD: The new 8hp Clyno’s V twin engine is 76mm. borex102mm. stroke, giving 925cc; the transmission is by totally enclosed chain through a specially designed three-speed countershaft gear to a sprung rear wheel; the sidecar wheel is also sprung. Our journey started from the works at Wolver- hampton, and the first fifteen miles were a horrible dream, as regards road surface ; if anything worse exists than this road through Walsall to the suburbs of Birmingham, then a tank is the only suitable vehicle to traverse it. Had there been any defects in the springing system this section would have shown them up, without doubt, but…not one really bad jolt was experienced by passenger or rider…The run was continued via Dunchurch and Dunstable to London, thence up the North Road to the neighbourhood of York; here we turned south through Derby to Wolverhampton again—a rund trip of nearly 400 miles. Hills are unimportant on the earlier part of this route, and the machine simply hummed along at an even ‘bat’ somewhere around 30mph in the smoothest possible manner; it appeared possible to continue indefinitely. Both the sidecar passenger and the driver had, in Army parlance, a decidedly ‘cushy’ job. The springing system, coupled with the

1919 CLYNO TEST
“Mr Frank Smith, with The Motor Cycle representative, aboard one of the new 8hp Clyno outfits.”

unusually roomy sidecar, gave comfort, the like of which used to be found only on a good car; it was quite possible to write fairly legibly, and later, during the run, which was continuous over some twenty-two hours, the passenger slept soundly for a time. The almost silent running will satisfy the most fastidious—it may be compared to the ticking of a sewing machine. So pronounced is this point that, when the first change from low to top gear was made, we thought the engine had stopped accidentally. On the return journey one or two fairly steep hills were encountered in the neighbourhood of Nottingham; on one of these one might quite reasonably expect to change down to second gear with any modern touring outfit. The Clyno took it on top. and, more than that, it was slowed and accelerated again several times with perfect ease; the average speed on this hill, for a little over a quarter of a mile, was about 25mph. The throttle was never quite fully open, and the load was a good touring standard…More than a passing word in praise is due to the transmission; snatch is entirely absent, the clutch operating very smoothly. Lubrication occasioned no worries; there are two systems. One is a mechanically-driven pump, forcing oil through a sight feed, and the other is the ordinary plunger pump. They may be used together or apart. On a run of 400 miles one finds time to pick out faults if they exist, but our chief difficulty seems to be to describe impartially whilst keeping a curb on the superlatives. Without doubt we retain a definite impression of one of the best passenger mounts which will come before the public this year…when the fortunate purchasers of the new model take delivery they will, we feel, agree with our restrained eulogy.”

“REALLY SUBSTANTIAL GEAR ASSEMBLIES are few and far between at the present time, so that motor cycle manufacturers as a whole will welcome the appearance on the open market of the Burman gear units, made by Messrs Burman and Son, Ltd, Ryland Road, Birmingham. These are by no means new propositions. Before the war the small gear box was very popular with several makers of light-weight motor cycles, and during hostilities the larger one has been supplied in considerable quantities to the makers of the 8hp New Imperial, on which machine it has given every satisfaction. Unfortunately, at present, the output is some- what restricted, and Messrs Burman are not able to cope with the existing orders, a state of affairs it is hoped will not obtain for long. The two principal models are a two-speed and clutch light-weight box with kick-starter, and a three-speed box with clutch, kick-starter and shock-absorber for machines of 4hp and over.”

1919 BURMAN BOXES
“Lightweight two-speed and clutch assembly for chain-cum-belt drive. Chain drive heavyweight three-speed model weighing only 30lb.”

“THOUGH WE DO NOT CONSIDER that taking of a passenger on a solo motor cycle carrier is either desirable or particularly safe, we cannot agree with the policy of several district councils in asking the Government to make carrier riding an offence under the Motor Car Acts. To render this method of taking a passenger illegal would be distinctly interfering with the liberty of the subject. A motor cycle is a private vehicle, and there is no law to compel a passenger to ride on the saddle only. He or she is equally well entitled to ride on the tank, top tube, or handle-bar. Carrier riding on a solo machine is not a particularly safe method of progression, since, with a passenger on the carrier, the steering of the machine is slightly affected, [but on] good roads, when reasonable care is exercised, the danger may be considered negligible.”

IXION HAD GOOD CAUSE TO REFLECT ON The Importance of Being Earnest: “The term ‘earnest’ as applied to a motor cyclist includes nightly attention to every bolt and nut on the machine, according to Cocker (ie Motor Cycles and How to Manage Them). I was never ‘earnest’ in this sense, being born with an irresponsible instinct for chancing tiresome details. So it fell on a day that the industry was almost relieved of the impertinences of this giddy scribe. What with being demobbed, and the sun shining, and having just got over being jilted by Araminta in favour of a bloated munitioner, I was driving a trifle bluer than my wont: in fact, I was indulging in what might be termed a spiritual TT and seeing how little time I could waste round corners. The particular corner which nearly created a vacancy for a man of push and go on the staff of this journal approximated in plan to the elevation of a church steeple, and was fortified by an extremely forbidding stone wall. I roared up to it at full revs, and at the fifty-ninth minute of the eleventh hour I shut my throttle lever and stood on my brake. The engine maintained fiill revs, and ate up the brake as if it had been tissue paper. With great presence of mind I lifted the exhaust valve lifter. The engine maintained full revs, very cheerily. By this time my front mudguard extension was within a few millimetres of the above-mentioned stone wall, and the pace was terrific. Another brain wave—I stood heavily on the clutch pedal, having no switch, and applied the front brake with vim and vigour. The machine did a sort of shimmy-shake skid, and twisted itself round the corner fearsomely. I stopped the engine by turning off the petrol. Item: the throttle wire was looping the loop outside its casing, instead of going home to bed. Item: the exhaust valve lifter had shed two weeny screws into the road. Item: the clutch control depended on two microscopic nuts apparently intended to secure a sewing machine needle to its holder, and the sole survivor of the pair was hanging on the last whorl of its thread. I must have been born to be hanged. Draw the inevitable moral, gentle reader. Motor cyclists should be ‘earnest’ at all times, and inspect all nuts and control connections daily. It is even more important to be earnest when you receive your discharge and return home to bestride a neglected ‘bus in somewhat light-hearted fashion. A tuft of grey now distinguishes my raven forelock.”

1919 2 SCAR DESIGNS
Left: The folding sidecar chassis designed by one Fred Hopley of Birmingham must have appealed to enthusiasts with narrow passages. Hopley reckoned the sidecar body could be attached or detached in five seconds withour recourse to tools; removing the sidecar allowed the chassis to be folded, reducing the overall width to just 28 inches. Right: Aeronautical and Motor Engineers Patley & Co of Westminster came up with a more substantial family sidecar with seating for an adult and two nippers. The children’s seat could be folded out of the way to make lots of room for a single passenger; they were QD, leaving luggage room in the nose of the chair.

“THE ARBUTHNOT TROPHY, A STATUETTE of the late Rear Admiral Sir RK Arbuthnot, Bart, executed by Lady Scott, is put up for competition amongst naval officers by the Auto-Cycle Union as a memorial of his gallant death in the face of a vastly superior force of the enemy in HMS Defence during the early stages of the Jutland battle. The holding of this competition was first suggested by a member of the staff of The Motor Cycle. Of the competitors, Major WP Arbuthnot, RMLI, was a cousin of the late Sir Robert, and entered, so he told us, for the ‘honour of the family’. Lieut Terence Back, RN, was nephew of the late Captain Back, RN, who perished in HMS Natal owing to an internal explosion with all on board. Sub-lieut CP Glen-Kidston, RN, served with Sir Robert in HMS Orion, as a midshipman…Starting early on a new make of two-stroke, complete with clutch and kick-starter, the 2¾hp Villiers-engined Ruffles, we made a good run to Merrivale, where we stopped each competitor and gave him his instructions as to the consistent driving

1919 ARBUTHNOT1
“Left: An involuntary stop on the maors near HoLne. Right: Sub-Lt GP Glen-Kidston (3½hp Sunbeam), snapped on a pretty section of the course between Two Bridges and Huccaby.”

test. Each man had, to descend from this point to Mr Loughborough, who sent him off when the road was clear…Lt Marriott (Norton) arrived with his face bespattered with oil, as he had forgotten to screw up the oil tank filler cap. Early among the competitors there arrived the Rev EP Greenhill in one of the 1920 Matchless sidecar outfits, with CE Cuffe (a pre-war trials competitor) as passenger. Mr AV Ebblewhite, who was a passenger in Mr Loughborough’s Morgan, took the times…Plenty of sheep and cattle were encountered on different parts of the course…a V bend followed by a pitch of 1 in 6 spoiled the hitherto clean sheets of several of the competitors. Near Bovey, Sub-Lt Pollock (Harley-Davidson) completely smashed up his mount on a downgrade through the brakes failing to act. Fortunately, he escaped without injury. This news was brought by Rex Mundy, who was driving a Matchless outfit, and was supervising the arrowing of the course. Onwards from Moretonhampstead to the luncheon stop at Exeter all was plain sailing. After lunch the road was rough and rutty, and there was an exceedingly tricky section between Tedburn St Mary and Moretonhampstead. This consisted of Brook Hill, which necessitated the negotiation ol a watersplash, a long steep ascent from Clifford Bridge, and a precipitous and very tricky descent with very rough surface before the main road was reached…the road near Lee Moor Clay Works was distinctly greasy. Here Lt. Derek-Stephens (3½hp spring frame Douglas) had a bad side-slip, which was hard luck, as he

1909 ARBUTHNOT2
“Left: Sub-Lt RN Everett (4hp Triumph) in the consistent driving test on Dartmoor. Right: Lt W Derek-Stephens (2¾hp Douglas) and Sub-Lt CL Laurie (P&M) on a hill near Huccaby.”

damaged his footrest. This he was allowed to have made usable…The gem of the morning proved to be Deiiham Bridge, a steep hill with a fairly good surface and a gradient of about 1 in 4½. Most of the survivors made good ascents. Near Looe some steep hills had to be climbed; their surface was good, but on the summit of one there was a short patch of real grease, which fetched Laurie off his machine—his second fall that morning. After a splendid run from Bodmin we came upon the leaders, and were almost within hale of Merrivale, where the deciding test was to be held, when just on the moors our petrol supply gave out, but just afterwards a good Samaritan came along in a pony cart and asked our trouble. On hearing of our empty tank he volunteered to drive home and get the much-needed fuel, and in half an hour he returned mounted on the pony and with a two-gallon tin of benzole slung round his neck. We then set out for Plymouth through Horrabridge, and met the competitors again at Yelverton, whence they proceeded to the last check after a long down-hill run. So ended one of the best and most sporting trials ever organised, a trial which was highly appreciated by the competitors and organisers The former, as one would anticipate, were the best sportsmen it was possible to find. Several were complete novices, and yet not one of them complained of the task set him—a task which was harder perhaps than was reasonable. Still, the survivors have the satisfaction of having come through a trial worthy of the most skilled experts. Results: 1. Lt ESK Evans-Greaves, RN (4 Triumph), winner of the Arbuthnot Trophy, silver medal, and special award offered by the MCC, no stops and fifth best performance in the consistent driving test. 2. Lt Terence Back, RN (4 Triumph), silver medal, no stops and seventh best periormance in CDT. 3. Sub-Lt RN Everett, RN (4 Triumph), one stop and best performance in CDT.”

1919 ARBUTHNOT3
“First and second in the Arbuthnot Trophy Trial. (Left) Lt ESK Evans-Greaves (4hp Triumph), the winner of the trophy. (Right) Lt H Terence Back (4hpTriumph), who made the second best performance.”

‘WHIMSICAL’ DOESN’T BEGIN TO DESCRIBE Ixion’s review of the Arbuthnot Trophy Trial: “I do not doubt that the lieutenants who contested the Arbuthnot Trophy were up to all the wiles of Jerry, and could deduce volumes from the cock of a periscope. The trouble was that on the morning of the first day they failed to realise that Von Hipper and Von Scheer were babies compared to Secretary Loughborough, and that the modern reliability trial is founded on the strategic principles of Clausewitz. Thus, at, the start, some of them complained bitterly that they were strictly limited to a schedule of 20mph maximum. They informed sundry armletted officials that in naval motor-cycling circles legal limit riding simply is not done. Mr Loughborough spread a pair of grimy and deprecating palms, and spoke vaguely of the law. Fuming but helpless, the ‘sporty boys’, as [comic actor] WH Berry would term them, fidgeted along at twenty for an hour and a half along main roads. By this time Loughborough had accomplished his fiendish purpose. He had hoodwinked the innocents into fancying that a reliability trial was a tea party. So he now proceeded to switch them down an innocuous-looking little turn near Huccaby, and for the next 150 minutes all the riders were risking their necks in order to keep inside maximum time; and maximum time spelt no higher average than a measly 18mph. Even at this some of them were slow in tumbling to the situation. After a prolonged spasm of goat tracks, cat-crawls, chicken ladders, moor gates, river beds, and greasy ailes beneath arching trees, they emerged into lanes—well, quite 8ft broad, with occasional straights of—well, quite sixty yards at a time. Quoth the greenhorns to themselves, the arch-devil who planned this sporting course must have just about exhausted his supply of freak hills; presently I shall emerge into lovely main roads, when I will blind some, and catch up the twenty minutes I have dropped on schedule time. But the relentless minutes passed, and still the arrows led on down twisty lanes, and around blind corners, obsessed with carts of hay and eke of timber, with army corps of frisky lambs, and giant stallions and nervous bullocks. Finally, real anxiety was begotten, caution was thrown to the winds, and alarmed competitors commenced the usual ACU TT stunt, with frenzied accelerations down every trumpery straight of a hundred yards, and crashing on of brakes at the next corner. Then Secretary Loughborough produced the ace and king of trumps, in the form of tempting straights leading up to unostentatious arrows which hauled us back round V corners to face vertical ascents loosely covered with metal, road, assorted, unrolled, samples. By lunch time the entire entry had conceived profound suspicions of the man Loughborough. All of them knew what the seasoned competition rider learnt under the same astute tuition yearsago. Which precious knowledge may be summed up somewhat as follows: 1. Do 30mph average while you can—roads are coming where no man may exceed 12mph and live. 2. Blessed is the man who can drop from 50mph to 3mph in eight yards. 3. A quick gear change, yea from top to bottom, secureth a gold medal—but he of clumsy hands must be content with a parchment certificate. 4. The valley roads are pleasant; but their sides are fringed with fearsome precipices; and thither the next arrow will assuredly point. 5. Good going never lasts in an ACU trial. 6. Despise not the short straight; along it thou canst save seconds which may hereafter be precious. 7. But bear in mind that the next corner turneth back upon itself; and around it lurketh danger.”

“A REPORT FROM WASHINGTON, USA, states that very few, if any, motor cycles will be sold by the US War Department at public sales.”

“THE FUEL DEPARTMENT OF THE AUTOMOBILE ASSOCIATION and Motor Union have issued a decidedly useful handbook, giving the names and addresses of 1,100 firms stocking benzole. It is classified in geographical sections to facilitate quick reference, and will be appreciated by touring motor cyclists who desire to encourage the production of home-produced fuel.”

1919 PRECISION VTWINS
The Precision engine range was revamped for the post-war market with three new twins: air-cooled 964 and 1,096cc and, for the cycle-car sector, water-cooled 1,096cc. The three twins differed only in size, cooling system and magneto drive; the twin cam wheels of previous designs were replaced by a single gear wheel. The Blue ‘Un opined: “There is little of a startling nature in these new model Precision engines, but, produced as they are by a firm of the widest experience, they impress us as being of sound commensense design, and of such construction that there is every promise of great satisfaction on the part of the user.”

“OUR LAST EXPERIENCE WITH A MATCHLESS sidecar outfit was in the spring of 1918, when a military model, of the type ordered by the Russian Government, was placed at our disposal by Messrs Collier and Sons, Ltd…The 1920 outfit is a very different proposition…it is a vastly superior affair. It possesses three very notable innovations— the spring frame, the kick starter-operated exhaust lift, and a single-lever carburetter, all very important features in motor cycle construction. It is the first motor cycle we have driven since 1903 which has not had an exhaust lifter on the handle-bar. The engine is controlled by the throttle spark alone, and the exhaust valves are raised for starting by means of a cam on the inner side of the kick starter quadrant, which, on the pedal being depressed, comes in contact with a trip on the exhaust lifter arm, which is hinged on a bolt at the base of the gear box. The valves remain raised during one-third of the quadrant’s travel, the trip then slips off the cam, and the valves are dropped just at the correct moment. Also the engine may be stopped by depressing the pedal…The saddle tube is extended below the level of the bottom bracket and terminates in a lug from which runs a short stay to steady the forward chain case, while the other side of the lug serves to hold one of the six sidecar connections…the springing of the frame is particularly well carried out…the sprung portion forms practically a triangle and…includes the luggage carrier, while the unsprung portion forms practically a rectangle…Vertical coil springs take the road shocks between the sprung and unsprung portions of the frame. Every joint in the spring frame is provided with lubricators situated at convenient points, and the tubes are drilled to conduct the oil directly to the bearings. Control is carried out mainly by the throttle, which, with the front brake lever, are the only two on the handle-bar. The clutch is actuated by a rocking pedal, which is peculiar to Matchless motor cycles, while the excellent internal expanding brake is controlled by two pedals conveniently placed one on each of the two spacious and comfortable footboards. In our opinion, it would be very much better to separate these two pedals, and arrange for the nearside one to withdraw the clutch. The clutch is smooth in action and requires no effort, and, being indestructible, can be freely used…thye sidecar wheel is also sprung; the wheel is carried on horizontal forkes hinged at both ends…A Lucas combined magneto and dynamo is fitted, and we can say from experience that it works excellently in its dual capacity. We took the machine for its first drive in the dark, and the lamps gave a splendid light…On the whole we are immensely pleased with’ the latest Matchless production, which is the result of the labours of two practical motor cyclists.”

1919 MATCHLESS COMBO
“The spring frame Matchless fitted with 8hp JAP engine. The new Matchless sidecar is roomy. The kick-starter with automatic exhaust valve lifting mechanism. The clutch pedal.”

“SCOTTISH SIX DAYS: THE ASCENT of Applecross is much better than in 1914, owing to the fact that the large tufts of grass, which so deadened the effect of the engine, have been removed. The competitors will encounter many stretches where the roads have been cut up by tractors hauling timber. These patches are almost impossible for the solo rider, and necessitate miles of low gear work, possibly with a toss or so into the ditch.”

“A HIGH AVERAGE SPEED: AN INSTANCE in which the speed and reliability of the motor cycle, in the hands of an expert, was employed in the service of the illustrated press is recorded in connection with the rapid publication of the Versailles Treaty photographs by a Scottish paper. The plates were brought from Paris to London by aeroplane, and then carried to Glasgow by AJ Sproston on a Lea-Francis. The journey was made with only two replenishment stops, and his average speed is reported to have exceeded 40mph”.

TWO STORIES APPEARED ON THE SAME PAGE of The Motor Cycle, concerning the lads who came home from the war, and their comrades who didn’t: “A meeting of prominent Midland motor cyclists was held last Friday evening in Birmingham to consider the question of organising some form of welcome home for the many motor cyclists who had joined the Forces…no doubt a successful event will be organised.” “A memorial service in memory of those motor cyclists who gave their lives in the great war 1914-19 was held at St James’s, Piccadilly, on Friday of last week…Among the congregation were numerous despatch riders in uniform.”

1919 US TRACK RACE
“In America the sporting side of motor cycling is more frequently centred in track racing than in trials such as we hold. Pure speed work fascinates the Americans more than reliability, hence the numerous racing tracks in that country. The photograph gives a good impression of a sidecar race held recently in Wheeling, West Virginia.”

“THE HUMBER CO HELD THE FIRST of what may be many trials organised by large manufacturers to encourage their workmen to become motor cyclists and to foster goodwill between employer and employee. Such events should have far-reaching effects, for they bring the men, who actually make motor cycles, into direct touch with the conditions under which they are developed. We commend the excellent idea to other large employers of labour, and such events need not be confined to manufacturers of motor cycles.” More than 50 riders, many of them novices, tackled a 77-mile course that started at finished at Humber’s Coventry works. There were no ‘freak’ hills but the ‘stop and restart’ test on Edge Hill gave the newcomers a chance to test their mettle. While 37 competitors rode Humbers other marques were represented, including “a rejuvenated single-cylinder Rex looking very smart in its all-black finish and _gold lines, a 1919 3½hp Sunbeam, several Triumphs, countershaft, three-speed hub, and single gear models, and a 3hp Enfield. “Sir Arthur Whitten-Brown, one of the Atlantic flight heroes, was a guest; the tea stop was at Newnham, to which place the Humber band was sent in a lorry to render musical selections on the village green…As was to be expected, the majority of the competitors failed, through inexperience, in the stopping and restarting test on Edge Hill, but it was pleasing to see the sporting spirit prevailing among both officials and riders.”

1919 HUMBER TRIAL
“The start of the Humber staff trial on Saturday last. (Right) F Yates (3½hp Humber sidecar) in the stopping and restarting test.”

“OUR experiences of the four-cylinder Henderson motor bicycle of the 1914 and 1915 models have been so delightful that it was with considerable pleasure that we heard that the first batch of 1919 models had arrived in this country…The Henderson stands almost alone ; it is the first real novelty in motor cycle design which has come over from America. It is so fast that when the rider suddenly opens the throttle he has to grip the handle-bars tightly to stop himself from shooting off the back of the saddle, and yet it is so docile that it can be driven with comfort in the thickest London traffic. The new model is of extremely attractive design, being finished in khaki and having little plating work about it. As regards novel details mention must be made of the excellent spring forks, which are provided with a triple crown of immense strength. The Berling ignition system is quite separate from the dynamo lighting set…which generates from two to four amperes at 20 to 35mph…the storage battery is carried in a neat case under the saddle, which can be swung sideways to allow the engine to be removed from the frame without disturbing the electrical equipment or disconnecting the battery switches or wires. The battery is of the well-known Exide pattern. A genuine Klaxon horn and an ammeter complete the equipment. A much larger flywheel with a multiple-disc clutch built into it running in oil is now fitted, and the three-speed gear box is integral with the crank case. The change-speed gear is provided with an interlocking device, which prevents the lever from being moved until the clutch is disconnected—a very common practice on American motor cycles.”

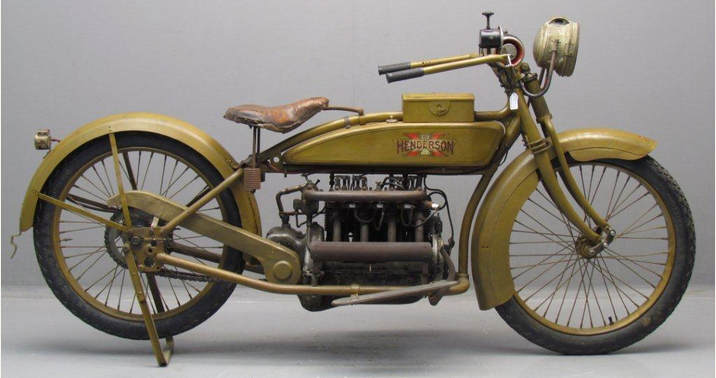

1919 HENDERSON4
“The model Z2 electrically-equipped Henderson.” This centenarian example is still in action.

“A NEW MOTOR BICYCLE, UNKNOWN to the motor cycle public, came unexpectedly into our hands at Plymouth on the occasion of the Arbuthnot trophy. This is known as the Ruffells, and is sold by the Ruffells Imperial Bioscope Syndicate, Ltd, 8-9, Long Acre, WC2. It is fitted with a 2¾hp Villiers engine and a Burman two-speed gear box, incorporating a clutch and kick starter…We cannot speak too highly of the Burman two-speed gear and clutch, which took up the drive smoothly and effectively, and several times restarted the machine on the most appalling gradients. The little engine ran well, and the machine was quite comfortable. The chief criticisms we have to make refer to the smallness of the petrol tank, and the fact that the heel brake pedal is too near the clutch spindle. Otherwise the Ruffells pleased us extremely well, and satisfactorily accomplished the difficult task it was asked to perform.”

1919 RUFFELLS
The Ruffells lightweight went straight from the factory to the Arbuthnot Trophy Trial and, once it had loosened up, performed well.

“the Automobile Association has initiated a unique service for motorists by equipping first aid sidecars which will assist members stranded with broken-down motor cars or motor cycles. These machines have been specially designed to carry a very complete equipment, enabling light repairs to be done ‘on the road’, thereby avoiding the inconvenience and delay involved in towage to garages for repairs or obtaining assistance from distant repairing establishments. In addition to tools, a large assortment of small but important accessories and supplies enable the drivers of these machines, all of whom are competent mechanics, to carry out tyre repairs and to make replacements of faulty connections, wires, etc, causing breakdowns. The services of these machines and their drivers are entirely free to members of the AA. The carrier is divided into two main compartments. The front portion carries the large items, such as petrol, benzole, oil, water, car jack, and the tyre inflator, all ingeniously clipped or strapped in place. At the rear are two drawers divided into small compartments of various dimensions, and fitted with clipped-on covers in which the small articles in the equipment are carefully and compactly arranged to enable the driver-mechanic to find what he requires expeditiously. The side-carriers are painted with the familiar A.A. yellow, and indicate their ‘mission’ to stranded members by the prominent description ‘Mechanical First Aid’, supplemented by a large AA badge.”

1919 AA RESCUE COMBO
“One of the sidecars used by the AA to assist members in distress.”

“THE OTHER DAY,” IXION WROTE, “I had a chance to make extended tests of one of the machines which are as truly modern as the Bolsheviks, and not merely refined reincarnations of our oldest friends. It was all that it has been called, so far as pace and performance were concerned…the most virile thing about the machine was its acceleration, which I demonstrated frequent and free to sundry enthusiastic spectators for several days. The tread of my back tyre not unnaturally displayed resentment; when you bang open the throttle of a willing engine on a 10 to 1 gear on a 1 in 10 hill with a surface resembling those nice little white chips some mourners sprinkle inside grave kerbs, something has got to slip; and after your cush drive has wound itself up solid, there is not much slip in a chain…gadzooks and oddsboddikins, if we accelerate some of the 1919 machines as they deserve we shall all be treating our back tyres as cush drives.”

1919 PARIS TRIAL
“Scene at the start of the Paris-Rheims-Paris reliability trial organised by the Motor Cycle Club of France. British motor cycles figured prominently, carrying off nine of the ten awards in the solo class, the remaining one being taken by an Indian.”

“WHILE AT WAUCHOPE’S [A MOTOR CYCLE dealer in Fleet Street] the other day we came across an American motor cycle which is quite unknown in thi scountry. It is known as the Limited, and is manufactured by the Felbach Motor Co, of Milwaukee, Wisconsin. The particular model is stated to have been used by the Milwaukee police. In general appearance the machine is exceptionally American. It is fitted with a Schebler carburetter, neatly stowed away between the two cylinders, has overhead mechanically operated inlet valves, and a camshaft for each pair of valves. The raising of the exhaust for the purpose of releasing the engine compression is effected by a rotating camshaft through the twist handle and rod control. The machine is fitted with pedals, which are used for starting the engine. No details of this machine are available at the present time in this country.”

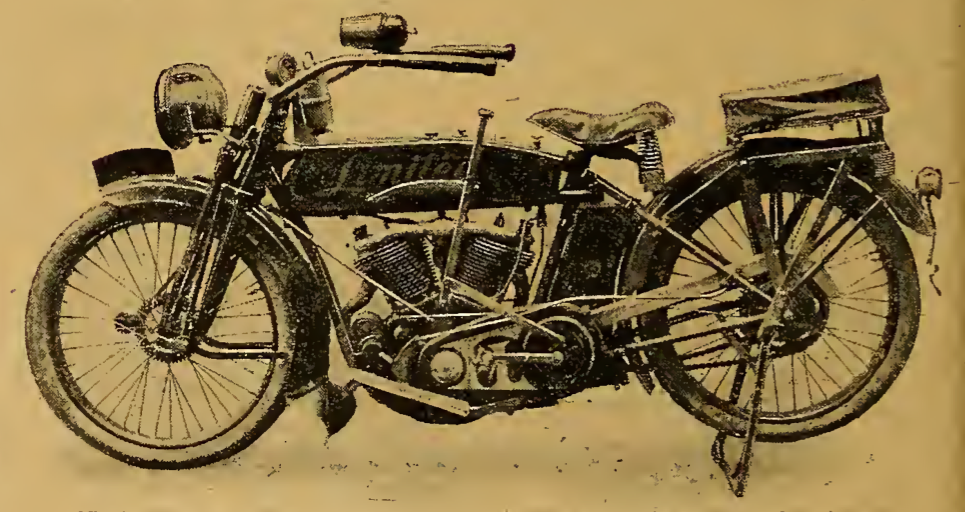

1919 LIMITED TWIN
The Limited (the name is thought to represent the bikes limited’ production] must have been old stock as Feilbach ceased production in 1915.

“THE PV MOTOR BICYCLE IS FAMOUS as being one of the first motor bicycles made with a spring frame. Its makers, Messrs. Elliston and Fell, Perry Vale, Forest Hill, SE, may therefore be regarded as among the pioneers so far as spring frames are concerned. Their latest pattern PV is a, nice looking, well fitted up, and thoroughly practical little mount. At the present moment it is made in the form of a lightweight, and is equipped with a 2¾hp Villiers engine and a Chater-Lea two-speed gear box, transmission being by combined belt and chain. The spring frame has been considerably improved in detail since Messrs Elliston and Fell have returned from serving their country in the army…The machine is suspended in front on Brampton biflex forks, an extra heavy chain is fitted, and the handle-bars are wide and comfortable. We tried the machine on the road, and found the springing to be excellent in every respect. There is no possibility of side play, the wheel is the only unsprung weight, and there is no doubt that it satisfactorily absorbs all serious road shocks.”

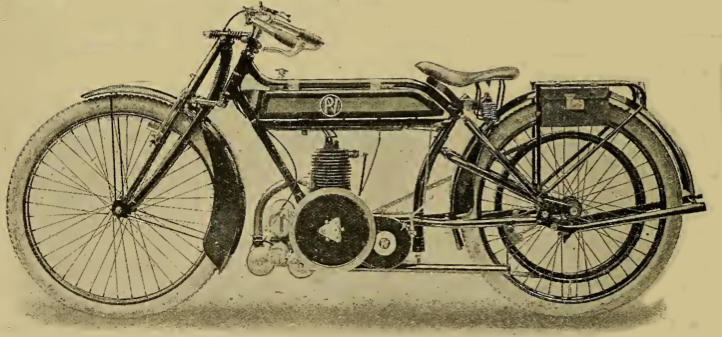

1919 PV SPRINGER
“The Villiers-engined lightweight PV with spring frame.”

“WE LEARN THAT MR MJ SCHULTE, FOR MANY YEARS a director of the Triumph Cycle Co, of Coventry, has resigned his position and will retire into private life. Thus an excellent sportsman retires from the motor cycle world, and he will be greatly missed, for he was a prominent figure in the leading competitions, particularly the Tourist Trophy Race, in which event he annually took the keenest possible interest. Mr Schulte’s faith in the future possibilities of the motor cycle never wavered, and he and his company proved a tower of strength in and around the dark period of 1904 and 1905, when the industry was tottering owing to the production of heavy high-framed machines, which were unpopular; moreover, the uninformed daily press did its utmost to kill the pastime for ever by the publication of damaging articles. At a later period, but long before the war, Mr Schulte recognised in the high-tension magneto the solution of ignition troubles,which were a real source of dissatisfaction with motor cycles in the early stages of their development, and endeavoured to establish manufacturing facilities in this country, but in this he met with little encouragement.”

“LT EC HILL, WRITING FROM LAHORE, INDIA, prophesies that the Japanese will soon be competitors in the motor cycle held. ‘Possibly we shall not be very long before the enterprising Japanese step into the breach, as they appear to have done in most lines. Motor cycle manufacturers at home are cutting their own throats by neglecting Overseas trade in this manner. The firm that first establishes itself out here with a good machine at a fair price would beat all comers.’”

“MESSRS THE ENFIELD CYCLE CO, LTD, 48, Holborn Viaduct, EC, on Peace Day, when the Victory March passed their showroom, had on view a suitable display demonstrating a feeling of loyalty and respect for those who, previously under their employ, have fallen in the war. Their names, numbering 200, were draped with both the American and British flags, and suspended over one of the Enfield motor cycles, which was decorated with the colours of the British Empire.”

1919 PEACE DAY
“In nearly every city the motor cycle played a prominent part on Peace Day. The picture shows a happy party of London motor cyclist sightseers.”
1919 VERSAILLES GRANDSTAND
“Motor cycles as a grandstand: French soldiers put their Triumphs to a novel use on the arrival of the plenipotentiaries at Versailles to sign the Peace Treaty.”

“THE ‘THREE-FLAG RECORD’ (IN WHICH the rider starts in Canada, crosses America, and enters Mexico) was recently lowered by ‘Hap’ Scherer riding a sports model Harley-Davidson flat twin. His time for the distance of 1,715 miles was 64hr 58min, the average speed for the run being 25.4mph.”

“RECENTLY A HAILSHAM MOTOR CYCLIST WAS SUMMONED at Enfield for exceeding the speed limit and for obstructing the police, the evidence being that after being timed and stopped he returned into the trap and warned other motorists to slow down. He was defended by the solicitor of the AA, and, while admitting the speed offence, the case of obstruction was resisted, a previous judgment of the Lord Chief Justice being quoted. The defendant was fined three guineas for exceeding the speed limit and the charge of obstruction was dismissed.”

“A NUMBER OF MIDLAND accessory manufacturers have combined to form the Associated British Manufacturers’ Syndicate, with the idea of developing trade in Canada and North Ameroca. These firms include the Sphinx Manufacturing Co, Powell & Hanmer, Terrys of Redditch, Accles & Pollock, Benton & Stone, Abingdon-Ecco, W&A Bates, Rotherham & Sons, and the makers of the Amac carburetter.”

1919 SUVA MCC
“One would imagine a tiny Pacific island to be the last place in which to find motor cycles and keen motor cyclists. But in the island of Suva, of the Fijian group, there is quite a live little club. The photograph sent to us by Mr H Lanyon shows with their owners an Ariel, Rudge, American Excelsior, and three Harley-Davidsons.”

“FOR THE SECOND TIME A DOUGLAS 2¾HP machine won the 350cc race in the recent Italian Grand Prix, while the fastest lap in the 500cc class was also accomplished by a flat twin. The Douglas was ridden by BajBadino, who rode a similar machine in the last TT, and, in addition to the Turin Municipality Trophy, is awarded the regularity prize by having a minimum difference of time between each lap. The winner of the 500cc class was Bordino, who rode a Motosacoche, and the regularity prize goes to Gianoglio on a Fongri, who also made the fastest lap time. The Fongri machine is an opposed twin of Italian manufacture, having a cubic capacity of 575cc on the standard models it has side-by-side valves placed on the top of the cylinders and operated by a single camshaft. Several other new Italian machines were in the race, including the twin-cylindered Delia Ferrera, with a 500cc engine having cylinders 68mm bore and stroke, and the Bianchi, with a V twin of 60x88mm. Another Italian classic motor cycle event is the Biella-Oropa, seven mile hill-climb, which was held recently between Biella (the Italian Manchester) and the convent at Oropa, a hill 3,870 feet above sea level, the length being seven miles…The Maffeis machine, winner of the 350cc class, has a JAP V twin racing engine, with overhead valves, and a chain-cum-belt drive through an Albion two-speed gear. The engine dimensions are 60x60mm. bore and stroke…The machine which is most eagerly awaited by the buying public is the Fongri. This is a 4hp flat twin following the lines of the Douglas engine, equipped with three-speed gear, enclosed chain transmission, hand-controlled clutch, and kick-starter. The frame and spring forks, however, are not in accordance with English ideas, since the former is constructed of bent tubes and the latter are the usual Italian pattern.”

1919 ITALIAN HILLCLIMB
From the left: “Acerboni (Frera), winner ot the 500cc class, Biella-Oropa hill-chmb. Maffeis, winner of the 350cc class at the Italian hill-climb [Douglases were second, third and fourth]. Meldi (Borgo), who made fastest time of the day at the Biella-Oropa event.
“THE BEST SUPPORTED EVENT since trials were restarted was the Essex Motor Club’s speed test run off at Southend…there were 237 motor cycle and ninety car entries…The Essex MC put forward strenuous efforts to run the tests with clocklike precision, but the weather entirely upset the programme. A strong westerly breeze blew down, the course in favour of the competitors, but rain fell just after the start, lightly at first, and then in torrents. In a few moments the course was unsuitable for solo motor cycles, so the car classes were run off, and thereafter some confusion and a good deal of delay followed…The motor cycle events were run in classes, and the results were based on the times made over the kilometre course…Among the competitors we were pleased to see Major Jack Woodhouse, DSO, who did such magnificent work in the war, Sgt Milner, the inseparables WA Jacobs and JP Le Grand, and that fine old sportsman FW Applebee. EJ Bass, lately returned from Germany, was clerk of the course. The results of the motor cycle events were as follows: Touring machines 250cc, F Thorpe (2¾hp Douglas), 47.82mph; touring machine 1,000cc, B Houlding (7hp Harley Davidson), 61.48mph; touring machines 500cc, H Le Vack (3½hp Edmund-MAG), 47.61mph; sidecar 1,000cc, B Houlding (Harley-Davidson), 47.61mph; touring machines 750cc, LA Cushman (6hp Zenith), 44.58mph; any solo 350cc, E Kickham (2¾hp Douglas), 60.16mph; touring sidecar 750cc, JR Pattison (4¼hp BSA), 34.86mph; any solo 500cc, JW Draper (3½hp Triumph), 61.13mph; touring sidecar 1,000cc, WJ Barker (8hp Henderson), 42.22mph; any solo unlimited, Capt O Baldwin (8hp Matchless), 69.92mph; motor scooters, HH Burrows (1½hp Skootamota), 18.5mph; any solo 1,000cc, E Remington (8hp NUT), 70.81mph.

1919 SOUTHEND SPRINT PATTISON
“JR Pattinson, 4¼ BSA sidecar, who won first prize in ‘750cc touring sidecar machines’.”
1919 SOUTHEND SPRINT MILNER
“A Milner (2¾hp shaft-chain-drive Diamond), JV Prestwich (2¾hp Diamond-JAP), and AE Wills (2¾hp Douglas) about to start in the 350cC solo race.”
1919 SOUTHEND SPRINT LE VACK
“H Le Vack (3½hp Edmund-MAG), first in ‘standard touring machine 500cc’; and Major J Woodhouse, DSO, MC (3½hp Norton), second in ‘any solo machine 750cc’.”

“DURING THE WAR PERIOD three experimental models of the Scott Sociable have been made and tested, and a new company, the Scott Autocar Co, Ltd, has been formed to manufacture the completed machine. This company has no interest in the Scott motor cycle, which will continue to be produced at Saltaire, by the Scott Motor Cycle Co, Ltd, which, with an issued capital of £80,000, has taken over the business of the Scott Engineering Co, Ltd. Incidentally, Mr Alfred A Scott being now devoted entirely to experimental work in connection with the Sociable, he has no longer any interest in the manufacture of the Scott motor cycle, either in a financial or advisory capacity.”

“ANZANI, THE FRANCO-ITALIAN ONE-TIME MOTOR CYCLIST, later an aviator, and now an engine designer, is responsible for an interesting motor cycle engine, in which the engine and two-speed gear box form a complete unit. The engine has two cylinders, 60x90mm, 508cc, and is said to develop 5-6 hp, and, in order to secure even torque both pistons are arranged to rise and fall together, the crank throws being side by side with the primary gear wheels between them…Overhead valves are worked from a camshaft, the valve mechanism following aviation practice…In view of the success of Anzani with his aviation engines, it is reasonable to suppose his motor cycle engines will be well finished and efficient.”

1919 ANZANI ENGINE
Anzani launched a tidy unit-construction ohv 30° transverse V-twin.

DEWAR MANUFACTURING OF HOUNDSDITCH, London, E1 came up with a novel anti-theft device: a three-piece locking device, in steel or phosphor-bronze, to secure the gear lever in the neutral position.

“RECENTLY THE EDINBURGH MAGISTRATES had before them the question of licensing motor cycles and sidecars under the Hackney Carriage Acts, and decided that these were not suitable subjects for such licences. We should like to know the grounds upon which this decision was made.”

“MOTOR CYCLES, LTD: A PROSPECTUS, inviting the public to subscribe for shares recently appeared in several London and provincial papers. We feel it our duty to point out that, as we were unable to approve of the business methods of Messrs Rider Troward and Co, whose business, Motor Cycles, Ltd, is acquiring, we recently found it necessary to refuse the advertisements of that company. The prospectus in question was, presumably on that account, not offered to The Motor Cycle, but, had it been so offered, it would not have been accepted by this journal. The highly speculative nature of the investment, to use a mild expression, is apparent from the prospectus…Mr Troward says that the only limit to the profits of the company is the difficulty of obtaining machines fast enough…he stated that he has placed orders for over 4,000 machines which have been ‘accepted by the manufacturers’.”

‘CHINOOK’, WHO COVERED THE SCOTTISH Six Days’ Trial on the latest 3½hp spring-frame Douglas, reported: “The springing of the Douglas saved one from all those fatiguing spine jolts which make the Scottish Six Days, in particular, so tiring an affair for most of the performers…never again will this scribe tackle a six days’ trial on a rigid frame…The engine is an absolute gem. It hummed away like a little dynamo, and seemed to improve as the days passed—no vibration, no noise, just a faint hissing purr, which changed to a deep roar when the throttle was yanked open. Some tremendous averages were put up over long distances and bad roads with perfect ease and comfort—in fact, I have never ridden a machine in which time could be made up with such absolute effortlessness…The mechanical oiling system is foolproof. One merely needs to set the drip and leave it there…in spite of the atrocious, conditions, petrol consumption usually averaged out at about 55mpg…The hand clutch is delightful, and the new model will fill the bill for practically every rider, from the elderly potterer in search of maximum comfort and docility to the speed merdiant who wants something that will hold the road and ‘rev’ like nothing he has ever tried before.”

1919 DOUGLAS SPRINGER
Chinook, The Motor Cycle’s man at the SSDT, was mightily impressed by the springer Douglas.

BSA FACTORY TESTERS TOOK TO THE WATER to publicise the remarkable water resistance of the EIC magnetos which the factory had adopted as standard equipment. “Several stops and restarts were made in the water, and one machine, with no part of the engine unit out of the water except the cylinder and carburetter, was kept running for two minutes until it stopped from back pressure set up by exhausting under water. On being wheeled to the bank after one or two preliminary kicks to eject the water which spouted from the silencer and crank case release in great quantities it started up without difficulty. Indeed, none of the machines were put out of action, despite the fact that no special preparations were made, other than in one or two cases only, a coating of. grease had been applied to the carbon brush holder. For an hour the machines were splashing their way through the water, and at the end of that time they were all running perfectly and no misfiring was evident…EIC Magnetos, Ltd, are indeed to be congratulated, and their specialisation on motor cycle types is meeting with great success, the following firms having already commenced to fit this make, so we are informed: BSA, P&M, Levis, Douglas, Allon, Rover, Sunbeam, and Morgan.”

1919 BSA WATERSPLASH
“Any magneto manufacturer might well be proud of this demonstration of waterproofness.”

“The Scale two-stroke motor cycles enjoyed quite a good reputation for sturdy construction before war requirements compelled their temporary withdrawal from public notice. The makers, Roberts and Hibbs, Bank Street Works, Droylesden, Manchester, are now re-entering the field with a much improved model embodying the Precision 350cc two-stroke engine…The general appearance of the machine is very good, being finished in deep crimson, lined in black and gold with grey panelled tank.”

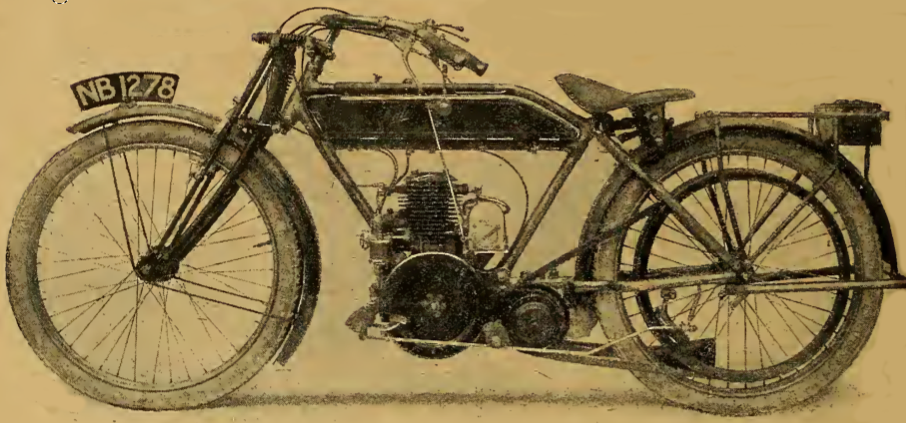

1919 SCALE PRECISION
Scale had been in business since 1906; for its first post-war model it switched from JAP to a 350cc Precision two-stroke.
1919 EXCELSIOR 8HP
Excelsior’s post-war combo was clearly aimed at the family market. Power was supplied by a 953cc 8hp JAP twin with a Sturmey-Archer gearbox; 6in of ground clearance was suitable for export markets; there was provision for a dynamo in front of the rear mudguard.
